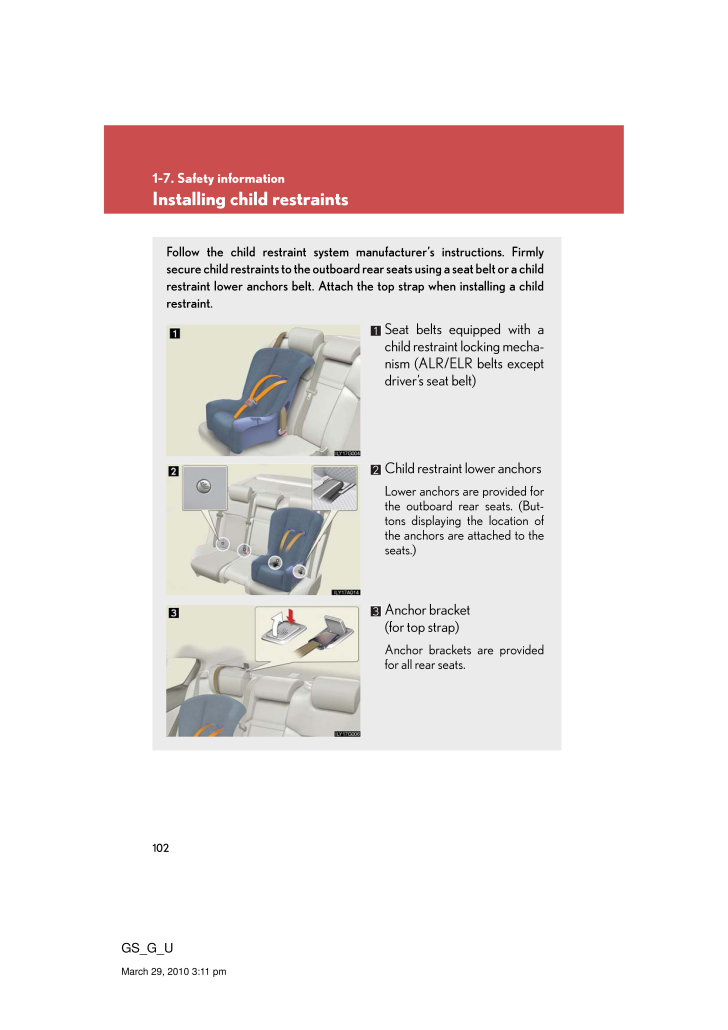

1021-7. Safety informationGS_G_UMarch 29, 2010 3:11 pmInstalling child restraintsFollow the child restraint system manufacturer's instructions. Firmly secure child restraints to the outboard rear seats using a seat belt or a child restraint lower anchors belt. Attach the top strap when installing a child restraint.Seat belts equipped with a child restraint locking mecha-nism (ALR/ELR belts except driver's seat belt)Child restraint lower anchorsLower anchors are provided for the outboard rear seats. (But-tons displaying the location of the anchors are attached to the seats.) Anchor bracket (for top strap)Anchor brackets are provided for all rear seats.
