1 .

5When trouble arises4635-2. Steps to take in an emergencyIf a warning light turns on or a warning buzzer sounds...Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.The following warning indicates a possible problem in the brak...

2 .

4645-2. Steps to take in an emergencyStop the vehicle immediately.The following warning indicates the po ssibility of damage to the vehiclethat may lead to an accident. Immediately stop the vehicle in a safe placeand contact your Lexus dealer.Have the vehi...

3 .

5When trouble arises4655-2. Steps to take in an emergencyFollow the correction procedures.After taking the specified steps to co rrect the suspected problem, checkthat the warning light turns off.Warning light Warning light/Details (U.S.A.) (Canada)ABS war...

4 .

4665-2. Steps to take in an emergencyWarning light Warning light/Details Correction procedure(On the center panel)Front passenger's seat belt reminder light(warning buzzer)*2Warns the front passenger to fasten his/her seat belt.Fasten the seat belt.Tire pr...

5 .

5When trouble arises4675-2. Steps to take in an emergency*1:Open door warning buzzer:→P. 476*2:Driver's and front passenger's seat belt reminders buzzer:The driver's and front passenger's seat belts reminder sounds to alert the driverand front passenger th...

6 .

4685-2. Steps to take in an emergency■If the malfunction indicator lamp comes on while drivingFirst check the following:●Is the fuel tank empty?If it is, fill the fuel tank immediately.●Is the fuel tank cap loose?If it is, tighten it securely.The lamp will...

7 .

5When trouble arises4695-2. Steps to take in an emergency■If the tire pressure warning system is inoperativeThe tire pressure warning system will be disabled in the following conditions:(When the condition becomes normal, the system will work properly.)●If...

8 .

4705-2. Steps to take in an emergencyCAUTION■When the electric power steering warning light comes onThe steering wheel may become extremely heavy.If the steering wheel becomes heavier than usual when operating, firmly hold andoperate it using more force t...

9 .

5When trouble arises4715-2. Steps to take in an emergencyCAUTION■Maintenance of the tiresEach tire, including the spare (if provided ), should be checked monthly when coldand inflated to the inflation pressure re commended by the vehicle manufacturer onthe...

10 .

4725-2. Steps to take in an emergencyNOTICE■Precaution when installing a different tireWhen a tire of a different specification or maker is installed, the tire pressure warn-ing system may not operate properly.

11 .

5When trouble arises4735-2. Steps to take in an emergencyIf a warning message is displayedStop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. The following warning indicates the possibility of da...

12 .

4745-2. Steps to take in an emergencyHave the vehicle inspected by y our Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. Failing to investigate the cause of the following warnings maylead to the ...

13 .

5When trouble arises4755-2. Steps to take in an emergency(If equipped)Indicates a malfunction in the headlight levelingsystem.Warning message Details

14 .

4765-2. Steps to take in an emergencyFollow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-tion display. After taking the spec ified steps to correct the suspectedproblem, check that the warning message turns...

15 .

5When trouble arises4775-2. Steps to take in an emergencyIndicates that the trunk is not fully closed. flashes and a buzzer sounds to indi-cate that trunk is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).Close the trunk.(Flas...

16 .

4785-2. Steps to take in an emergencyIndicates that engine oil level is low.Check the level of engine oil, and add if necessary.(U.S.A. only)Indicates that all mainte-nance according to the driven distance on the maintenance schedule* should be performed s...

17 .

5When trouble arises4795-2. Steps to take in an emergency*: Refer to the separate "Scheduled Maintenance" or "Owner's Manual Supple-ment" for the maintenance interval applicable to your vehicle.(If equipped)Indicates that intuitive parking assist is dirty ...

18 .

4805-2. Steps to take in an emergencyFollow the correction procedures.After taking the specified steps to co rrect the suspected problem, checkthat the warning light turns off.InteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce ⎯(Co...

19 .

5When trouble arises4815-2. Steps to take in an emergencyOnce 3 times(Flashing)Indicates that the driver's door has been opened or closed with the shift lever in P, the "ENGINE START STOP" switch in any mode other than OFF and the electronic key outside of...

20 .

4825-2. Steps to take in an emergency*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving thesignal from the key. (→P. 37)Once ⎯Indicates that a door...

21 .

5When trouble arises4835-2. Steps to take in an emergencyIf you have a flat tireRemove the flat tire and replace it with the spare provided.■Before jacking up the vehicle●Stop the vehicle on a hard, flat surface.●Set the parking brake.●Shift the shift leve...

22 .

4845-2. Steps to take in an emergencyTaking out the spare tireLift up the hook of the panel on thetrunk floor.Secure the panel using the hookprovided.Loosen the center fastener thatsecures the spare tire.STEP 1STEP 2STEP 3

23 .

5When trouble arises4855-2. Steps to take in an emergencyReplacing a flat tireChock the tires.Slightly loosen the wheel nuts (oneturn).Turn the tire jack portion "A" byhand until the notch of the jack is incontact with the jack point.STEP 1Flat tireWheel c...

24 .

4865-2. Steps to take in an emergencyRaise the vehicle until the tire isslightly raised off the ground.Remove all the wheel nuts and thetire.When resting the tire on theground, place the tire so that thewheel design faces up to avoidscratching the wheel su...

25 .

5When trouble arises4875-2. Steps to take in an emergencyInstall the spare tire and looselytighten each nut by hand toapproximately the same amount.Tighten the wheel nuts until thetapered portion comes into loosecontact with the disc wheel seat.Lower the v...

26 .

4885-2. Steps to take in an emergency■When using the compact spare tireAs the compact spare tire is not equipped with the tire pressure warning valve andtransmitter, low inflation pressure of the spare tire will not be indicated. Also, if youreplace the c...

27 .

5When trouble arises4895-2. Steps to take in an emergencyCAUTION●Use a jack stand if it is necessary to get under the vehicle.Take particular care when lowering the vehicle to ensure that no one working on ornear the vehicle may be injured.■Replacing a fla...

28 .

4905-2. Steps to take in an emergencyCAUTION■When the spare tire is attachedThe vehicle speed may not be correctly detected, and the following systems maynot operate correctly:●ABS & brake assist●VSC●TRAC●EPS●VDIM●Navigation system (if equipped)●Intuitive ...

29 .

5When trouble arises4915-2. Steps to take in an emergencyNOTICE■Do not drive the vehicle with a flat tire.Do not continue driving with a flat tire.Driving even a short distance with a flat tire can damage the tire and the wheelbeyond repair.■Be careful wh...

30 .

4925-2. Steps to take in an emergencyIf the engine will not startIf the engine will not start even though correct starting procedures arebeing followed (→ P. 140), consider each of the following points.■The engine will not start even when the starter moto...

31 .

5When trouble arises4935-2. Steps to take in an emergency■The starter motor does not turn over, the interior lights and head-lights do not turn on, or the horn does not sound.One of the following may be the cause of the problem.●One or both of the battery...

32 .

4945-2. Steps to take in an emergencyIf the shift lever cannot be shifted from PIf the shift lever cannot be shifted with your foot on the brake, there may bea problem with the shift lock system (a system to prevent accidental opera-tion of the shift lev...

33 .

5When trouble arises4955-2. Steps to take in an emergencyIf you lose your keysNew genuine Lexus keys can be made by your Lexus dealer using the otherkey and the key number stamped on your key number plate.

34 .

4965-2. Steps to take in an emergencyIf the electronic key does not operate properlyLocking and unlocking the doors, unlocking the trunk and key linked functionsUse the mechanical key built in to th e electronic keys to operate thedoors. (→P. 29)DoorsRemov...

35 .

5When trouble arises4975-2. Steps to take in an emergencyAfter the operation is completed,reinstall the cover. Hook the upper claw of the coveronto the upper catch on the vehi-cle side, and then push on thelower side of the cover.Make sure that the lower c...

36 .

4985-2. Steps to take in an emergencyStarting the engineShift the shift lever to P and apply the brakes.Touch the Lexus emblem side ofthe electronic key to the"ENGINE START STOP" switch.An alarm will sound to indicate thatthe start function cannot detect t...

37 .

5When trouble arises4995-2. Steps to take in an emergency■Stopping the engineShift the shift lever to P and press the "ENGINE START STOP" switch as you nor-mally do when stopping the engine.■Replacing the key batteryAs the above procedure is a temporary m...

38 .

5005-2. Steps to take in an emergencyIf the vehicle battery is dischargedThe following procedures may be used to start the engine if the vehicle'sbattery is discharged.You can call your Lexus dealer or a qualified repair shop.If you have a set of jumper (o...

39 .

5When trouble arises5015-2. Steps to take in an emergency■Avoiding a discharged battery●Turn off the headlights and the audio system while the engine is off.●Turn off any unnecessary electrical compon ents when the vehicle is running at alow speed for an e...

40 .

5025-2. Steps to take in an emergencyCAUTION■Avoiding battery fires or explosionsObserve the following precautions to prevent accidentally igniting the flammablegas that may be emitted from the battery.●Make sure the jumper cable is connected to the corre...

41 .

5When trouble arises5035-2. Steps to take in an emergencyNOTICE■To prevent damaging the vehicleDo not pull- or push-start the vehicle, because the three-way catalytic convertermay overheat and become a fire hazard.■When handling jumper cablesBe careful tha...

42 .

5045-2. Steps to take in an emergencyIf your vehicle overheatsIf your engine overheats:Stop the vehicle in a safe place and turn off the automatic airconditioning system.Check to see if steam is coming out from under the hood.If you see steam: Stop the en...

43 .

5When trouble arises5055-2. Steps to take in an emergency■OverheatingIf you observe the following, your vehicle may be overheating.●The engine coolant temperat ure gauge enters the red zone or a loss of power isexperienced.●Steam is coming from under the h...

44 .

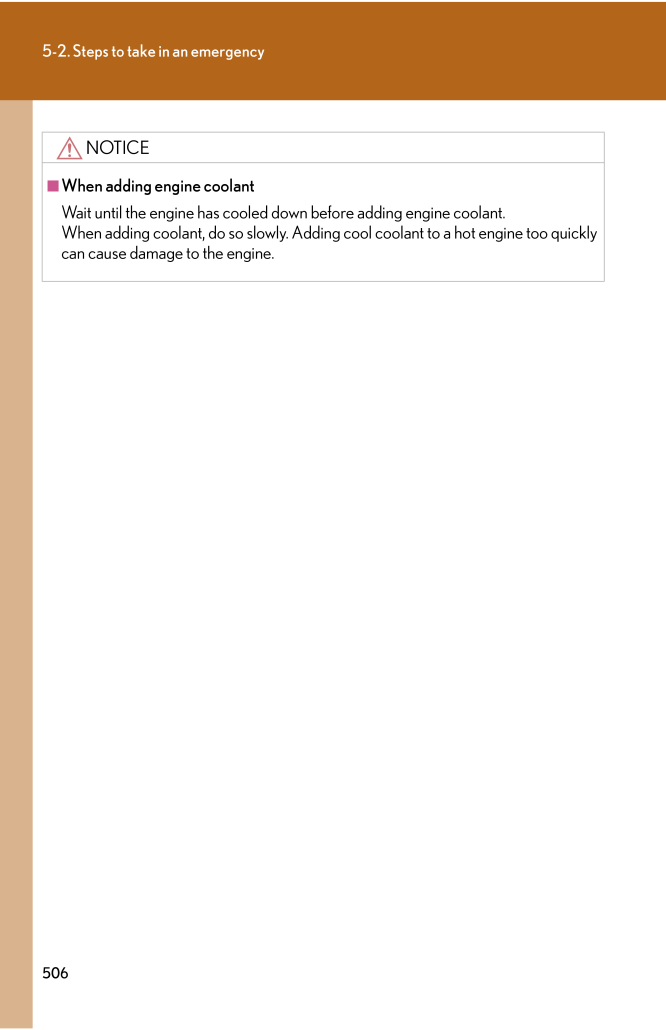

5065-2. Steps to take in an emergencyNOTICE■When adding engine coolantWait until the engine has cooled do wn before adding engine coolant.When adding coolant, do so slowly. Adding cool coolant to a hot engine too quicklycan cause damage to the engine.

45 .

5When trouble arises5075-2. Steps to take in an emergencyIf the vehicle becomes stuckCAUTION■When attempting to free a stuck vehicleIf you choose to rock the vehicle back and forth to free it, make sure the surround-ing area is clear, to avoid striking oth...

46 .
