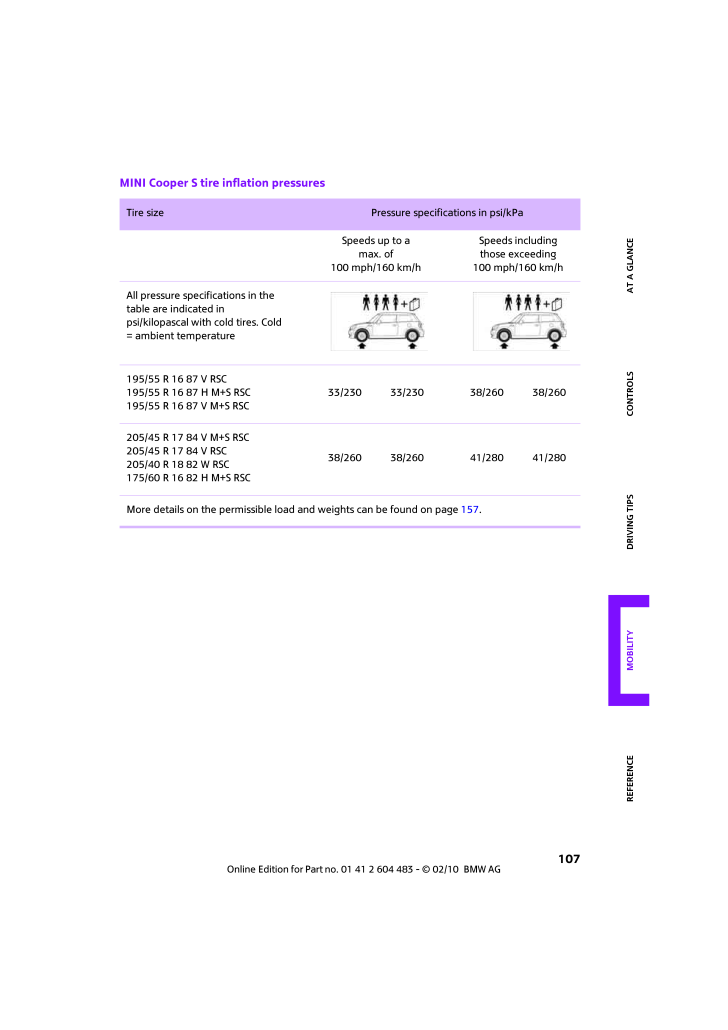

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 107MINI Cooper S tire inflation pressuresTire size Pressure specifications in psi/kPa Speeds up to amax. of 100 mph/160 km/hSpeeds including those exceeding 100 mph/160 km/hAll pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient temperature195/55 R 16 87 V RSC195/55 R 16 87 H M+S RSC195/55 R 16 87 V M+S RSC33/230 33/230 38/260 38/260205/45 R 17 84 V M+S RSC205/45 R 17 84 V RSC205/40 R 18 82 W RSC175/60 R 16 82 H M+S RSC38/260 38/260 41/280 41/280More details on the permissible load and weights can be found on page 157.
