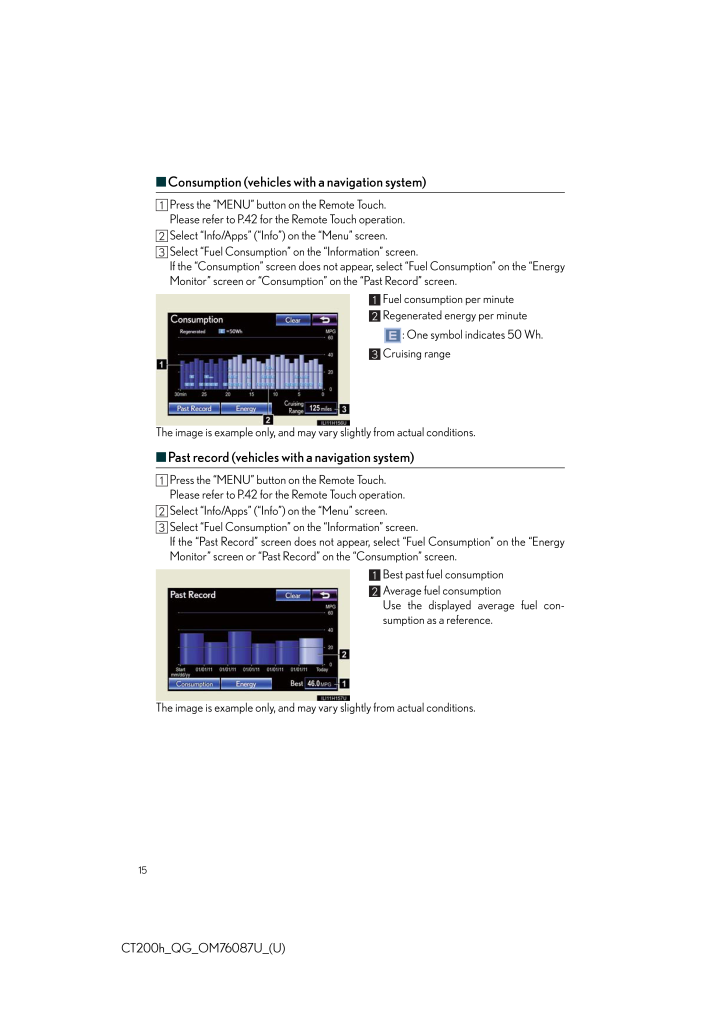

15CT200h_QG_OM76087U_(U)■Consumption (vehicles with a navigation system)Press the "MENU" button on the Remote Touch.Please refer to P.42 for the Remote Touch operation.Select "Info/Apps" ("Info") on the "Menu" screen.Select "Fuel Consumption" on the "Information" screen.If the "Consumption" screen does not appear , select "Fuel Consumption" on the "EnergyMonitor" screen or "Consumption" on the "Past Record" screen.Fuel consumption per minuteRegenerated energy per minute : One symbol indicates 50 Wh. Cruising rangeThe image is example only, and may vary slightly from actual conditions.■Past record (vehicles with a navigation system)Press the "MENU" button on the Remote Touch.Please refer to P.42 for the Remote Touch operation.Select "Info/Apps" ("Info") on the "Menu" screen.Select "Fuel Consumption" on the "Information" screen.If the "Past Record" screen does not appear, select "Fuel Consumption" on the "EnergyMonitor" screen or "Past Record" on the "Consumption" screen.Best past fuel consumptionAverage fuel consumptionUse the displayed average fuel con-sumption as a reference.The image is example only, and may vary slightly from actual conditions.
