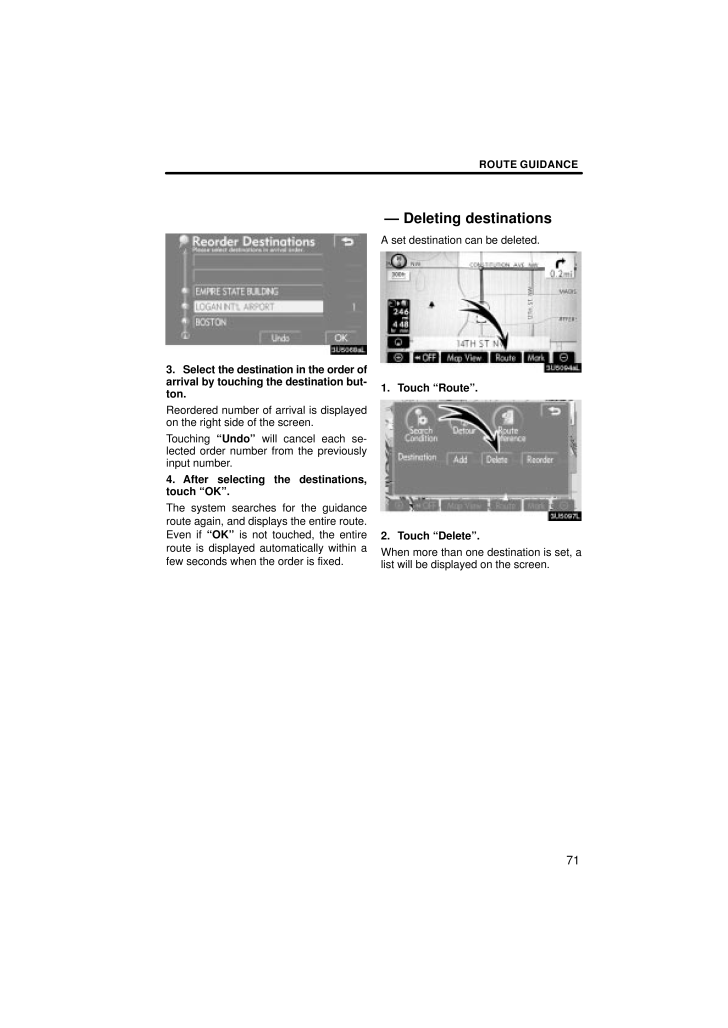

ROUTE GUIDANCE713. Select the destination in the order ofarrival by touching the destination but-ton.Reordered number of arrival is displayedon the right side of the screen.Touching "Undo" will cancel each se-lected order number from the previouslyinput number.4. After selecting the destinations,touch "OK".The system searches for the guidanceroute again, and displays the entire route.Even if "OK" is not touched, the entireroute is displayed automatically within afew seconds when the order is fixed.A set destination can be deleted.1. Touch "Route".2. Touch "Delete".When more than one destination is set, alist will be displayed on the screen.- Deleting destinations
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .SECTION 3ROUTE GUIDANC...SECTION 3ROUTE GUIDANCE63ROUTE GUIDANCERoute guidanceRoute guidance screen 65Typical voice guidance prompts 68Distance and time to destination 70Setting and deleting destination 71Adding destinations 70 . . . . . . . . . . . . . . . . . . . . . . . . . ...
-
2 .ROUTE GUIDANCE64During ro...ROUTE GUIDANCE64During route guidance, various types ofguidance screens can be displayed de-pending on conditions. Screen layout1Distance to the next turn and thearrow indicating turning direction2Current street name3Distance and travel/arrival time tothe ...
-
3 .ROUTE GUIDANCE65When appr...ROUTE GUIDANCE65When approaching a freeway exit orjunctionWhen the vehicle approaches an exit orjunction, the guidance screen for the free-way will be displayed.1Road/area name2Distance from the current positionto the exit or junction3Current position"OFF"...
-
4 .ROUTE GUIDANCE66Other scr...ROUTE GUIDANCE66Other screensTURN LIST SCREENOn this screen, the list of turns on the guid-ance route can be viewed.Touching during guidance displaysthe turn list.1Next street name or destinationname2Turn direction3Distance between turns4Current street na...
-
5 .ROUTE GUIDANCE67The voice...ROUTE GUIDANCE67The voice guidance provides various mes-sages as you approach an intersection, orother point where you need to maneuverthe vehicle.4.7 miles0.25 miles+a1"Proceed about 5 miles."2"In a quarter of a mile, rightturn."3"Right turn."4(Beep sound...
-
6 .ROUTE GUIDANCE68One- way ...ROUTE GUIDANCE68One- way roadOne- way road*: The system indicates a U-turn if the dis-tance between two one-way roads (of op-posite directions) is less than 50 feet (15m) in residential areas or 164 feet (50 m)in non-residential areas.1"In half of a mile, ...
-
7 .ROUTE GUIDANCE69When the ...ROUTE GUIDANCE69When the vehicle is on the guidance route,the distance and the estimated travel/arriv-al time to the destination are displayed.When the vehicle is not on the guidanceroute, the distance and the direction of thedestination are displayed.When...
-
8 .ROUTE GUIDANCE70Adding de...ROUTE GUIDANCE70Adding destinations and searching againfor the routes can be done.1. Touch "Route".2. Touch "Add".3. Input an additional destination inthe same way as the destinationsearch. (See "Destination search" onpage 39.)4. Touch the desired "Add" t...
-
9 .ROUTE GUIDANCE713. Select...ROUTE GUIDANCE713. Select the destination in the order ofarrival by touching the destination but-ton.Reordered number of arrival is displayedon the right side of the screen.Touching "Undo" will cancel each se-lected order number from the previouslyinput nu...
-
10 .ROUTE GUIDANCE723. Touch ...ROUTE GUIDANCE723. Touch the destination for deletion."Delete All": To delete all destinations onthe list.A message appears to confirm the requestto delete.4. To delete the destination(s), touch"Yes".If "Yes" is touched, the data cannot be re-covered.If "N...
-
11 .ROUTE GUIDANCE73The entir...ROUTE GUIDANCE73The entire route from the starting point tothe destination is displayed."Guide": To start guidance."Route": To change a route. (See pages70 and 72.)While the route guidance is operating, youcan change the route to detour around asection of...
-
12 .ROUTE GUIDANCE743. Select...ROUTE GUIDANCE743. Select the button below to select thedesired detour distance."1 mile (km)", "3 miles (km)" or "5 miles(km)": Touch one of these buttons to startthe detour process. After detouring, thesystem returns to the original guidanceroute."Whole ...
-
13 .ROUTE GUIDANCE75A number ...ROUTE GUIDANCE75A number of choices are provided on theconditions which the system uses to deter-mine the route to the destination.1. Touch "Route".2. Touch "Route Preference" tochange the conditions that determinethe route to the destination.3. Select the...
-
14 .ROUTE GUIDANCE76Points of...ROUTE GUIDANCE76Points of Interest such as gas stations andrestaurants can be displayed on the mapscreen. You can also set their location asa destination and use them for route guid-ance.1. Touch "Map View".2. Touch "Display POI Icon" to displaya particul...
-
15 .ROUTE GUIDANCE77Select th...ROUTE GUIDANCE77Select the desired POI categories.The selected category icon appears on thetop left of the screen.By selecting the desired POI category andthen touching "OK", the selected POIicons are displayed on the map screen.If the desired POI category...
-
16 .ROUTE GUIDANCE78To set a ...ROUTE GUIDANCE78To set a POI as a destinationYou can select one of the Points of Interesticons on the map screen as a destinationand use it for route guidance.1. Directly touch the Point of Interesticon that you want to set as a destina-tion.The map will s...
-
17 .ROUTE GUIDANCE79You can s...ROUTE GUIDANCE79You can scroll through the list of roads bytouching or . However, not all roadnames in the route may appear on the list.If a road changes its name without requir-ing a turn (such as on a street that runsthrough two or more cities), the n...
-
18 .ROUTE GUIDANCE80:To indic...ROUTE GUIDANCE80:To indicate the next destination.:To preview the route to the nextdestination.:To preview the route to the nextdestination in fast-forward mode.:To stop the preview.:To review the route to the previousdestination or starting point.:To revi...
-
19 .ROUTE GUIDANCE81"Record":...ROUTE GUIDANCE81"Record": To start recording the routetrace."Stop": To stop recording the route trace.If you touch "Stop" to display the followingscreen.Touching "Yes" stops recording and theroute trace remains displayed on thescreen.Touching "No" stops re...
