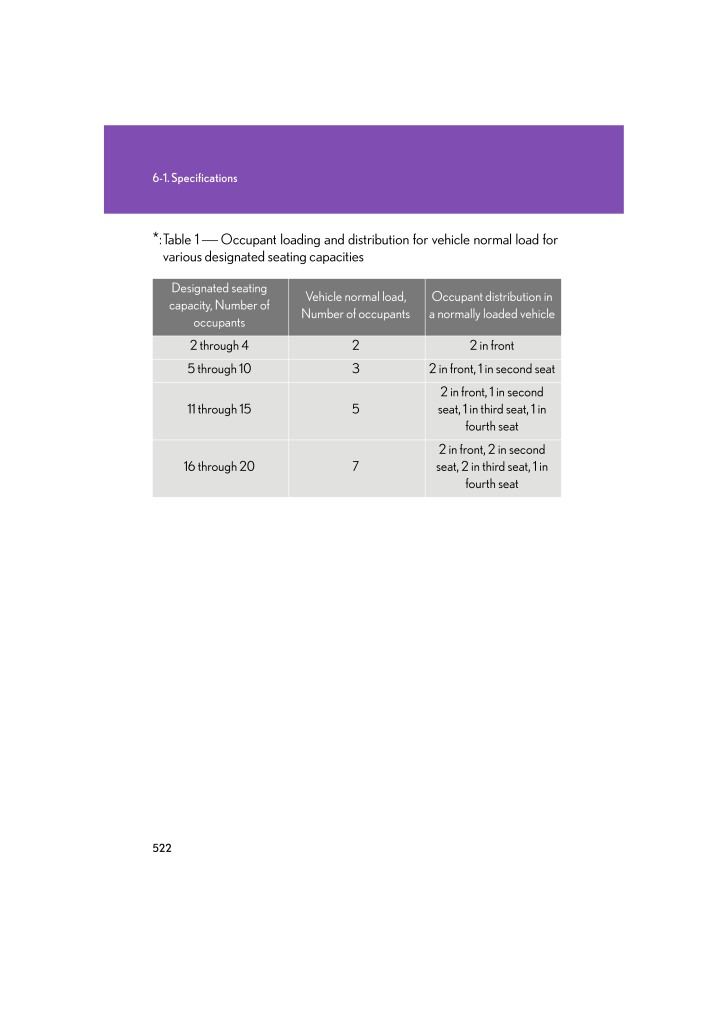

5226-1. Specifications*:Table 1 ⎯ Occupant loading and distributi on for vehicle normal load for various designated seating capacitiesDesignated seating capacity, Number of occupantsVehicle normal load, Number of occupantsOccupant distribution in a normally loaded vehicle2 through 4 2 2 in front5 through 10 3 2 in front, 1 in second seat11 through 15 52 in front, 1 in second seat, 1 in third seat, 1 in fourth seat16 through 20 72 in front, 2 in second seat, 2 in third seat, 1 in fourth seat
