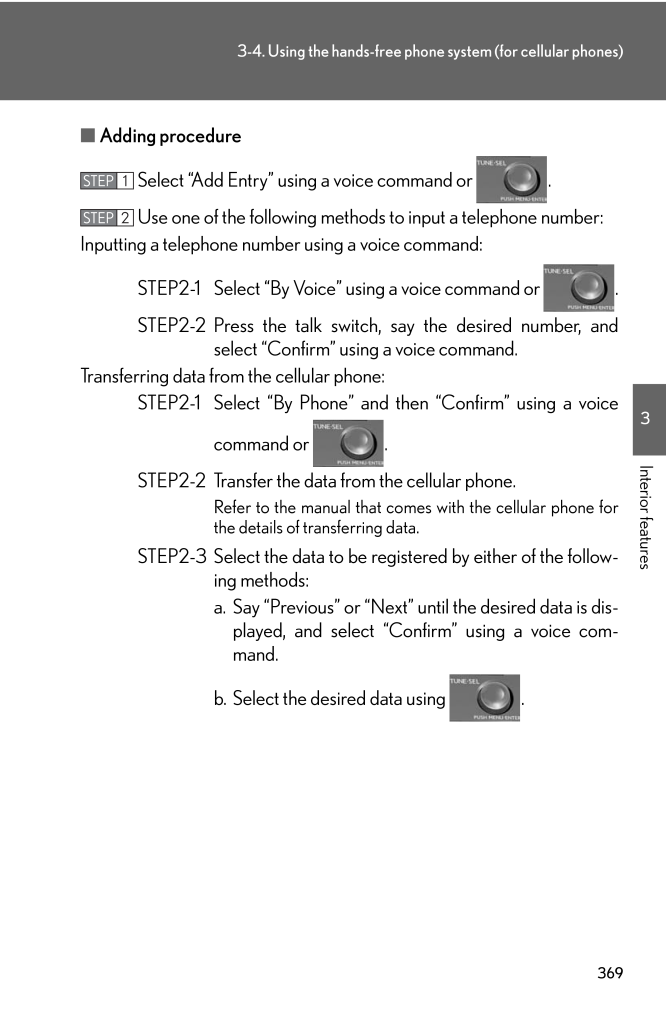

3693-4. Using the hands-free phone system (for cellular phones)3Interior features■Adding procedureSelect "Add Entry" using a voice command or .Use one of the following methods to input a telephone number:Inputting a telephone number using a voice command:STEP2-1 Select "By Voice" using a voice command or .STEP2-2 Press the talk switch , say the desired number, and select "Confirm" using a voice command.Transferring data from the cellular phone:STEP2-1 Select "By Phone" and then "Confirm" using a voice command or .STEP2-2 Transfer the data from the cellular phone.Refer to the manual that comes with the cellular phone for the details of transferring data.STEP2-3 Select the data to be re gistered by either of the follow -ing methods:a. Say "Previous" or "Next" until the desired data is dis -played, and select "Confirm" using a voice com -mand.b. Select the desired data using .
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .3423-4. Using the hands-f...3423-4. Using the hands-free phone system (for cellular phones)Hands-free system for cellular phonesThe hands-free system is a function th at allows you to use your cellular phone without touching it.This system supports Bluetooth(R) cellular phones. Blue...
-
2 .■Conditions under which t...■Conditions under which the system will not operate●If using a cellular phone that does not support Bluetooth(R)●If the cellular phone is switched off●If you are outside service range●If the cellular phone is not connected●If the cellular phone's battery ...
-
3 .3443-4. Using the hands-f...3443-4. Using the hands-free phone system (for cellular phones)■About Bluetooth(R)■Compatible modelsCompatible with HFP (Hands Free Profile) Ver. 1.5 and OPP (Object Push Profile) Ver. 1.1.If your cellular phone does not suppor t HFP, you cannot enter the...
-
4 .3453-4. Using the hands-f...3453-4. Using the hands-free phone system (for cellular phones)3Interior featuresCAUTION■FCC WARNINGChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Radio Fre...
-
5 .3463-4. Using the hands-f...3463-4. Using the hands-free phone system (for cellular phones)Using the hands-free system (for cellular phones)■Audio unitDisplay A message, name, phone number, etc. is displayed.Lower-case characters and special characters cannot be displayed.Displays...
-
6 .3473-4. Using the hands-f...3473-4. Using the hands-free phone system (for cellular phones)3Interior features■Steering wheel switchesVolumeThe voice guidance volume can -not be adjusted using this but -ton.Off-hook switch Turns the hands-free system on/starts a callOn-hook switch ...
-
7 .3483-4. Using the hands-f...3483-4. Using the hands-free phone system (for cellular phones)Operating the system using voice commandsBy following voice guidance instructio ns output from the speaker, voice commands enable to the operation of the hands-free phone system with-out the ...
-
8 .3493-4. Using the hands-f...3493-4. Using the hands-free phone system (for cellular phones)3Interior featuresUsing the hands-free phone system for the first timeBefore using the hands-free phone sy stem, it is necessary to register a cellular phone in the system. The system will en...
-
9 .3503-4. Using the hands-f...3503-4. Using the hands-free phone system (for cellular phones)Menu list of the hands-free phone system■Normal operationFirst menuSecond menuThird menu Operation detail"Callback" - -Dialing a number stored in the incoming call history memory"Redial" - -Di...
-
10 .3513-4. Using the hands-f...3513-4. Using the hands-free phone system (for cellular phones)3Interior features"Setup""Security""Set PIN" Setting a PIN code"Phbk Lock" Locking the phone book"Phbk Unlock" Unlocking the phone book"Phone Setup""Pair Phone"Registering the cellular phone t...
-
11 .3523-4. Using the hands-f...3523-4. Using the hands-free phone system (for cellular phones)■Using a short cut keyFirst menu Second menu Operation detail"Dial XXX (name)" -Dialing a name registered in the phone book"Phone book add Entry"- Adding a new phone number"Phone book Change n...
-
12 .■Automatic volume adjustm...■Automatic volume adjustmentWhen vehicle speed reaches 50 mph (80 km/h) or more, the volume automati -cally increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less.■When using a voice commandFor num...
-
13 .3543-4. Using the hands-f...3543-4. Using the hands-free phone system (for cellular phones)Making a phone call■Making a phone call●Dialing by inputting a number "Dial by number"●Dialing by inputting a name "Dial by name"●Speed dialing●Dialing a number stored in the outgoing histor...
-
14 .3553-4. Using the hands-f...3553-4. Using the hands-free phone system (for cellular phones)3Interior featuresDialing by inputting a numberPress the talk switch and say "Dial by number".Press the talk switch and say the phone number.Dial by one of the following methods:a. Press the o...
-
15 .3563-4. Using the hands-f...3563-4. Using the hands-free phone system (for cellular phones)When receiving a phone call■Answering the phonePress the off-hook switch.■Refusing the callPress the on-hook switch.Transferring a callA call can be transferred between the cellular phone and...
-
16 .3573-4. Using the hands-f...3573-4. Using the hands-free phone system (for cellular phones)3Interior featuresUsing the call history memoryFollow the procedure below to use a number stored in the call history memory:Press the talk switch and say "Redial" (when using a number stored ...
-
17 .■Call waiting●If your pho...■Call waiting●If your phone does not support HFP Ver. 1.5, this function cannot be used.●Call waiting operation may differ depend ing on your cellular phone and service provider.■Call historyUp to 5 numbers can be stored in each of the outgoing and incom...
-
18 .3593-4. Using the hands-f...3593-4. Using the hands-free phone system (for cellular phones)3Interior featuresSetting a cellular phoneRegistering a cellular phone in the hands-free phone system allows the sys -tem to function. The following functions can be used for registered cellu...
-
19 .3603-4. Using the hands-f...3603-4. Using the hands-free phone system (for cellular phones)Registering a cellular phoneSelect "Pair Phone" using a voice command or , and perform the procedure for registering a cellular phone. ( → P. 349 )Selecting a cellular phone to be usedSelect ...
-
20 .3613-4. Using the hands-f...3613-4. Using the hands-free phone system (for cellular phones)3Interior featuresChanging the registered name of a cellular phoneSelect "Change Name" using a voice command or .Select the name of the cellular phone to be changed by either of the following...
-
21 .3623-4. Using the hands-f...3623-4. Using the hands-free phone system (for cellular phones)Changing the passkeySelect "Set Passkey" using a voice command or .Press the talk switch, say a 4 to 8-digit number, and select "Confirm" using a voice command or .When the entire number to...
-
22 .■The number of cellular p...■The number of cellular phones that can be registeredUp to 6 cellular phones can be registered in the system.3633-4. Using the hands-free phone system (for cellular phones)3Interior features
-
23 .3643-4. Using the hands-f...3643-4. Using the hands-free phone system (for cellular phones)Security and system setup■Security setting items and operation proceduresTo enter the menu for each function , follow the steps below using a voice command or :●Setting or changing the PIN (Pe...
-
24 .3653-4. Using the hands-f...3653-4. Using the hands-free phone system (for cellular phones)3Interior featuresSetting or changing the PIN■Setting a PINSelect "Set PIN" using a voice command or .Enter a PIN using a voice command or .When using , input the code 1 digit at a time.■Ch...
-
25 .3663-4. Using the hands-f...3663-4. Using the hands-free phone system (for cellular phones)Setting voice guidance volumeSelect "Guidance Vol" using .Change the voice guidance volume.To decrease the volume: Turn counterclockwise.To increase the volume: Turn clockwise.Displaying ...
-
26 .■Initialization●The follo...■Initialization●The following data in the system can be initialized:*Phone book* Outgoing and incoming call history*Speed dials* Registered cellular phone data*Security code* Registered Bluetooth(R) enabled portable player data* Passkey for the cellular ph...
-
27 .3683-4. Using the hands-f...3683-4. Using the hands-free phone system (for cellular phones)Using the phone bookAdding a new phone numberThe following methods can be used to add a new phone number:●Inputting a phone number using a voice command●Transferring data from the cellular pho...
-
28 .3693-4. Using the hands-f...3693-4. Using the hands-free phone system (for cellular phones)3Interior features■Adding procedureSelect "Add Entry" using a voice command or .Use one of the following methods to input a telephone number:Inputting a telephone number using a voice command...
-
29 .3703-4. Using the hands-f...3703-4. Using the hands-free phone system (for cellular phones)Inputting a phone number using :STEP2-1 Select "Manual Input" using .STEP2-2 Input a phone number using , and press again.Input the phone number 1 digit at a time.Selecting a phone number ...
-
30 .3713-4. Using the hands-f...3713-4. Using the hands-free phone system (for cellular phones)3Interior featuresSelect the name to be registered by either of the following meth -ods, and select "Confirm" using a voice command or :a. Press the talk switch and say the desired name.b. S...
-
31 .3723-4. Using the hands-f...3723-4. Using the hands-free phone system (for cellular phones)Listing the registered dataSelect "List Names" using a voice command or . The list of the registered data will be read aloud. When listing is complete, the system returns to the "Phonebook"....
-
32 .3733-4. Using the hands-f...3733-4. Using the hands-free phone system (for cellular phones)3Interior featuresDeleting the registered dataSelect "Delete Entry" using a voice command or .Select the data to be deleted by either of the following methods, and select "Confirm" using a v...
