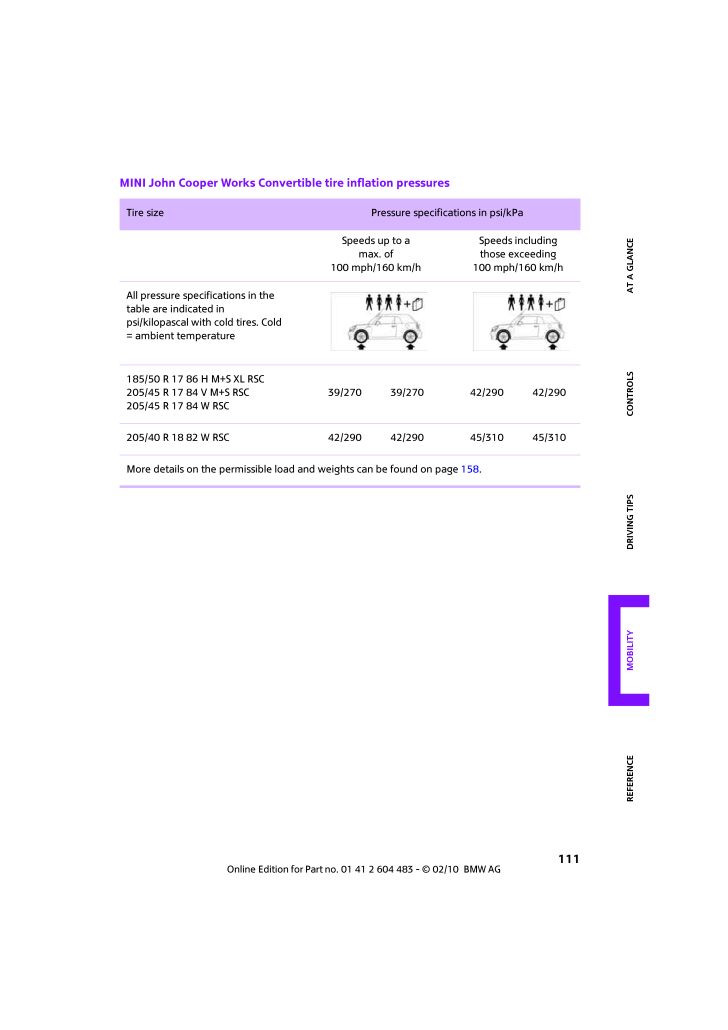

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 111MINI John Cooper Works Convertible tire inflation pressuresTire size Pressure specifications in psi/kPa Speeds up to amax. of 100 mph/160 km/hSpeeds including those exceeding 100 mph/160 km/hAll pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient temperature185/50 R 17 86 H M+S XL RSC205/45 R 17 84 V M+S RSC205/45 R 17 84 W RSC39/270 39/270 42/290 42/290205/40 R 18 82 W RSC 42/290 42/290 45/310 45/310More details on the permissible load and weights can be found on page 158.
