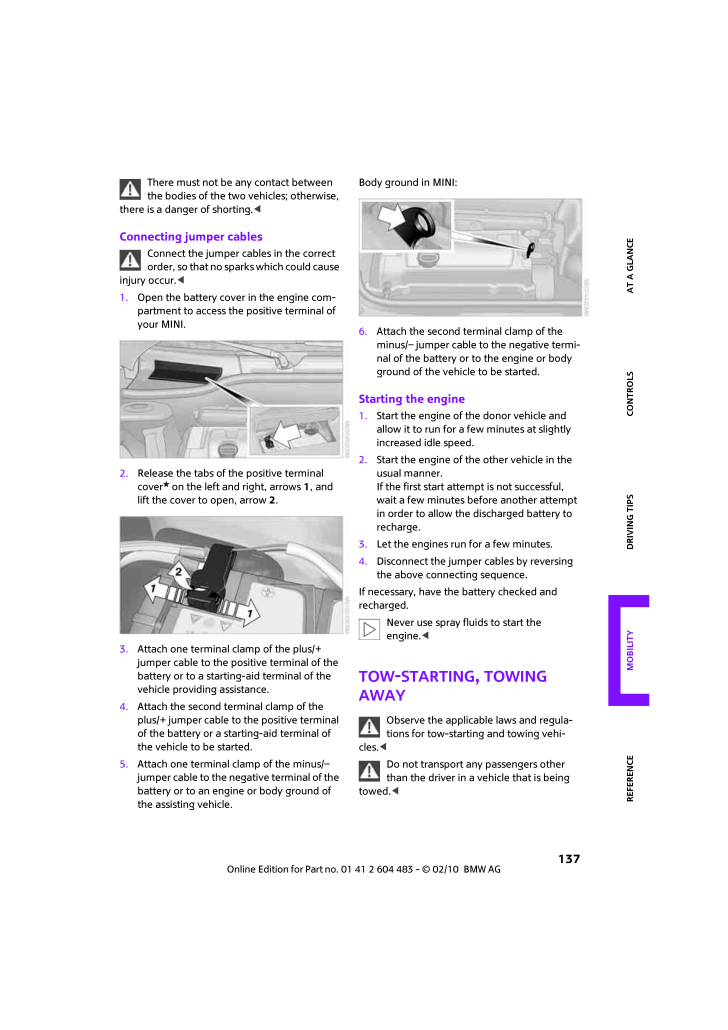

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 137There must not be any contact between the bodies of the two vehicles; otherwise, there is a danger of shorting. <Connecting jumper cablesConnect the jumper cables in the correct order, so that no sparks which could cause injury occur.<1.Open the battery cover in the engine com-partment to access the positive terminal of your MINI.2.Release the tabs of the positive terminal cover* on the left and right, arrows 1, and lift the cover to open, arrow 2.3.Attach one terminal clamp of the plus/+ jumper cable to the positive terminal of the battery or to a starting-aid terminal of the vehicle providing assistance.4.Attach the second terminal clamp of the plus/+ jumper cable to the positive terminal of the battery or a starting-aid terminal of the vehicle to be started.5.Attach one terminal clamp of the minus/- jumper cable to the negative terminal of the battery or to an engine or body ground of the assisting vehicle.Body ground in MINI:6.Attach the second terminal clamp of the minus/- jumper cable to the negative termi-nal of the battery or to the engine or body ground of the vehicle to be started.Starting the engine1.Start the engine of the donor vehicle and allow it to run for a few minutes at slightly increased idle speed.2.Start the engine of the other vehicle in the usual manner. If the first start attempt is not successful, wait a few minutes before another attempt in order to allow the discharged battery to recharge.3.Let the engines run for a few minutes.4.Disconnect the jumper cables by reversing the above connecting sequence.If necessary, have the battery checked and recharged.Never use spray fluids to start the engine.<Tow-starting, towing awayObserve the applicable laws and regula-tions for tow-starting and towing vehi-cles.<Do not transport any passengers other than the driver in a vehicle that is being towed.<
