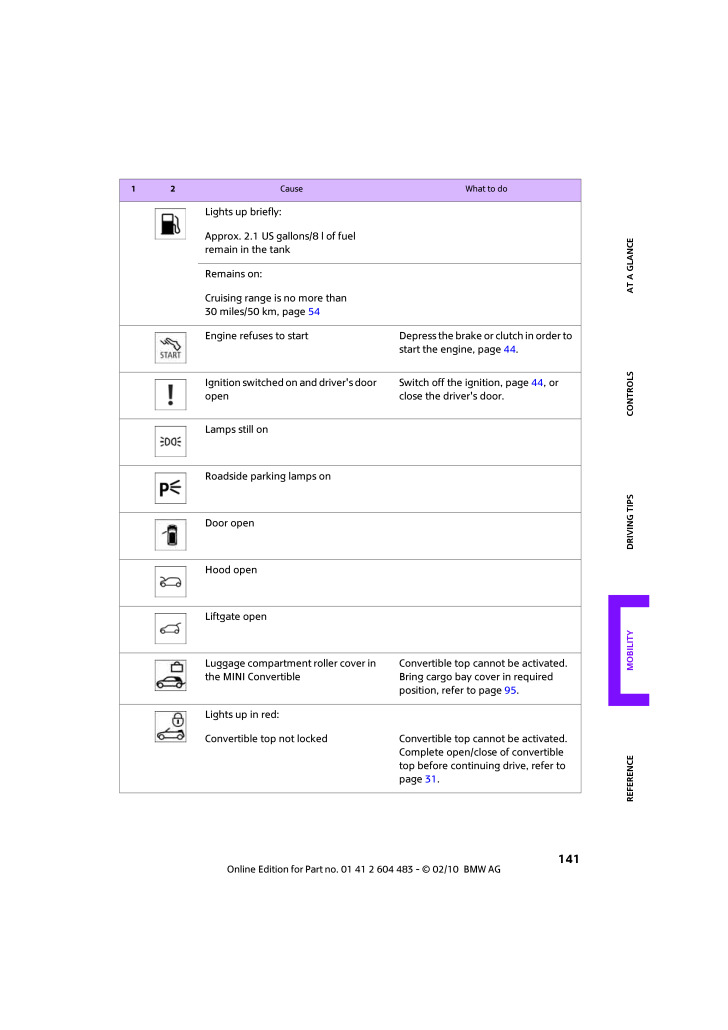

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 141Lights up briefly:Approx. 2.1 US gallons/8 l of fuel remain in the tankRemains on: Cruising range is no more than 30 miles/50 km, page 54Engine refuses to start Depress the brake or clutch in order to start the engine, page 44.Ignition switched on and driver's door openSwitch off the ignition, page 44, or close the driver's door.Lamps still onRoadside parking lamps onDoor openHood openLiftgate openLuggage compartment roller cover in the MINI ConvertibleConvertible top cannot be activated. Bring cargo bay cover in required position, refer to page 95.Lights up in red:Convertible top not locked Convertible top cannot be activated. Complete open/close of convertible top before continuing drive, refer to page31.1 2 Cause What to do
