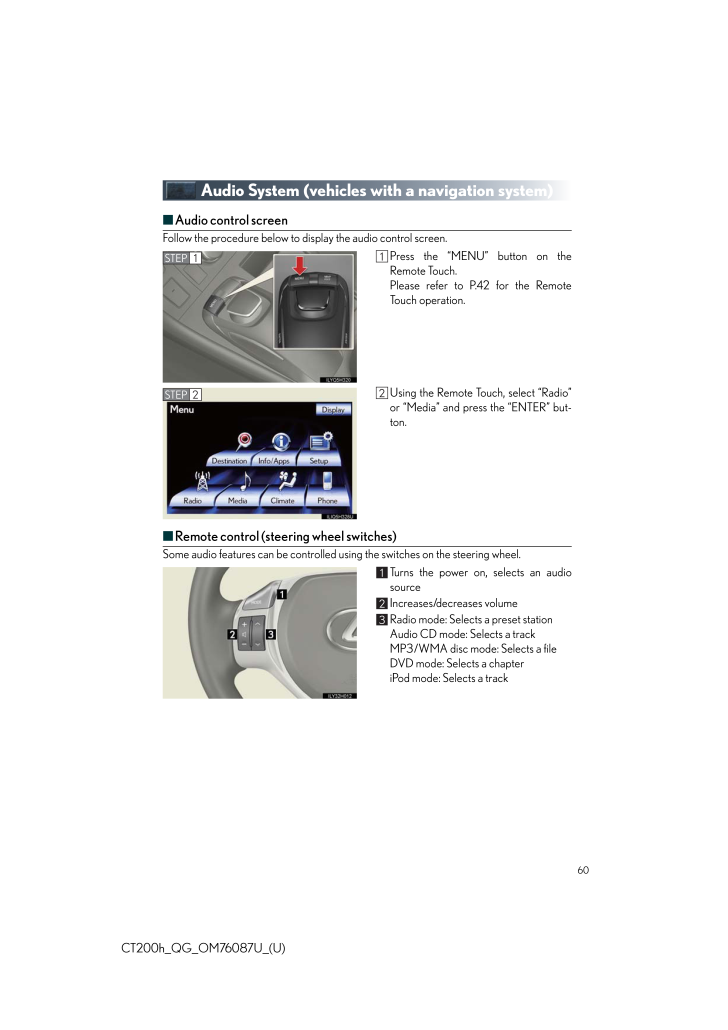

60CT200h_QG_OM76087U_(U)Audio System (vehicles with a navigation system)■Audio control screenFollow the procedure below to display the audio control screen.Press the "MENU" button on theRemote Touch.Please refer to P.42 for the RemoteTouch operation.Using the Remote Touch, select "Radio"or "Media" and press the "ENTER" but-ton.■Remote control (steering wheel switches)Some audio features can be controlled using the switches on the steering wheel.Turns the power on, selects an audiosourceIncreases/decreases volumeRadio mode: Selects a preset stationAudio CD mode: Selects a trackMP3/WMA disc mode: Selects a fileDVD mode: Selects a chapteriPod mode: Selects a trackSTEP 1STEP 2
