GSの取扱説明書・マニュアル [全21ページ 2.92MB]

1 .

124GS_G_U (OM30C11U)June 30, 2011 8:14 am2-1. Driving proceduresDriving the vehicleStarting on a steep inclineFirmly set the parking brake and shift the shift lever to "D". Gently depress the accelerator pedal. Release the parking brake. The following proc...

2 .

1252-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Driving in the rain●Drive carefully when it is raining, because visibility will be reduced, the windowsmay become fogged-up, and the road will be slippery.●Drive carefully when i...

3 .

1262-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When starting the vehicleAlways keep your foot on the brake pedal while stopped with the engine running.This prevents the vehicle from creeping.■When driving the vehicle●Do not drive i...

4 .

1272-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When driving the vehicle●Do not under any circumstances shift the shift lever to "P", "R" or "N" while thevehicle is moving.Doing so can cause significant damage to the au...

5 .

1282-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When driving on slippery road surfaces●Sudden braking, acceleration and steering may cause tire slippage and reduceyour ability to control the vehicle, resulting in an accident.●Sudden...

6 .

1292-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When the vehicle is parked●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-cle when it is in the sun.Failure to do so may result in th...

7 .

1302-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When taking a nap in the vehicleAlways turn the engine off. Otherwise, you may accidentally move the shift lever ordepress the accelerator pedal, which could cause an accident or fire ...

8 .

1312-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■While driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving.If the brake pedal is depressed whil e driving with the accelerat...

9 .

1322-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■If you get a flat tire while driving A flat or damaged tire may cause the following situations. Hold the steering wheelfirmly and gradually press the brake pedal to slow down the vehicl...

10 .

1332-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amEngine (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the engine or changes "ENGINE START STOP" switchmodes.■ Starting ...

11 .

1342-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Changing "ENGINE START STOP" switch modeModes can be changed by pressing the "ENGINE START STOP" switchwith the brake pedal released. (The mode changes each time the switch ispressed.)OFF *E...

12 .

1352-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■If the engine does not startThe immobilizer system may not have been deactivated. ( → P. 85)■When the steering lock cannot be released■When the "ENGINE START STOP" switch indicat...

13 .

1362-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When starting the engineAlways start the engine while sitting in the driver's seat. Do not press the accelera-tor pedal while starting the engine under any circumstances.Doing so may c...

14 .

1372-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amAutomatic transmissionSelect a shift position appropriate for the driving conditions.■ Shifting the shift leverWhile the "ENGINE START STOP" switch is in IGNITIONON mode, depress ...

15 .

1382-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Selecting a driving modeThe following patterns can be selected to suit current driving andoperating conditions. Power mode For powerful acceleration anddriving in mountainous regions.Normal ...

16 .

1392-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amChanging shift ranges in "S" modeShift the shift lever to the "S" position and operate the shift lever.UpshiftingDownshiftingGS460The initial shift range in "S" mode is au tomatic...

17 .

1402-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Shift ranges and their functions● You can choose from 8 levels (GS460) or 6 levels (GS350) ofengine braking force.● A lower shift range will provide greater engine braking force than ahigher...

18 .

1412-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■If the indicator does not come on even after shifting the shift lever to "S"This may indicate a malfunction in the automatic transmission. Have the vehicleinspected by your Lex...

19 .

1422-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amTurn signal lever■Turn signals can be operated whenThe "ENGINE START STOP" switch is in IGNITION ON mode.■If the indicators flash faster than usualCheck that a light bulb in the front or rear ...

20 .

1432-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amParking brake■Usage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( → P. 218)NOTICE■Before drivingFully release the parking brake.Driving the veh...

21 .

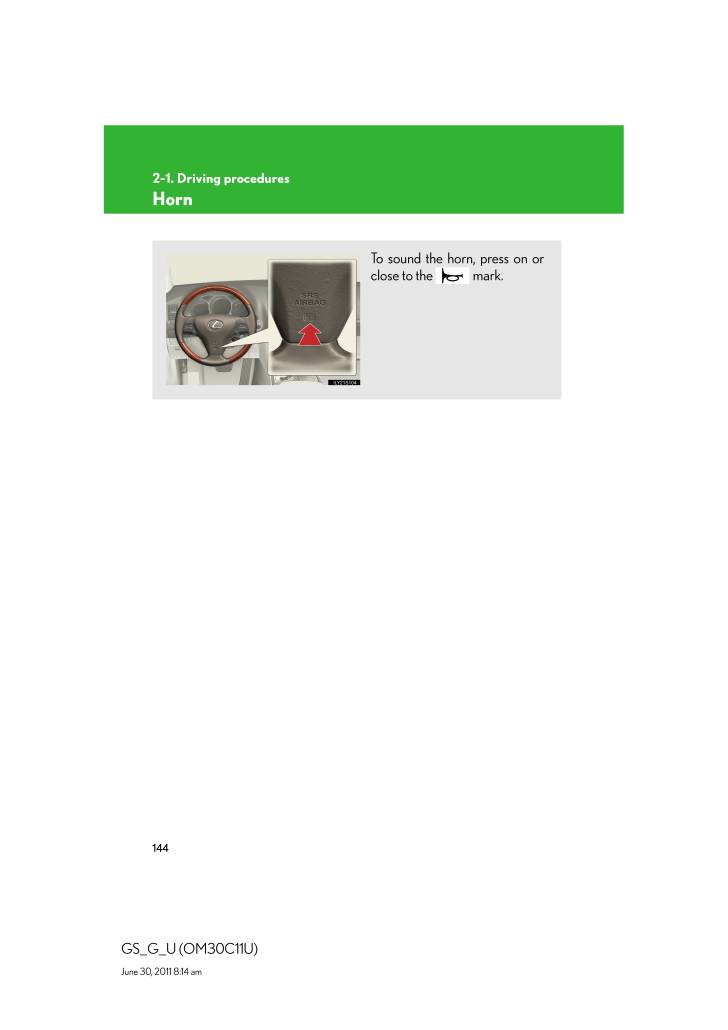

1442-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amHornTo sound the horn, press on orclose to the mark.
