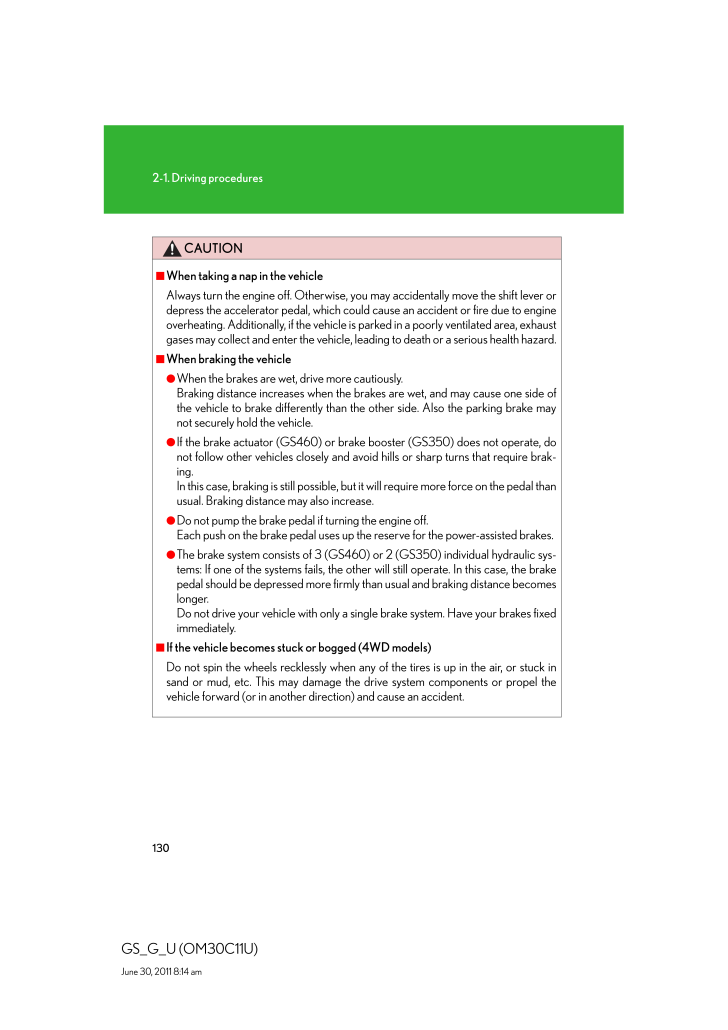

1302-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When taking a nap in the vehicleAlways turn the engine off. Otherwise, you may accidentally move the shift lever ordepress the accelerator pedal, which could cause an accident or fire due to engineoverheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaustgases may collect and enter the vehicle, leading to death or a serious health hazard.■When braking the vehicle●When the brakes are wet, drive more cautiously.Braking distance increases when the brakes are wet, and may cause one side ofthe vehicle to brake differently than the other side. Also the parking brake maynot securely hold the vehicle.●If the brake actuator (GS460) or brake booster (GS350) does not operate, donot follow other vehicles closely and avoid hills or sharp turns that require brak-ing. In this case, braking is still possible, but it will require more force on the pedal thanusual. Braking distance may also increase.●Do not pump the brake pedal if turning the engine off. Each push on the brake pedal uses up the reserve for the power-assisted brakes.●The brake system consists of 3 (GS460) or 2 (GS350) individual hydraulic sys-tems: If one of the systems fails, the other will still operate. In this case, the brakepedal should be depressed more firmly th an usual and braking distance becomeslonger.Do not drive your vehicle with only a single brake system. Have your brakes fixedimmediately. ■If the vehicle becomes stuck or bogged (4WD models)Do not spin the wheels recklessly when any of the tires is up in the air, or stuck insand or mud, etc. This may damage the drive system components or propel thevehicle forward (or in another direction) and cause an accident.

参考になったと評価
  3人が参考になったと評価しています。

その他の取扱説明書
15368 view
1770 view
7662 view
1681 view
13214 view
もっと見る

このマニュアルの目次

  • 1 .
    124GS_G_U (OM30C11U)June ...
    124GS_G_U (OM30C11U)June 30, 2011 8:14 am2-1. Driving proceduresDriving the vehicleStarting on a steep inclineFirmly set the parking brake and shift the shift lever to "D". Gently depress the accelerator pedal. Release the parking brake. The following proc...
  • 2 .
    1252-1. Driving procedure...
    1252-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Driving in the rain●Drive carefully when it is raining, because visibility will be reduced, the windowsmay become fogged-up, and the road will be slippery.●Drive carefully when i...
  • 3 .
    1262-1. Driving procedure...
    1262-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When starting the vehicleAlways keep your foot on the brake pedal while stopped with the engine running.This prevents the vehicle from creeping.■When driving the vehicle●Do not drive i...
  • 4 .
    1272-1. Driving procedure...
    1272-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When driving the vehicle●Do not under any circumstances shift the shift lever to "P", "R" or "N" while thevehicle is moving.Doing so can cause significant damage to the au...
  • 5 .
    1282-1. Driving procedure...
    1282-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When driving on slippery road surfaces●Sudden braking, acceleration and steering may cause tire slippage and reduceyour ability to control the vehicle, resulting in an accident.●Sudden...
  • 6 .
    1292-1. Driving procedure...
    1292-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When the vehicle is parked●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-cle when it is in the sun.Failure to do so may result in th...
  • 7 .
    1302-1. Driving procedure...
    1302-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When taking a nap in the vehicleAlways turn the engine off. Otherwise, you may accidentally move the shift lever ordepress the accelerator pedal, which could cause an accident or fire ...
  • 8 .
    1312-1. Driving procedure...
    1312-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■While driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving.If the brake pedal is depressed whil e driving with the accelerat...
  • 9 .
    1322-1. Driving procedure...
    1322-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■If you get a flat tire while driving A flat or damaged tire may cause the following situations. Hold the steering wheelfirmly and gradually press the brake pedal to slow down the vehicl...
  • 10 .
    1332-1. Driving procedure...
    1332-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amEngine (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the engine or changes "ENGINE START STOP" switchmodes.■ Starting ...
  • 11 .
    1342-1. Driving procedure...
    1342-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Changing "ENGINE START STOP" switch modeModes can be changed by pressing the "ENGINE START STOP" switchwith the brake pedal released. (The mode changes each time the switch ispressed.)OFF *E...
  • 12 .
    1352-1. Driving procedure...
    1352-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■If the engine does not startThe immobilizer system may not have been deactivated. ( → P. 85)■When the steering lock cannot be released■When the "ENGINE START STOP" switch indicat...
  • 13 .
    1362-1. Driving procedure...
    1362-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When starting the engineAlways start the engine while sitting in the driver's seat. Do not press the accelera-tor pedal while starting the engine under any circumstances.Doing so may c...
  • 14 .
    1372-1. Driving procedure...
    1372-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amAutomatic transmissionSelect a shift position appropriate for the driving conditions.■ Shifting the shift leverWhile the "ENGINE START STOP" switch is in IGNITIONON mode, depress ...
  • 15 .
    1382-1. Driving procedure...
    1382-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Selecting a driving modeThe following patterns can be selected to suit current driving andoperating conditions. Power mode For powerful acceleration anddriving in mountainous regions.Normal ...
  • 16 .
    1392-1. Driving procedure...
    1392-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amChanging shift ranges in "S" modeShift the shift lever to the "S" position and operate the shift lever.UpshiftingDownshiftingGS460The initial shift range in "S" mode is au tomatic...
  • 17 .
    1402-1. Driving procedure...
    1402-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Shift ranges and their functions● You can choose from 8 levels (GS460) or 6 levels (GS350) ofengine braking force.● A lower shift range will provide greater engine braking force than ahigher...
  • 18 .
    1412-1. Driving procedure...
    1412-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■If the indicator does not come on even after shifting the shift lever to "S"This may indicate a malfunction in the automatic transmission. Have the vehicleinspected by your Lex...
  • 19 .
    1422-1. Driving procedure...
    1422-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amTurn signal lever■Turn signals can be operated whenThe "ENGINE START STOP" switch is in IGNITION ON mode.■If the indicators flash faster than usualCheck that a light bulb in the front or rear ...
  • 20 .
    1432-1. Driving procedure...
    1432-1. Driving procedures2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amParking brake■Usage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( → P. 218)NOTICE■Before drivingFully release the parking brake.Driving the veh...
  • 21 .
    1442-1. Driving procedure...
    1442-1. Driving proceduresGS_G_U (OM30C11U)June 30, 2011 8:14 amHornTo sound the horn, press on orclose to the mark.
