5086-1. SpecificationsMaintenance data (fuel, oil level, etc.)Dimensions and weight*1: Unladen vehicle*2:Vehicle with 18-inch tires*3:Vehicle with tires other than the above on rear wheelsOverall length 180.3 in. (4580 mm)Overall width 70.9 in. (1800 mm)Ov...

2 .

5096-1. Specifications6Vehicle specificationsVehicle identificationnVehicle identification numberThe vehicle identification number (V IN) is the legal identifier for yourvehicle. This is the primary identification number for your Lexus. It is usedin regist...

3 .

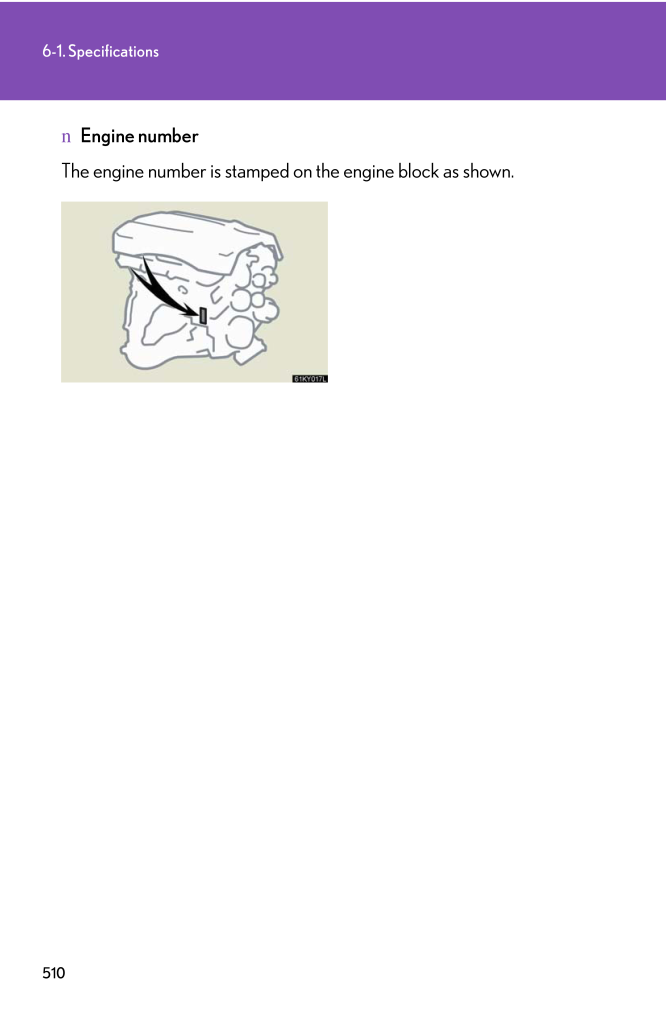

5106-1. SpecificationsnEngine numberThe engine number is stamped on the engine block as shown.

4 .

5116-1. Specifications6Vehicle specificationsEngineFuelIS250 IS350Model 4GR-FSE 2GR-FSEType6-cylinder V type, 4-cycle, gasoline6-cylinder V type, 4-cycle, gasolineBore and stroke3.27 ×(83.0 × 77.0 mm)3.70 × 3.27 in. (94.0 × 83.0 mm)Displacement 152.5 cu.in...

5 .

5126-1. SpecificationsLubrication systemIS250nEngine oil selection"Toyota Genuine Motor Oil" is used in your Lexus vehicle. Use Lexusapproved "Toyota Genuine Motor Oil" or equivalent to satisfy the follow-ing grade and viscosity.Oil grade: ILSAC multigra...

6 .

5136-1. Specifications6Vehicle specificationsThe 0W portion of the oil viscosity rating indicates the characteristic of the oilwhich allows cold startability. Oils with a lower value before the W allow for eas-ier starting of the engine in cold weather.Th...

7 .

5146-1. SpecificationsRecommended viscosity: SAE 5W-30SAE 5W-30 is the best choice forgood fuel economy and goodstarting in cold weather.If SAE 5W-30 is not available,SAE 10W-30 oil may be used.However, it should be replacedwith SAE 5W-30 at the next oilch...

8 .

5156-1. Specifications6Vehicle specificationsCooling systemIgnition systemCapacityIS3509.6 qt. (9.1 L, 8.0 Imp. qt.)IS25010.9 qt. (10.3 L, 9.1 Imp. qt.)Coolant typeUse either of the following.*"Toyota Super Long Life Coolant" *Similar high-quality ethylene...

9 .

5166-1. SpecificationsElectrical systemDifferentialFrontRear*: "Toyota Genuine Differential Gear Oil" is put in your Lexus vehicle at the fac-tory. Use Lexus approved "T oyota Genuine Differential Gear Oil" or an equiv-alent of matching quality to satisfy ...

10 .

5176-1. Specifications6Vehicle specificationsAutomatic Transmission*: The fluid capacity is provided as a reference. If replacement is necessary, con-tact your Lexus dealer.Manual TransmissionFluid capacity* IS350 (2WD) IS350 (AWD) IS250 (2WD) IS250 (A...

11 .

5186-1. SpecificationsClutchBrakes*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50kgf) while the engine is running.*2:Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).*3:Parking brake lever tr...

12 .

5196-1. Specifications6Vehicle specificationsSteeringTires and wheelsnTires and wheels (except for compact spare)Type AFree play Less than 1.2 in. (30 mm)Tire size 205/55R16 89WFront and rear tire inflation pres-sure(Recommended cold tire inflation pressur...

13 .

5206-1. SpecificationsType BTire size 225/45R17 91VFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)*Rear: 38 psi (260 kPa, 2.6 kgf/cm2 or bar)**: Whe...

14 .

5216-1. Specifications6Vehicle specificationsType CTire sizeFront tires: 225/45R17 91VRear tires: 245/45R17 95VFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/c...

15 .

5226-1. SpecificationsType DTire sizeFront tires: 225/40R18 88YRear tires: 255/40R18 95YFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)*Rear: 38 psi...

16 .

5236-1. Specifications6Vehicle specificationsType EnCompact spare tireTire sizeFront tires: 225/40R18 88WRear tires: 255/40R18 95WFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi ...

17 .

5246-1. SpecificationsLight bulbsA: D4S discharge bulbsB: H11 halogen bulbsC: Wedge base bulbs (amber)D: HB3 halogen bulbsE: Wedge base bulbs (clear)F: Double end bulbsLight Bulbs Bulb No. W TypeExteriorHeadlightsHigh beamLow/high beam (discharge bulbs)Low...

18 .

5256-1. Specifications6Vehicle specificationsFuel informationnFuel tank opening for unleaded gasolineTo help prevent incorrect fueling, your Lexus has a fuel tank opening that onlyaccommodates the special nozzle on unleaded fuel pumps.nIf your engine knock...

19 .

5266-1. SpecificationsnGasoline qualityIn very few cases, driveability problems may be caused by the brand of gasoline youare using. If driveability problems persist, try changing the brand of gasoline. If thisdoes not correct the problem, consult your L...

20 .

5276-1. Specifications6Vehicle specificationsnLexus does not recommend gasoline containing MMTSome gasoline contains octane enhancing additive called MMT (Methylcyclopen-tadienyl Manganese Tricarbonyl).Lexus DOES NOT recommend the use of gasoline that con...

21 .

5286-1. SpecificationsTire informationTypical tire symbolsStandard tireCompact spare tireTire size (→P. 530)DOT and Tire Identification Number (TIN) ( →P. 530)Location of treadwear indicators ( →P. 400)Tire ply composition and materialsPlies are layers of ...

22 .

5296-1. Specifications6Vehicle specificationsRadial tires or bias-ply tiresA radial tire has "RADIAL" on the sidewall. A tire not marked "RADIAL" isa bias-ply tire.TUBELESS or TUBE TYPEA tubeless tire does not have a tube an d air is directly filled in the...

23 .

5306-1. SpecificationsTypical DOT and tire identification number (TIN)DOT symbol*Tire Identification Number (TIN)Tire manufacturer's identifica-tion markTire size codeManufacturer's optional tiretype code (3 or 4 letters)Manufacturing weekManufacturing yea...

24 .

5316-1. Specifications6Vehicle specificationsnTire dimensionsSection widthTire heightWheel diameterTire section namesBeadSidewallShoulderTreadBeltInner linerReinforcing rubberCarcassRim linesBead wiresChaferUniform Tire Quality GradingThis information has ...

25 .

5326-1. SpecificationsnDOT quality gradesAll passenger vehicle tires must co nform to Federal Safety Require-ments in addition to these grades. Quality grades can be found whereapplicable on the tire sidewall between tread shoulder and maximumsection widt...

26 .

5336-1. Specifications6Vehicle specificationsnTemperature A, B, CThe temperature grades are A (the hi ghest), B, and C, representingthe tire's resistance to the generation of heat and its ability to dissipateheat when tested under controlled conditions o...

27 .

5346-1. SpecificationsMaximum inflation pres-sureThe maximum cold inflated pressure to which a tire may be inflated, shown on the sidewall of the tireMaximum loaded vehicle weightThe sum of:(a) Curb weight(b) Accessory weight(c) Vehicle capacity weight(d) ...

28 .

5356-1. Specifications6Vehicle specificationsRim width Nominal distance between rim flangesVehicle maximum load on the tireThe load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight, and di...

29 .

5366-1. SpecificationsBeadThe part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to fit the rimBead separationA breakdown of the bond between components in the beadBias ply tireA pneumatic tire in which the ...

30 .

5376-1. Specifications6Vehicle specificationsIntended outboard side-wall(a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on the other s...

31 .

5386-1. SpecificationsPly separationA parting of rubber compound between adjacent pliesPneumatic tireA mechanical device made of rubber, chemicals, fab-ric and steel or other materials, that, when mounted on an automotive wheel, provides the traction and c...

32 .

5396-1. Specifications6Vehicle specifications*:Table 1 ⎯ Occupant loading and distributi on for vehicle normal load forvarious designated seating capacitiesTread ribA tread section running circumferentially around a tireTread separation Pulling away of the...
