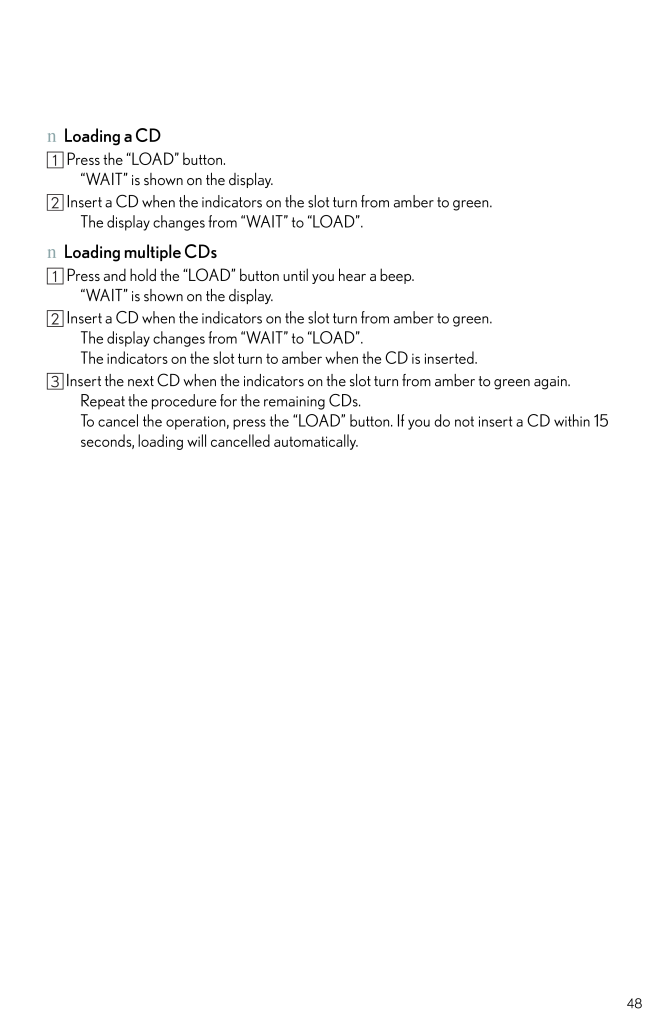

48nLoading a CD Press the "LOAD" button."WAIT" is shown on the display. Insert a CD when the indicators on the slot turn from amber to green.The display changes from "WAIT" to "LOAD".nLoading multiple CDs Press and hold the "LOAD" button until you hear a beep."WAIT" is shown on the display. Insert a CD when the indicators on the slot turn from amber to green.The display changes from "WAIT" to "LOAD".The indicators on the slot turn to amber when the CD is inserted.Insert the next CD when the indicators on the slot turn from amber to green again.Repeat the procedure for the remaining CDs.To cancel the operation, press the "LOAD" button. If you do not insert a CD within 15seconds, loading will cancelled automatically.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .31Hands-free System For C...31Hands-free System For Cellular Phone (with navigation system)nBluetooth(R) phone pairingCompatible Bluetooth(R)-equipped phones can be connected to the vehicle, enablinghands-free operation. Please refer to the cell ular phone manufacturer's user guide f...
-
2 .32nPhonebook transferPush...32nPhonebook transferPush the button on the side of the touchscreen.Touch .Touch .Touch .Touch .Transfer the phonebook data to the systemusing the cellular phone.Refer to the cellular phone user's manual forcellular phone operation.STEP 2STEP 3STEP 4Phon...
-
3 .33nRegistering a voice ta...33nRegistering a voice tagPush the button on the side of the touchscreen.Touch .Touch .Touch .Touch .Touch the data you want to register.Touch , and record a voice tag.Touch .STEP 2STEP 3STEP 4
-
4 .34nRegistering a speed di...34nRegistering a speed dialPush the button on the side of the touchscreen.Touch .Touch .Touch .Touch .Touch the data you want to register.Touch the desired phone number.Touch the button you want to register in.The registration completion message is dis-p...
-
5 .35nCalling by nameYou can...35nCalling by nameYou can call by saying a voice tag registered in the phonebook. For setting the voice recog-nition, refer to the "Navigation System Owner' s Manual". Only when English is selected asthe system language can you call by saying a name regi...
-
6 .36nCalling by speed dialP...36nCalling by speed dialPress .Touch .Touch the desired number to call.STEP 2STEP 1STEP 3
-
7 .37nReceiving a callWhen a...37nReceiving a callWhen a call is received, this screen is dis-played with a sound.Push on the steering wheel to talk onthe phone.To ignore the call, push on the steeringwheel.STEP 1STEP 2
-
8 .38Hands-free System For C...38Hands-free System For Cellular Phone (without navigation system)nBluetooth(R) phone pairingCompatible Bluetooth(R)-equipped phones can be connected to the vehicle, enablinghands-free operation. Please refer to the cellu lar phone manufacturer's user guid...
-
9 .39nCalling by numberPress...39nCalling by numberPress and say "Dial by number".Press and say the phone number.Dialinga. Press .b.Press and say "Dial".nCalling by nameYou can call by saying a voice tag registered in the phonebook. For setting the voice recog-nition, refer to th...
-
10 .40nCalling by speed dialP...40nCalling by speed dialPress .Press the desired preset button (1-6).Press .STEP 1STEP 2
-
11 .41nPhonebook transferPres...41nPhonebook transferPress .Press and say "Phone book".Press and say "Add entry".Press and say "By phone".Press and say "Confirm".Transfer the phonebook data to the systemusing the cellular phone.Refer to the cellular phone user's manual forcellula...
-
12 .42nChanging the registere...42nChanging the registered namePress .Press and say "Phone book".Press and say "Change name".Press and say the desired name.Press and say "Confirm".Press and say the new name.Press and say "Confirm".STEP 1 : Pressing this switch turns the speec...
-
13 .43nRegistering a speed di...43nRegistering a speed dialPress .Press and say "Phone book".Press and say "Set speed dial".Select the data to be registered.Press and say the desired name.Press and say "Confirm".Press the desired preset button (1-6).Press and say "Confirm".STEP...
-
14 .44Audio System (without n...44Audio System (without navigation system)Owners of models equipped with a navigation system should refer to the "Navigation SystemOwner's Manual".nBasic operationType ASound quality modesAutomatic Sound Levelizer (ASL)MuteAudio sourcesAM⋅FM: AM radio/FM r...
-
15 .45nRadioType ATraffic inf...45nRadioType ATraffic informationStation presetsText messagesRadio tunerRDS genre selectScanning radio stationsSeekType BTraffic informationStation presetsRadio tunerStation selectSeeknEntering station presetsPress the desired station by using the tune, th...
-
16 .46nCD playernPlaying an a...46nCD playernPlaying an audio CDType ARandom playback Repeat playPause/PlaybackText informationDisc selectDisc loadSearch playbackPlaybackEjectTrack select/rewind/fast-forwardType BRandom playback Repeat playPause/PlaybackText informationDisc selectDisc lo...
-
17 .47nPlaying a CD with MP3/...47nPlaying a CD with MP3/WMA filesType ARandom playbackRepeat playPause/PlaybackFolder selectText informationFile selectDisc selectDisc loadSearch playbackPlaybackEjectType BRandom playbackRepeat playPause/PlaybackFolder selectText informationFile selectDi...
-
18 .48nLoading a CD Press the...48nLoading a CD Press the "LOAD" button."WAIT" is shown on the display. Insert a CD when the indicators on the slot turn from amber to green.The display changes from "WAIT" to "LOAD".nLoading multiple CDs Press and hold the "LOAD" button until you hear a ...
-
19 .49nOperating an iPodType ...49nOperating an iPodType ARandom playRepeat playPause/PlaybackGo backText informationPlaybackMenu/Track selectTrack select/rewind/fast-forwardType BRandom playRepeat playPause/PlaybackGo backText informationPlaybackMenu/Track selectTrack select/rewind/fast...
-
20 .50Air Conditioning System...50Air Conditioning System (without navigation system)Owners of models equipped with a navigation system should refer to the "Navigation SystemOwner's Manual".nUsing the automatic modePress the AUTO button.Adjust the temperature using the TEMP but-tons.nAdj...
-
21 .51Garage Door OpenerThe g...51Garage Door OpenerThe garage door opener (HomeLink® Universal Transceiver) is manufactured under licensefrom HomeLink®.The HomeLink® compatible transceiver in yourvehicle has 3 buttons which can be programmedto operate 3 different devices.nProgramming Ho...
-
22 .52nProgramming other devi...52nProgramming other devicesFor U.S.A. owners:To program an entry gate, see the Owner's Manual.To program other devices, contact your Lexus dealer.For Canadian owners:To program all other devices, follow the same procedure as for garage door programming.nO...
-
23 .53Ashtrays (If Equipped)F...53Ashtrays (If Equipped)FrontTo remove the ashtray, push the release lever.RearTo remove the ashtray, press down on the plateand lift the ashtray out.Luggage MatPull the lever upwards when lifting the luggagemat up.The lever can be hooked on the edge of th...
-
24 .54Seat Heaters / Seat Hea...54Seat Heaters / Seat Heaters and Ventilators (If Equipped)Seat heatersTurn the dial toward .Seat heaters and ventilatorsSeat heaters: turn the dial toward .Ventilators: turn the dial toward .112
-
25 .55Console BoxesFrontTo op...55Console BoxesFrontTo open, slide and lift the armrest with the knobpulled up.Rear (if equipped)To open, press the lock release button and lift thearmrest.Overhead consoleTo open, press the lid.There is a power outlet locate d in the front console box.
-
26 .56Glove BoxOpen: press th...56Glove BoxOpen: press the button.LockUnlockThe glove box can be locked and unlocked usingthe mechanical key.Cup HoldersFront (press-in type)To open, press down on the front of the lid.Front (slide type)To open, pull and hold the knob and slide the arm-res...
-
27 .57Interior LightsWithout ...57Interior LightsWithout moon roofDoor position on/offOn/offWith moon roofDoor position on/offOn/offRear Sunshade (If Equipped)To raise the rear sunshade, press the switch.Press the switch again to lower it.The sunshade automatically lowers to ensure visi-...
-
28 .58Compass (If Equipped)To...58Compass (If Equipped)To turn the compass on or off, press the switch.Trunk Storage Extension Pull down the rear armrest.Open the inside trunk door from the trunk andload baggage or other items.Longer items can be loaded in the vehicle by utilizing the t...
-
29 .59Safety Connect (If Equi...59Safety Connect (If Equipped)nSystem componentsMicrophoneLED light indicators"SOS" buttonnServicesSubscribers have the following Safety Connect services available:lAutomatic Collision Notification*In case of either airbag deployment or severe rear-end col...
-
30 .60lEmergency Assistance B...60lEmergency Assistance Button (SOS)In the event of an emergency on the road, push the "SOS" button to reach the SafetyConnect response center. The answering agent will determine your vehicle's location,assess the emergency, and dispatch the necessary assi...
-
31 .61Lexus Enform with Safet...61Lexus Enform with Safety Connect (If Equipped)Lexus Enform and Safety Connect are subscription-based telematics services that use Glo-bal Positioning System (GPS) data, embedded cellular technology an XM(R) satellite dataservices to provide safety and s...
-
32 .62lXM NavWeatherTM *3The ...62lXM NavWeatherTM *3The subscription-based XM NavWeatherTM service allows the navigation system to dis-play weather information on the map.lXM(R) NavTraffic *3The subscription-based XM(R) NavTraffic service allows the navigation system to displaytraffic ...
