ISの取扱説明書・マニュアル [全48ページ 6.76MB]
3
7 / 48 ページ
7 / 48 ページ
現在のページURL

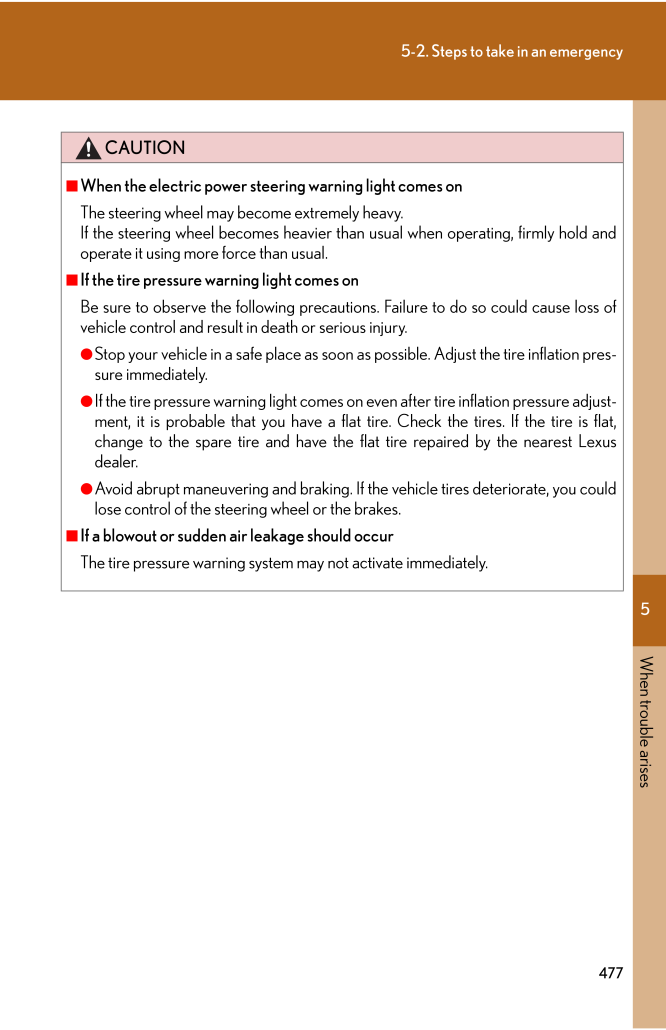

5When trouble arises4775-2. Steps to take in an emergencyCAUTION■When the electric power steering warning light comes onThe steering wheel may become extremely heavy. If the steering wheel becomes heavier than usual when operating, firmly hold and operate it using more force than usual.■If the tire pressure warning light comes onBe sure to observe the following precautions. Failure to do so could cause loss of vehicle control and result in death or serious injury.●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-sure immediately.●If the tire pressure warning light comes on even after tire inflation pressure adjust-ment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to the spare tire and have the flat tire repaired by the nearest Lexus dealer.●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.■If a blowout or sudden air leakage should occurThe tire pressure warning system may not activate immediately.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .5When trouble arises4715-...5When trouble arises4715-2. Steps to take in an emergencyIf a warning light turns on or a warning buzzer sounds...Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.The following warning indicates a possible problem in the brake...
-
2 .4725-2. Steps to take in ...4725-2. Steps to take in an emergencyStop the vehicle immediately.The following warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer.Have the veh...
-
3 .5When trouble arises4735-...5When trouble arises4735-2. Steps to take in an emergencyFollow the correction procedures.After taking the specified steps to co rrect the suspected problem, check that the warning light turns off.Warning light Warning light/Details (U.S.A.) (Canada)ABS wa...
-
4 .4745-2. Steps to take in ...4745-2. Steps to take in an emergency*1:Open door warning buzzer:→ P. 483*2:Driver's and front passenger's seat belt reminders buzzer:The driver's and front passenger's seat be lts reminder sounds to alert the driver and front passenger that his or her sea...
-
5 .5When trouble arises4755-...5When trouble arises4755-2. Steps to take in an emergency■If the malfunction indicator lamp comes on while drivingFirst check the following:●Is the fuel tank empty? If it is, fill the fuel tank immediately.●Is the fuel tank cap loose? If it is, tighten i...
-
6 .4765-2. Steps to take in ...4765-2. Steps to take in an emergency■If the tire pressure warning system is inoperativeThe tire pressure warning system will be disabled in the following conditions:(When the condition becomes normal, the system will work properly.)●If tires not equipped ...
-
7 .5When trouble arises4775-...5When trouble arises4775-2. Steps to take in an emergencyCAUTION■When the electric power steering warning light comes onThe steering wheel may become extremely heavy. If the steering wheel becomes heavier than usual when operating, firmly hold and operate...
-
8 .4785-2. Steps to take in ...4785-2. Steps to take in an emergencyCAUTION■Maintenance of the tiresEach tire, including the spare (if provided ), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or...
-
9 .5When trouble arises4795-...5When trouble arises4795-2. Steps to take in an emergencyNOTICE■Precaution when installing a different tireWhen a tire of a different specification or maker is installed, the tire pressure warn-ing system may not operate properly.
-
10 .4805-2. Steps to take in ...4805-2. Steps to take in an emergencyIf a warning message is displayedStop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa -tion display. The following warning indicates the possibility of damage to the vehicle t...
-
11 .5When trouble arises4815-...5When trouble arises4815-2. Steps to take in an emergencyHave the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning messa ge is shown on the multi-informa -tion display. Failing to investigate the cause of the following warni...
-
12 .4825-2. Steps to take in ...4825-2. Steps to take in an emergency(If equipped)Indicates intuitive parking assist malfunction.The malfunctioning assist-sensor is shown flashing on the display.(Flashing)(If equipped)Indicates a malfunction in the radar cruise control system.Warning mes...
-
13 .5When trouble arises4835-...5When trouble arises4835-2. Steps to take in an emergencyFollow the correction procedures.A buzzer sounds and a warning messa ge is shown on the multi-informa -tion display. After taking the specified steps to correct the suspected problem, check that the ...
-
14 .4845-2. Steps to take in ...4845-2. Steps to take in an emergencyIndicates that the trunk is not fully closed. flashes and a buzzer sounds to indi-cate that trunk is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).Close the trunk.(Flashing)(If equipped)In...
-
15 .5When trouble arises4855-...5When trouble arises4855-2. Steps to take in an emergencyIndicates that engine oil level is low.Check the level of engine oil, and add if necessary.(U.S.A. only)Indicates that the engine oil is scheduled to be changed.Check the engine oil, and change if ne...
-
16 .4865-2. Steps to take in ...4865-2. Steps to take in an emergency(Flashing)(If equipped)Indicates that the pre-collision system is not currently functional.Clean the grille and the sensor.This message appears when the pre-collision system is hot. In this case, wait until the system c...
-
17 .5When trouble arises4875-...5When trouble arises4875-2. Steps to take in an emergency(Flashing and then con-tinuously on)(Flashing)(If equipped)Indicates that the radar cruise control system is unable to judge vehicle-to-vehicle distance.*Switch the driving mode to either the normal ...
-
18 .4885-2. Steps to take in ...4885-2. Steps to take in an emergencyFollow the correction procedures.After taking the specified steps to co rrect the suspected problem, check that the warning light turns off.InteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce ⎯(C...
-
19 .5When trouble arises4895-...5When trouble arises4895-2. Steps to take in an emergencyInteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce3 times(Vehicles with an auto-matic transmission)(Flashing)Indicates that the driver's door has been opened or closed with t...
-
20 .4905-2. Steps to take in ...4905-2. Steps to take in an emergencyInteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce ⎯(Vehicles with an auto-matic transmission)Indicates that a door has been opened or closed and the "ENGINE START STOP" switch has been switched...
-
21 .5When trouble arises4915-...5When trouble arises4915-2. Steps to take in an emergency*: If the engine does not start when the electronic key is inside the vehicle, the electronic key battery may be depleted or there may be difficulties receiving the signal from the key. (→P. 32 )Inte...
-
22 .4925-2. Steps to take in ...4925-2. Steps to take in an emergencyIf you have a flat tireRemove the flat tire and replace it with the spare provided.■ Before jacking up the vehicle● Stop the vehicle on a hard, flat surface.● Set the parking brake.● Shift the shift lever to P (vehicles...
-
23 .5When trouble arises4935-...5When trouble arises4935-2. Steps to take in an emergencyTaking out the spare tireLift up the hook of the panel on the trunk floor.Secure the panel using the hook provided.Loosen the center fastener that secures the spare tire.STEP 1STEP 2STEP 3
-
24 .4945-2. Steps to take in ...4945-2. Steps to take in an emergencyReplacing a flat tireChock the tires.Slightly loosen the wheel nuts (one turn).Turn the tire jack portion "A" by hand until the notch of the jack is in contact with the jack point.STEP 1Flat tireWheel chock positionsFro...
-
25 .5When trouble arises4955-...5When trouble arises4955-2. Steps to take in an emergencyRaise the vehicle until the tire is slightly raised off the ground.Remove all the wheel nuts and the tire.When resting the tire on the ground, place the tire so that the wheel design faces up to avoi...
-
26 .4965-2. Steps to take in ...4965-2. Steps to take in an emergencyInstall the spare tire and loosely tighten each nut by hand to approximately the same amount.Tighten the wheel nuts until the tapered portion comes into loose contact with the disc wheel seat.Lower the vehicle.Firmly ti...
-
27 .5When trouble arises4975-...5When trouble arises4975-2. Steps to take in an emergency■The compact spare tire●The compact spare tire is identified by the label "TEMPORARY USE ONLY" on the tire sidewall. Use the compact spare tire temporarily only in an emergency.●Make sure to check th...
-
28 .4985-2. Steps to take in ...4985-2. Steps to take in an emergencyCAUTION■Using the tire jackImproper use of the tire jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack.●Do not use the tire jack for any purpose other than replacing tires or ins...
-
29 .5When trouble arises4995-...5When trouble arises4995-2. Steps to take in an emergencyCAUTION■When using the spare tire●Remember that your compact spare tire is specifically designed for use with your vehicle. Do not use your compact spare tire on another vehicle.●Do not use two compa...
-
30 .5005-2. Steps to take in ...5005-2. Steps to take in an emergencyNOTICE■Do not drive the vehicle with a flat tire.Do not continue driving with a flat tire. Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair.■Be careful when driving over bum...
-
31 .5When trouble arises5015-...5When trouble arises5015-2. Steps to take in an emergencyIf the engine will not startIf the engine will not start even though correct starting procedures are being followed (→ P. 134 ), consider each of the following points.■ The engine will not start even...
-
32 .5025-2. Steps to take in ...5025-2. Steps to take in an emergencyEmergency start functionWhen the engine does not start, the following steps can be used as an interim measure to start the engine if the "ENGINE START STOP" switch is functioning normally.Vehicles with an automatic tran...
-
33 .5When trouble arises5035-...5When trouble arises5035-2. Steps to take in an emergencyIf the shift lever cannot be shifted from P∗If the shift lever cannot be shifted with your foot on the brake, there may be a problem with the shift lock system (a system to prevent accidental opera-...
-
34 .5045-2. Steps to take in ...5045-2. Steps to take in an emergencyIf you lose your keysNew genuine Lexus keys can be made by your Lexus dealer using the other key and the key number stamped on your key number plate.
-
35 .5When trouble arises5055-...5When trouble arises5055-2. Steps to take in an emergencyIf the electronic key does not operate properlyLocking and unlocking the doors, unlocking the trunk and key linked functionsDoorsRemove the cover on the driver's door handle using the mechanical key ...
-
36 .5065-2. Steps to take in ...5065-2. Steps to take in an emergencyTrunkTurn the mechanical key clock -wise to open.Changing "ENGINE START STOP" switch modes and starting the engineAutomatic transmissionShift the shift lever to P and apply the brakes.Touch the Lexus emblem side of the ...
-
37 .5When trouble arises5075-...5When trouble arises5075-2. Steps to take in an emergencyTo change "ENGINE START STOP" switch modes: Within 10 seconds of the buzzer sounding, release the brake pedal and press the "ENGINE START STOP" switch. Modes can be changed each time the switch is pr...
-
38 .5085-2. Steps to take in ...5085-2. Steps to take in an emergencyTo change "ENGINE START STOP" switch modes: Within 10 seconds of the buzzer sounding, release the clutch pedal and press the "ENGINE START STOP" switch. Modes can be changed each time the switch is pressed. ( → P. 134 ...
-
39 .5When trouble arises5095-...5When trouble arises5095-2. Steps to take in an emergencyIf the vehicle battery is dischargedThe following procedures may be used to start the engine if the vehicle's battery is discharged. You can call your Lexus dealer or a qualified repair shop.If you h...
-
40 .5105-2. Steps to take in ...5105-2. Steps to take in an emergency■Avoiding a discharged battery●Turn off the headlights and the audio system while the engine is off.●Turn off any unnecessary electrical components when the vehicle is running at a low speed for an extended period, such...
-
41 .5When trouble arises5115-...5When trouble arises5115-2. Steps to take in an emergencyCAUTION■Battery precautionsThe battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead compounds. Observe the following precautions when han-dling the b...
-
42 .5125-2. Steps to take in ...5125-2. Steps to take in an emergencyIf your vehicle overheatsIf your engine overheats:Stop the vehicle in a safe place and turn off the automatic air conditioning system.Check to see if steam is coming out from under the hood.If you see steam: Stop the ...
-
43 .5When trouble arises5135-...5When trouble arises5135-2. Steps to take in an emergency■OverheatingIf you observe the following, your vehicle may be overheating.●The engine coolant temperature gauge enters the red zone or a loss of power is experienced.●Steam is coming from under the h...
-
44 .5145-2. Steps to take in ...5145-2. Steps to take in an emergencyNOTICE■When adding engine coolantWait until the engine has cooled down before adding engine coolant. When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly can cause damage to the engine.
-
45 .5When trouble arises5155-...5When trouble arises5155-2. Steps to take in an emergencyIf the vehicle becomes stuckCAUTION■When attempting to free a stuck vehicleIf you choose to rock the vehicle back and forth to free it, make sure the surround-ing area is clear, to avoid striking oth...
-
46 .5165-2. Steps to take in ...5165-2. Steps to take in an emergencyNOTICE■To avoid damaging the transmission and other components●Avoid spinning the wheels and do not rev the engine.●If the vehicle remains stuck after trying these procedures, the vehicle may require towing to be freed.
-
47 .5When trouble arises5175-...5When trouble arises5175-2. Steps to take in an emergencyIf your vehicle has to be stopped in an emergencyCAUTION■If the engine has to be turned off while drivingPower assist for the brakes and steering wh eel will be lost, making the brake pedal harder to...
