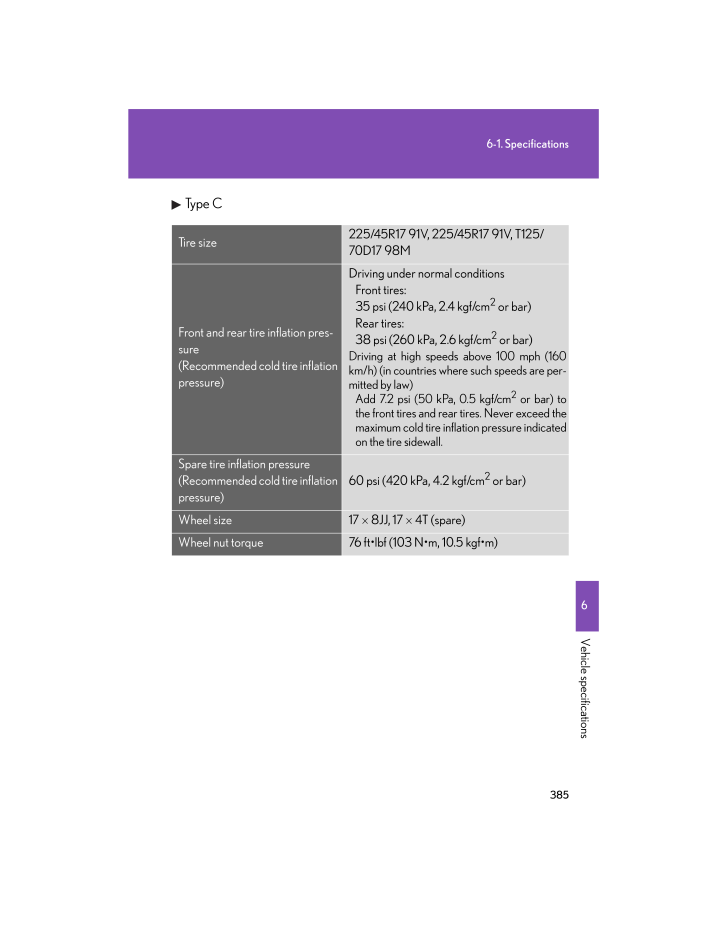

3856-1. Specifications6Vehicle specificationsType CTire size225/45R17 91V, 225/45R17 91V, T125/70D17 98MFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront tires: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)Rear tires: 38 psi (260 kPa, 2.6 kgf/cm2 or bar)Driving at high speeds above 100 mph (160km/h) (in countries where such speeds are per-mitted by law)Add 7.2 psi (50 kPa, 0.5 kgf/cm2 or bar) tothe front tires and rear tires. Never exceed themaximum cold tire inflation pressure indicatedon the tire sidewall.Spare tire inflation pressure(Recommended cold tire inflation pressure)60 psi (420 kPa, 4.2 kgf/cm2 or bar)Wheel size 17 × 8JJ, 17 × 4T (spare)Wheel nut torque 76 ft*lbf (103 N*m, 10.5 kgf*m)
