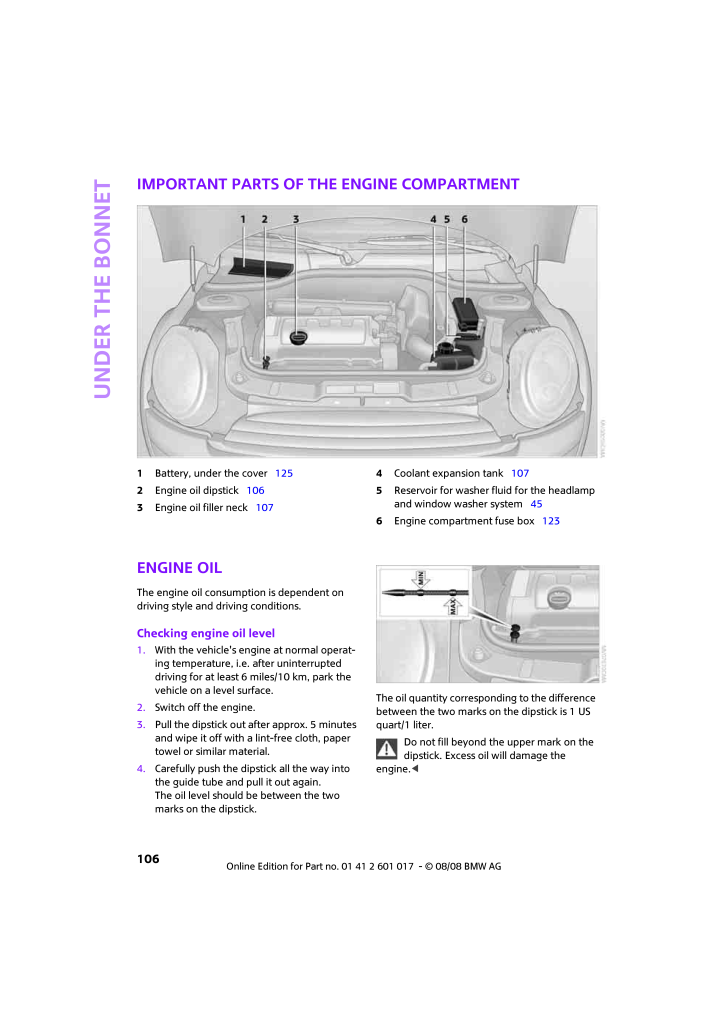

Under the bonnet106Important parts of the engine compartment1Battery, under the cover 1252Engine oil dipstick 1063Engine oil filler neck 1074Coolant expansion tank 1075Reservoir for washer fluid for the headlamp and window washer system 456Engine compartment fuse box 123Engine oilThe engine oil consumption is dependent on driving style and driving conditions.Checking engine oil level1.With the vehicle's engine at normal operat-ing temperature, i.e. after uninterrupted driving for at least 6 miles/10 km, park the vehicle on a level surface.2.Switch off the engine.3.Pull the dipstick out after approx. 5 minutes and wipe it off with a lint-free cloth, paper towel or similar material.4.Carefully push the dipstick all the way into the guide tube and pull it out again. The oil level should be between the two marks on the dipstick.The oil quantity corresponding to the difference between the two marks on the dipstick is 1 US quart/1 liter.Do not fill beyond the upper mark on the dipstick. Excess oil will damage the engine.<
