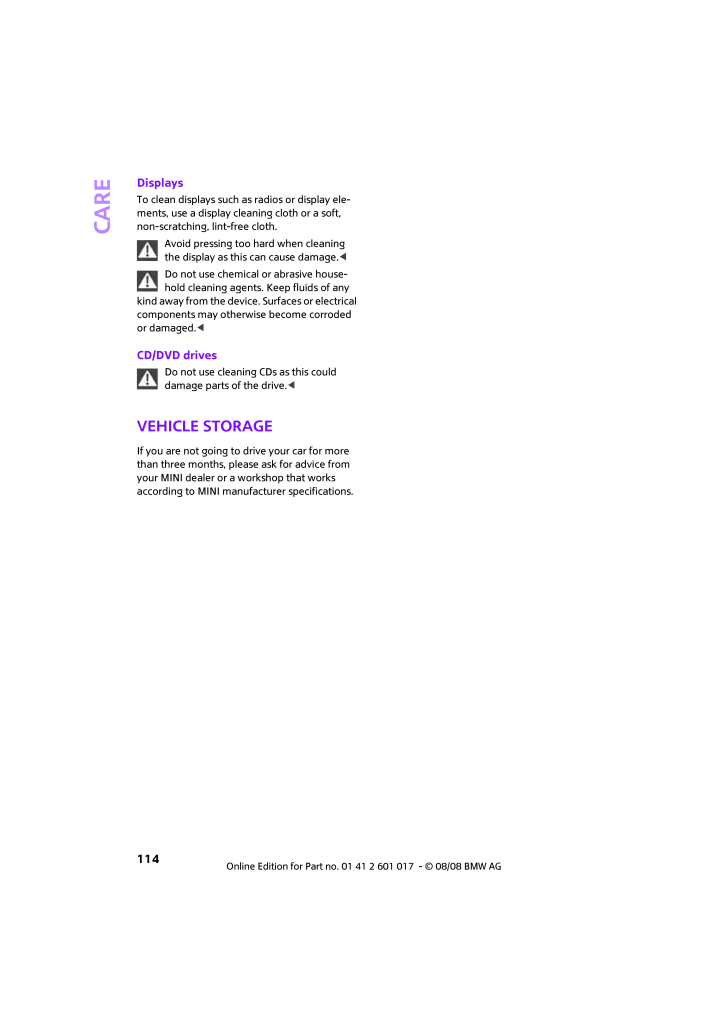

Care114DisplaysTo clean displays such as radios or display ele-ments, use a display cleaning cloth or a soft, non-scratching, lint-free cloth.Avoid pressing too hard when cleaning the display as this can cause damage. <Do not use chemical or abrasive house-hold cleaning agents. Keep fluids of any kind away from the device. Surfaces or electrical components may otherw ise become corroded or damaged.<CD/DVD drivesDo not use cleaning CDs as this could damage parts of the drive. <Vehicle storageIf you are not going to drive your car for more than three months, please ask for advice from your MINI dealer or a workshop that works according to MINI manufacturer specifications.
