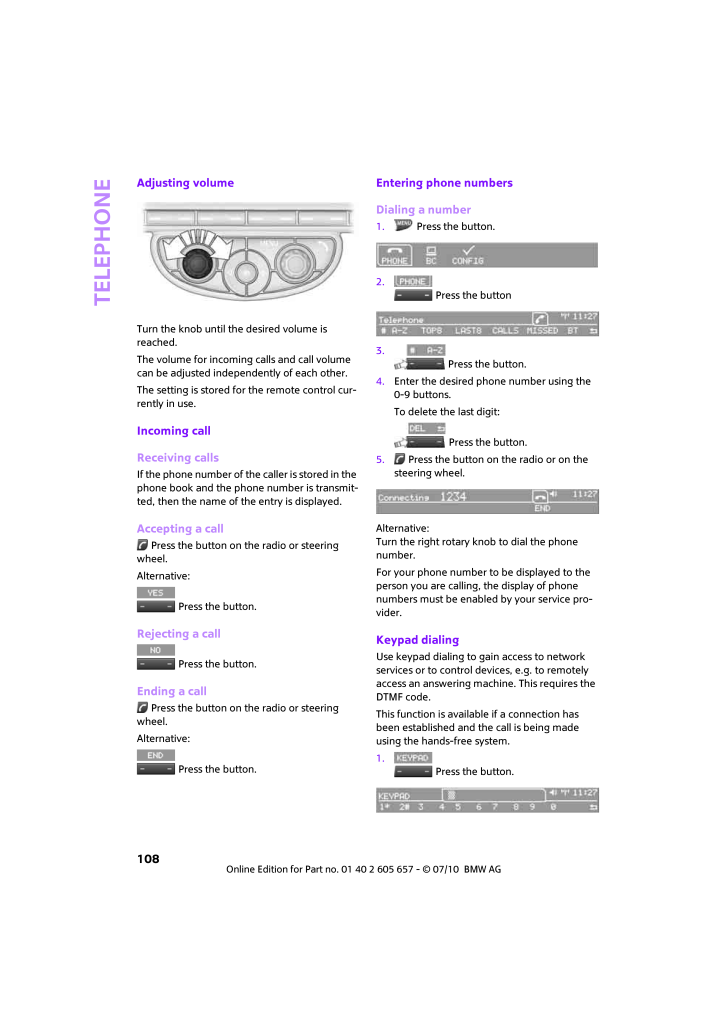

Telephone108Adjusting volumeTurn the knob until the desired volume is reached.The volume for incoming calls and call volume can be adjusted independently of each other.The setting is stored for the remote control cur-rently in use.Incoming callReceiving callsIf the phone number of the caller is stored in the phone book and the phone number is transmit-ted, then the name of the entry is displayed.Accepting a callPress the button on the radio or steering wheel.Alternative:Press the button.Rejecting a callPress the button.Ending a callPress the button on the radio or steering wheel.Alternative:Press the button.Entering phone numbersDialing a number1.Press the button.2.Press the button3.Press the button.4.Enter the desired phone number using the 0-9 buttons.To delete the last digit:Press the button.5.Press the button on the radio or on the steering wheel.Alternative:Turn the right rotary knob to dial the phone number.For your phone number to be displayed to the person you are calling, the display of phone numbers must be enabled by your service pro-vider.Keypad dialingUse keypad dialing to gain access to network services or to control devices, e.g. to remotely access an answering machine. This requires the DTMF code.This function is available if a connection has been established and the call is being made using the hands-free system.1.Press the button.
参考になったと評価
5人が参考になったと評価しています。
このマニュアルの目次
-
2 .2 ページ目のマニュアル
-
3 .CooperCooper SJohn Cooper...CooperCooper SJohn CooperWorksCongratulations on your new MINIThis Owner's Manual should be considered a permanent part of this vehicle. It should stay with the vehicle when sold to provide the next owner with important operating, safety and mainte-nance i...
-
4 .(C) 2010 Bayerische Motor...(C) 2010 Bayerische Motoren WerkeAktiengesellschaft Munich, GermanyReprinting, including excerpts, only with thewritten consent of BMW AG, Munich.US English VII/10 Printed on environmentally friendly paper,bleached without chlorine, suitable for recycling.
-
5 .3AT A GLANCE REFERENCE M...3AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSCONTENTSThe fastest way to find information on a particu-lar topic or item is by using the index, refer to page172.Using this Owner's Manual4Notes6Reporting safety defectsAT A GLANCE10Coc...
-
6 .Notes4NotesUsing this Own...Notes4NotesUsing this Owner's ManualWe have tried to make all the information in this Owner's Manual easy to find. The fastest way to find specific topics is to refer to the detailed index at the back of the manual. If you wish to gain an initial overview ...
-
7 .5AT A GLANCE REFERENCE M...5AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSFor your safetyMaintenance and repairAdvanced technology, e.g. the use of modern materials and powerful electron-ics, requires specially adapted maintenance and repair methods. Therefore,...
-
8 .Notes6Service and warrant...Notes6Service and warrantyWe recommend that you read this publication thoroughly.Your MINI is covered by the following warran-ties:>New Vehicle Limited Warranty>Rust Perforation Limited Warranty>Federal Emissions System Defect Warranty>Federal Emissions Pe...
-
9 .7AT A GLANCE REFERENCE M...7AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS
-
10 .10 ページ目のマニュアル
-
11 .AT A GLANCECONTROLSDRIVIN...AT A GLANCECONTROLSDRIVING TIPSCOMMUNICATIONSMOBILITYREFERENCEAT A GLANCE
-
12 .Cockpit10CockpitAround th...Cockpit10CockpitAround the steering wheel: Controls and displays1Adjusting the exterior mirrors, folding them in and out* 392Parking lamps73Low beams73Automatic headlamp control* 73Adaptive Light Control* 75Turn signals48High beams75Headlamp flasher 48Road...
-
13 .11AT A GLANCE REFERENCE ...11AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS3Always Open Timer 557Ignition lock448Buttons* on steering wheel9Horn: the entire surface10Adjusting the steering wheel 4011Releasing the hood 1274Tachometer12Instrument lighting 76Reset...
-
14 .Cockpit12Displays1Tachome...Cockpit12Displays1Tachometer53with indicator and warning lamps 132Display for>Current vehicle speed 53>Indicator and warning lamps 133Resetting the trip odometer 534Display for>Outside temperature 53>Position of automatic transmission* 46>Computer* 54>Date...
-
15 .13AT A GLANCE REFERENCE ...13AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSIndicator and warning lampsThe conceptIndicator and warning lamps can light up in var-ious combinations and colors in indicator area 1 or2.Some lamps are checked for proper functioning ...
-
17 .15AT A GLANCE REFERENCE ...15AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS1MINI: microphone for voice processing sys-tem* and for hands-free telephone *MINI Convertible: microphone in the steer-ing column2Indicator/warning lamp* for front passen-ger airbags714...
-
18 .18 ページ目のマニュアル
-
19 .CONTROLSAT A GLANCEDRIVIN...CONTROLSAT A GLANCEDRIVING TIPSCOMMUNICATIONSMOBILITYREFERENCECONTROLS
-
20 .Opening and closing18Open...Opening and closing18Opening and closingKeys/remote controlsRemote controlEach remote control contains a rechargeable battery that is recharged when it is in the igni-tion lock while the car is being driven. You should therefore use each remote control at ...
-
21 .19AT A GLANCE REFERENCE ...19AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSPersonal Profile settingsFor more information on specific settings, refer to the specified pages.>Response of the central locking system when the car is being unlocked 19>Automatic locki...
-
22 .Opening and closing201.Sw...Opening and closing201.Switch on the ignition, refer to page 44.2.Briefly press the button in the turn signal lever repeatedly until "SET/INFO" is dis-played.3.Press and hold the button until the display changes.4.Briefly press the button repeatedly until ...
-
23 .21AT A GLANCE REFERENCE ...21AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSWatch during the closing process to be sure that no one is injured. Releasing the button interrupts the closing process.24 .Opening and closing22Malf...Opening and closing22MalfunctionsThe remote control may malfunction due to local radio waves. If this occurs, unlock and lock the car at the door lock with the integrated key.If the car can no longer be locked with a remote control, the battery in the remo...25 .23AT A GLANCE REFERENCE ...23AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSOpening and closing: from insideThe switch locks or unlocks the doors and lift-gate when the doors are closed, but the anti-theft system is not activated. The fuel filler flap remains un...26 .Opening and closing24lock...Opening and closing24locks the vehicle after some time if no door has been opened.>The central locking system automatically locks the vehicle as soon as you drive off.>The central locking system automatically locks the vehicle after some time if no door ha...27 .25AT A GLANCE REFERENCE ...25AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSClosingMake sure that the closing path of the lift-gate is clear; otherwise, injuries may occur.28 .Opening and closing26>LED...Opening and closing26>LEDs flash after unlocking until the key is inserted in the ignition, but for no longer than approx. 5 minutes: an attempt was made to tamper with the car.Tilt alarm sensorThe vehicle's inclination is monitored. The alarm is triggered...29 .27AT A GLANCE REFERENCE ...27AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSRepeat the opening or closing procedure, if nec-essary.30 .Opening and closing28Warn...Opening and closing28Warning lampsThe warning lamp comes on when an attempt is made to start the engine: the engine cannot be started. The remote control is not inside the vehicle or is malfunc-tioning. Take the remote control with you inside the vehicle o...31 .29AT A GLANCE REFERENCE ...29AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSRoller sun blindThe roller sun blind can be opened and closed independently of the glass sunroof.Following interruptions in electrical power supplyAfter a power failure, there is a possi...32 .Opening and closing30Do n...Opening and closing30Do not close the windows until the closing procedure for the convertible top is fin-ished. Otherwise, it is not ensured that the side windows will close properly against the rubber seals of the convertible top. Convertible top, refer t...33 .31AT A GLANCE REFERENCE ...31AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS>Do not mount any roof rack systems on the convertible top.>When opening the wet convertible top, e.g., after driving in the rain, water drops may enter the luggage compartment. In order...34 .Opening and closing32Inte...Opening and closing32InterruptionA convertible top which is not completely open or closed is hazardous.35 .33AT A GLANCE REFERENCE ...33AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSClosing the convertible top1.Place both hands on the convertible top on the respective side frame.2.Lift out both sides at the same time, and swing the convertible top forward onto the c...36 .Opening and closing34Inst...Opening and closing34Installing and folding up1.Push out retaining pin 2 on one side until it engages.2.Insert wind deflector with retaining pins into the openings 1 and 2 on that side of the vehicle.3.On the opposite side of the vehicle, insert the retai...37 .35AT A GLANCE REFERENCE ...35AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSAdjustmentsSitting safelyThe ideal sitting position can make a vital contri-bution to relaxed, fatigue-free driving. In con-junction with the safety belts, the head restraints and the ai...38 .Adjustments36SeatsNote be...Adjustments36SeatsNote before adjustingNever attempt to adjust your seat while the vehicle is moving. The seat could respond with unexpected movement, and the ensuing loss of vehicle control could lead to an accident.On the front passenger seat as well, do...39 .37AT A GLANCE REFERENCE ...37AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSGetting in back1.Pull up the lever on the seat backrest, arrow1.The backrest folds forward.2.Move the seat forward by pushing on the backrest, arrow2.Return seat to original positionThe ...40 .Adjustments38MINI: front1...Adjustments38MINI: front1.Pull up as far as it will go.2.Fold the backrest forward slightly.3.Press button1 and pull the head restraint out as far as it will go.4.Fold back the backrest.MINI Convertible: front1.Pull up as far as it will go.2.Fold the backr...41 .39AT A GLANCE REFERENCE ...39AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSOpening1.Grasp the belt firmly.2.Press the red button in the buckle.3.Guide the belt into its reel.MINI Convertible: rear belt guidePlease ensure that the belt guide loop, arrow, is lock...42 .Adjustments40Interior rea...Adjustments40Interior rearview mirrorTo reduce glare from vehicles behind you when you are driving at night:Turn the knob.Interior and exterior mirrors, automatic dimming feature*It is controlled by two photosensors:>inside the interior rearview mirror, ar...43 .41AT A GLANCE REFERENCE ...41AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSTransporting children safelyThe right place for childrenDo not leave children unattended in the vehicle; otherwise, they could endanger themselves and/or other persons by opening the doo...44 .Transporting children saf...Transporting children safely42To lock the safety belt1.Secure the child restraint system with the belt.2.Pull the belt strap all the way out.3.Allow the belt strap to retract and pull it taut against the child restraint system.The safety belt is locked.To ...45 .43AT A GLANCE REFERENCE ...43AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS1.Push the head restraint upward.2.Guide the tether strap between the head restraint holders.3.Attach the tether strap to the anchor using the hook.4.Push the head restraint into its low...46 .Driving44DrivingIgnition ...Driving44DrivingIgnition lockInserting the key into the ignition lockInsert the key all the way into the ignition lock.Radio readinessIndividual electrical consumers can operate.Removing the key from the ignition lockPress in the key briefly. It is ejected...47 .45AT A GLANCE REFERENCE ...45AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSStarting the engineDo not allow the engine to run in enclosed areas; otherwise, inhalation of the noxious exhaust gases can lead to loss of consciousness and death. Exhaust gases contain...48 .Driving46ReleasingPull sl...Driving46ReleasingPull slightly upward, press the button and lower the lever.In exceptional cases, if the parking brake has to be used to slow or stop the car, do not pull the lever up too hard. In doing so, con-tinuously press the button of the parking br...49 .47AT A GLANCE REFERENCE ...47AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSTo prevent the vehicle from creeping after you select a driving position, depress the brake until you are ready to start.50 .Driving48If you do not sh...Driving48If you do not shift gears with the shift paddles or accelerate for a certain amount of time, the transmission automatically returns to D, auto-matic drive.>Pull one of the shift paddles.Transmission shifts up.>Push one of the shift paddles.Transmi...51 .49AT A GLANCE REFERENCE ...49AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS1.Switch on the ignition, refer to page 44.2.Briefly press the button in the turn signal lever repeatedly until "SET/INFO" is dis-played.3.Press and hold the button until the display cha...52 .Driving50If the car is eq...Driving50If the car is equipped with a rain sensor, the time between wipes is controlled automatically and depends on the intensity of the rainfall. The rain sensor is mounted on the windshield, directly in front of the interior rearview mirror.Activating ...53 .51AT A GLANCE REFERENCE ...51AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSWindow washer nozzlesThe window washer nozzles are heated auto-matically* while the engine is running or the ignition is switched on.MINI: rear window wiper0Rear wipers parked1To switch ...54 .Driving52Activating1Resum...Driving52Activating1Resuming cruise control2Activating/deactivating cruise control3Maintaining, storing and increasing speed4Maintaining, storing and decreasing speedIndicator lamp in the speedometer lights up. The cruise control system is ready and can be...55 .53AT A GLANCE REFERENCE ...53AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSControls overviewTachometerNever operate the engine with the needle in the red overspeed zone of the gauge. In this range, the fuel supply is interrupted to protect the engine.Displays i...56 .Controls overview54Reserv...Controls overview54ReserveOnce the fuel level has fallen to the reserve zone of approx. 2.1 gallons/8 liters, the remaining indicator lamps change from orange to red, arrow. The tachometer displays the remaining cruising range. An indicator lamp comes on w...57 .55AT A GLANCE REFERENCE ...55AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSAlways Open TimerIf driving the MINI Convertible with its soft top down, the driving times are displayed digitally on the tachometer.The following driving times are displayed:1Total driv...58 .Controls overview56Settin...Controls overview56Settings and informationOperating principleCertain settings and information are only avail-able when the ignition is switched on, the vehi-cle is at a standstill and the doors are closed.1Button for:>Selecting display>Setting values>Conf...59 .57AT A GLANCE REFERENCE ...57AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSExiting displays1.Briefly press the button in the turn signal lever repeatedly until "HOME" is displayed.2.Press the button for a longer period.Current vehicle speed is once again displa...60 .Controls overview587.Pres...Controls overview587.Press and hold the button until the display changes.8.Press the button briefly to change the for-mat or unit of measure.9.Press and hold the button until the display changes.The settings are stored.Resetting to factory settingsThe sett...61 .59AT A GLANCE REFERENCE ...59AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS1.Switch on the ignition, refer to page 44.2.Briefly press the button in the turn signal lever repeatedly until "SET/INFO" is dis-played.3.Press and hold the button until the display cha...62 .Controls overview60ClockS...Controls overview60ClockSetting the timeSetting time, refer to owner's manual for Radio Boost CD.DateSetting dateSetting date, refer to owner's manual for Radio Boost CD.Check ControlThe conceptThe Check Control monitors vehicle functions and alerts you to...63 .61AT A GLANCE REFERENCE ...61AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSViewing stored Check Control messagesStored Check Control messages can only be dis-played if the driver's door is closed.1.Briefly press the button in the turn signal lever repeatedly un...64 .Technology for driving co...Technology for driving comfort and safety62Technology for driving comfort and safetyPark Distance Control PDC*The conceptPDC assists you with parking in reverse. Acoustic signals warn you of the presence of an object behind the vehicle. To measure the dist...65 .63AT A GLANCE REFERENCE ...63AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSin hazardous driving thereby running the risk of an accident.66 .Technology for driving co...Technology for driving comfort and safety64Activating DTCPress the button, the indicator lamp for DTC lights up in the display elements and TRACTION is displayed in the tachometer.For better controlIf the indicator lamp flashes: DTC controls the driving an...67 .65AT A GLANCE REFERENCE ...65AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSActivating the systemPress the SPORT button.The LED lights up.SPORT is briefly displayed in the tachometer.Deactivating the system>Press the SPORT button again.>Switch off the engine.Fla...68 .Technology for driving co...Technology for driving comfort and safety664.Briefly press the button repeatedly until the corresponding symbol and "RESET" are dis-played.5.Press and hold the button until the display changes.6.Start driving.Initialization is completed while the car is on...69 .67AT A GLANCE REFERENCE ...67AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSAdapt your driving style accordingly. Avoid turn-ing abruptly and driving over obstacles such as curbs, potholes, etc.Since the possible driving distance depends to a considerable degree...70 .Technology for driving co...Technology for driving comfort and safety68The Tire Pressure Monitor can be reset by selecting "RESET".5.Press and hold the button until "RESETTING" is displayed.6.Start driving.After driving a few minutes, the set inflation pressures in the tires are acce...71 .69AT A GLANCE REFERENCE ...69AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSContinued driving with a flat tireWhen driving with a damaged tire:1.Avoid sudden braking and steering maneu-vers.2.Do not exceed a speed of 50 mph/80 km/h.3.At the next opportunity, che...72 .Technology for driving co...Technology for driving comfort and safety70tute for proper tire maintenance, and it is the driver's responsibility to maintain correct tire pressure, even if underinflation has not reached the level at which the TPMS low tire pressure tell-tale illuminates...73 .71AT A GLANCE REFERENCE ...71AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSintegral side airbags to the front seats. Do not hang items of clothing such as coats or jackets over the backrests. Do not attempt to remove the airbag retention system from the vehicle...74 .Technology for driving co...Technology for driving comfort and safety72The front and side airbags for the front pas-senger are not activated.Most child seats are detected by the system. This particularly applies to child seats that were required by NHTSA at the time of manufacture of...75 .73AT A GLANCE REFERENCE ...73AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSLampsParking lamps/low beams0Lamps off and daytime running lights1Parking lamps and daytime running lights2Low-beam headlamps and welcome lamps3Automatic headlamp control*, daytime run-n...76 .Lamps74Setting the durati...Lamps74Setting the duration or deactivating the function1.Switch on the ignition, refer to page 44.2.Briefly press the button in the turn signal lever repeatedly until "SET/INFO" is dis-played.3.Press and hold the button until the display changes.4.Briefly...77 .75AT A GLANCE REFERENCE ...75AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS4.Briefly press the button repeatedly until the symbol and "SET" are displayed.5.Press and hold the button until the display changes.6.Briefly press the button repeatedly until the displ...78 .Lamps76tery might not hav...Lamps76tery might not have enough power to start the engine.
Turn on front fog lam... 79 .77AT A GLANCE REFERENCE ...77AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSInterior lampsThe interior lamps, the footwell lamps * and the cargo area lamp are controlled automatically.To reduce the drain on the battery, a short while after the ignition is switch...80 .Climate78ClimateEquipment...Climate78ClimateEquipment versionsDepending on your vehicle's equipment, your MINI contains an air conditioner or an automatic climate control*.1Air conditioner2Automatic climate control*Air vents3Airflow directed toward the windshield and side windows4Air...81 .79AT A GLANCE REFERENCE ...79AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSAir conditioner1Air flow rate2Cooling function3Recirculated-air mode4Temperature5Rear window defroster6Air distribution7Windshield heating*Air flow rateAdjust the air flow rate. The high...82 .Climate80Air distribution...Climate80Air distributionDirect the flow of air to the windows , to the upper body area or to the footwell . Intermediate settings are possible.Windshield heating*The windshield heating is switched off automatically after a short time.The front window hea...83 .81AT A GLANCE REFERENCE ...81AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSComfortable interior climateAUTO program2 offers the ideal air distribution and air flow rate for almost all conditions, refer to AUTO program below. All you need to do is select an inte...84 .Climate82matic climate co...Climate82matic climate control does not have enough time to achieve the set temperature.85 .83AT A GLANCE REFERENCE ...83AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSPractical interior accessoriesIntegrated universal remote control*The conceptThe integrated universal remote control can replace as many as three hand-held transmitters for various remot...86 .Practical interior access...Practical interior accessories845.To program other original hand-held trans-mitters, repeat steps 3 and 4.The corresponding memory button 1 is now programmed with the signal of the original hand-held transmitter.You can operate the system with the engine ...87 .85AT A GLANCE REFERENCE ...85AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSGlove compartmentOpeningPress the button to open the cover. The light in the glove compartment comes on.ClosingFold cover up.To prevent injury in the event of an acci-dent, close the glo...88 .Practical interior access...Practical interior accessories86>When connecting two Apple devices such as an iPod via the USB audio interface and an iPhone via the snap-in adapter*, one of the respective devices will be supported for audio playback.Connecting via the USB audio interface...89 .87AT A GLANCE REFERENCE ...87AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSMINI ConvertibleThe storage compartment cannot be locked.Clothes hooksThere are clothes hooks on the grab handles in the rear passenger compartment.Items of clothing hung from the hooks ...90 .Practical interior access...Practical interior accessories88Power socket in cargo areaMINIPull out the cover.MINI ConvertiblePull out the cover.91 .89AT A GLANCE REFERENCE ...89AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS92 .92 ページ目のマニュアル93 .AT A GLANCECONTROLSDRIVIN...AT A GLANCECONTROLSDRIVING TIPSCOMMUNICATIONSMOBILITYREFERENCEDRIVING TIPS94 .Things to remember when d...Things to remember when driving92Things to remember when drivingBreak-in periodMoving parts need breaking-in time to adjust to each other. Please follow the instructions below in order to achieve the optimal service life and economy of operation for your v...95 .93AT A GLANCE REFERENCE ...93AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSHydroplaningWhen driving on wet or slushy roads, reduce road speed. If you do not, a wedge of water can form between tires and road sur-face. This situation, known as hydroplaning, can c...96 .Things to remember when d...Things to remember when driving94during brake applications to clean the rotors is not reached.Should corrosion form on the brake rotors, the brakes will tend to respond with a pulsating effect that even extended application will fail to cure.When the vehic...97 .95AT A GLANCE REFERENCE ...95AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONS1.Pull the lever, arrow 1, and fold the rear seat backrest forward.2.Fold up the lever of the backrest lock until it audibly engages, arrow 2.3.Fold back the backrest until it engages.If...98 .Things to remember when d...Things to remember when driving96When folding the backrest back into its original position, always ensure that the catch engages securely. A loose backrest might fail to prevent cargo from entering the passen-ger compartment during sudden braking or eva-si...99 .97AT A GLANCE REFERENCE ...97AT A GLANCE REFERENCE MOBILITY CONTROLS DRIVING TIPS COMMUNICATIONSMINIMINI ConvertibleSecuring cargo>Secure smaller and lighter items using retaining or draw straps*.>Heavy-duty cargo straps* for securing larger and heavier objects are available at you...100 .Things to remember when d...Things to remember when driving98When loading, make sure that there is sufficient space for the movement of the glass sunroof and that no objects protrude into the swiveling area of the liftgate; otherwise, damage can occur.Fasten roof-mounted cargo correc...ログイン
