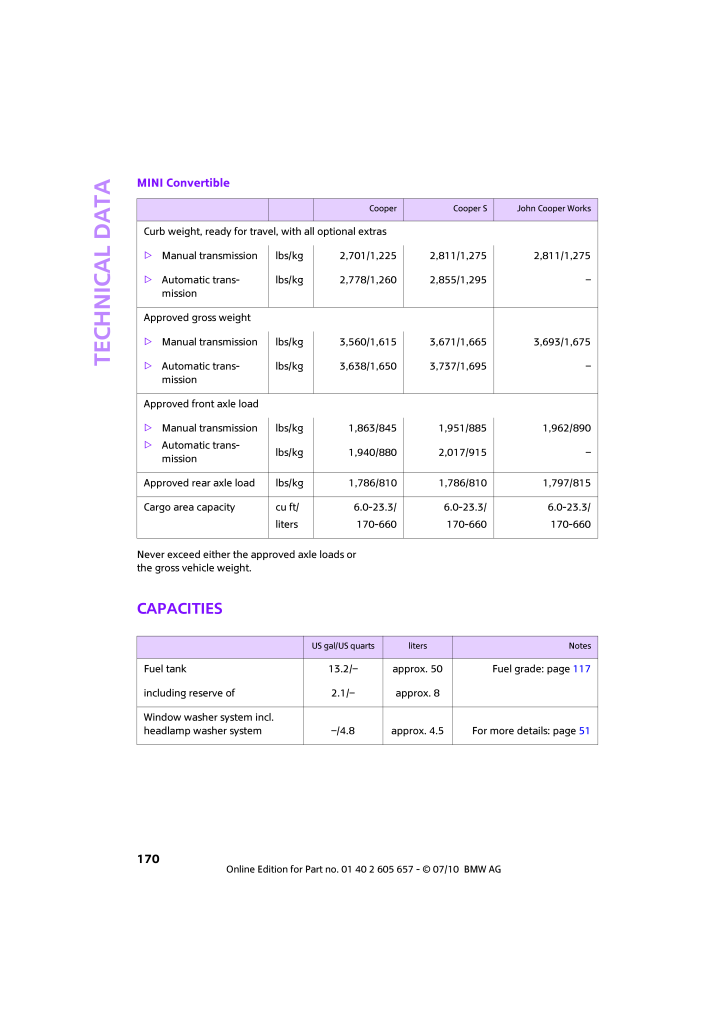

Technical data170MINI ConvertibleNever exceed either the approved axle loads or the gross vehicle weight.CapacitiesCooper Cooper S John Cooper WorksCurb weight, ready for travel, with all optional extras>Manual transmission lbs/kg 2,701/1,225 2,811/1,275 2,811/1,275>Automatic trans-mission lbs/kg 2,778/1,260 2,855/1,295 -Approved gross weight>Manual transmission lbs/kg 3,560/1,615 3,671/1,665 3,693/1,675>Automatic trans-mission lbs/kg 3,638/1,650 3,737/1,695 -Approved front axle load >Manual transmission>Automatic trans-mission lbs/kg 1,863/845 1,951/885 1,962/890lbs/kg 1,940/880 2,017/915 -Approved rear axle load lbs/kg 1,786/810 1,786/810 1,797/815Cargo area capacity cu ft/liters6.0-23.3/170-6606.0-23.3/170-6606.0-23.3/170-660US gal/US quarts liters NotesFuel tank 13.2/- approx. 50 Fuel grade: page 117including reserve of 2.1/- approx. 8Window washer system incl. headlamp washer system -/4.8 approx. 4.5 For more details: page 51
