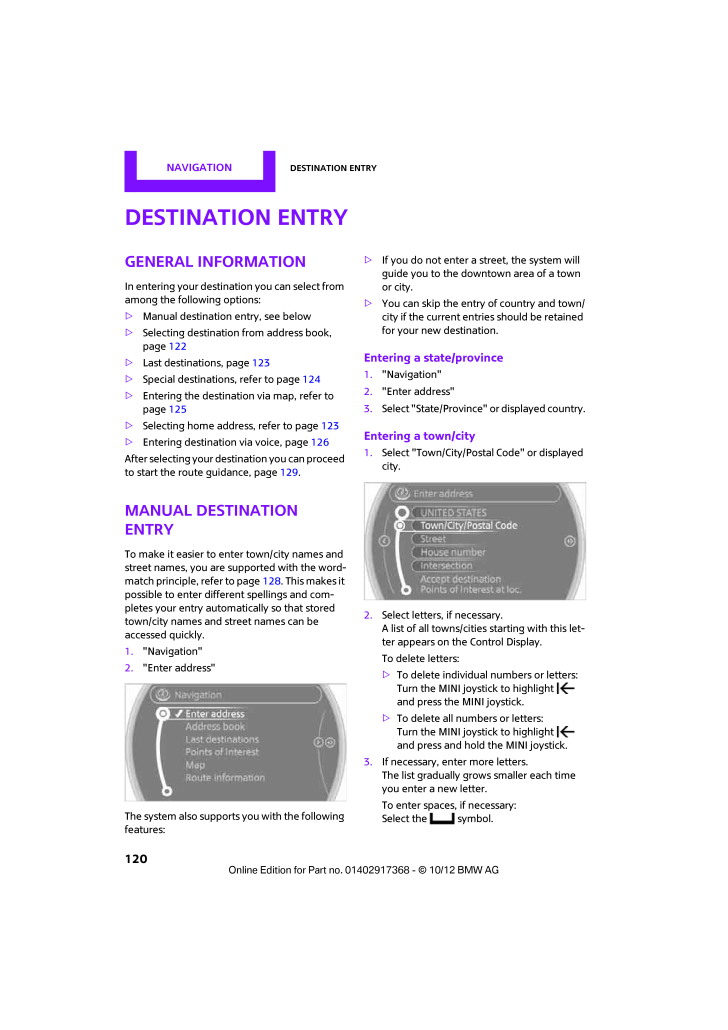

NAVIGATION Destination entry120Destination entryGeneral informationIn entering your destination you can select from among the following options:>Manual destination entry, see below>Selecting destination from address book, page122>Last destinations, page123>Special destinations, refer to page 124>Entering the destinatio n via map, refer to page125>Selecting home address, refer to page 123>Entering destinatio n via voice, page126After selecting your dest ination you can proceed to start the route guidance, page 129.Manual destination entryTo make it easier to enter town/city names and street names, you are supported with the word-match principle, refer to page 128. This makes it possible to enter different spellings and com-pletes your entry automatically so that stored town/city names and st reet names can be accessed quickly.1."Navigation"2."Enter address"The system also supports you with the following features:>If you do not enter a street, the system will guide you to the downtown area of a town or city.>You can skip the entry of country and town/city if the current entries should be retained for your new destination.Entering a state/province1."Navigation"2."Enter address"3.Select "State/Province" or displayed country.Entering a town/city1.Select "Town/City/Postal Code" or displayed city.2.Select letters, if necessary.A list of all towns/cities starting with this let-ter appears on the Control Display.To delete letters:>To delete individual numbers or letters:Turn the MINI joystick to highlight and press the MINI joystick.>To delete all numbers or letters:Turn the MINI joystick to highlight and press and hold the MINI joystick.3.If necessary, enter more letters.The list gradually grow s smaller each time you enter a new letter.To enter spaces, if necessary:Select the symbol.
