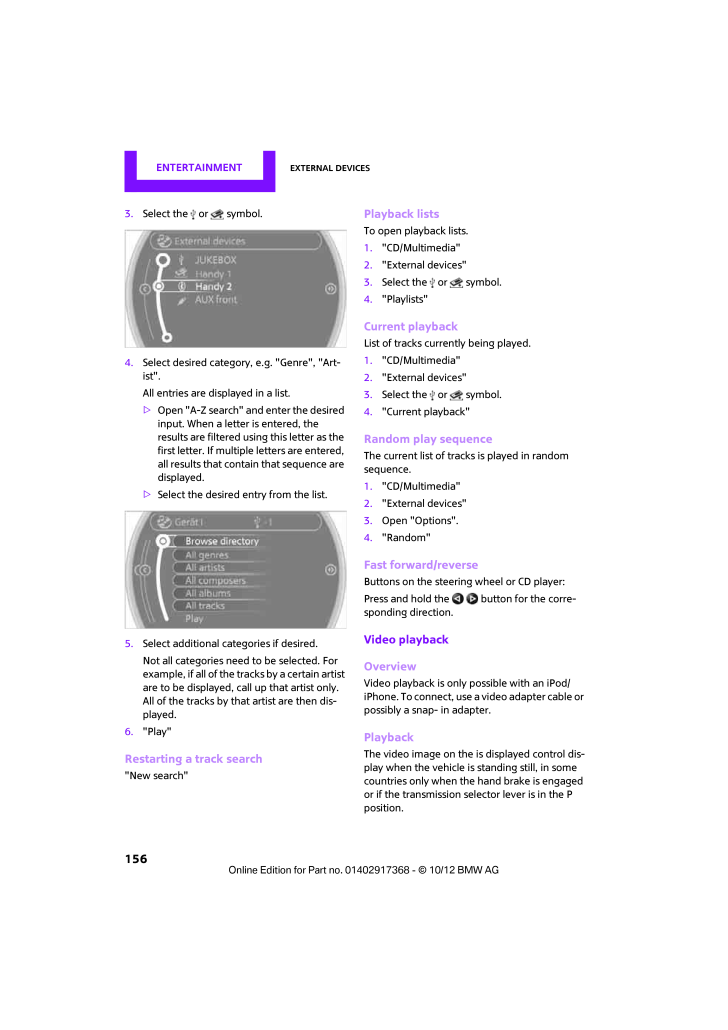

Entertainment External devices1563.Select the or symbol.4.Select desired category, e.g. "Genre", "Art-ist".All entries are displayed in a list.>Open "A-Z search" and enter the desired input. When a letter is entered, the results are filtered using this letter as the first letter. If multiple letters are entered, all results that contain that sequence are displayed.>Select the desired entry from the list.5.Select additional ca tegories if desired.Not all categories need to be selected. For example, if all of the tracks by a certain artist are to be displayed, call up that artist only. All of the tracks by that artist are then dis-played.6."Play"Restarting a track search"New search"Playback listsTo open playback lists.1."CD/Multimedia"2."External devices"3.Select the or symbol.4."Playlists"Current playbackList of tracks currently being played.1."CD/Multimedia"2."External devices"3.Select the or symbol.4."Current playback"Random play sequenceThe current list of tracks is played in random sequence.1."CD/Multimedia"2."External devices"3.Open "Options".4."Random"Fast forward/reverseButtons on the steering wheel or CD player:Press and hold the button for the corre-sponding direction.Video playbackOverviewVideo playback is only possible with an iPod/iPhone. To connect, use a video adapter cable or possibly a snap- in adapter.PlaybackThe video image on the is displayed control dis-play when the vehicle is standing still, in some countries only when the hand brake is engaged or if the transmission selector lever is in the P position.
