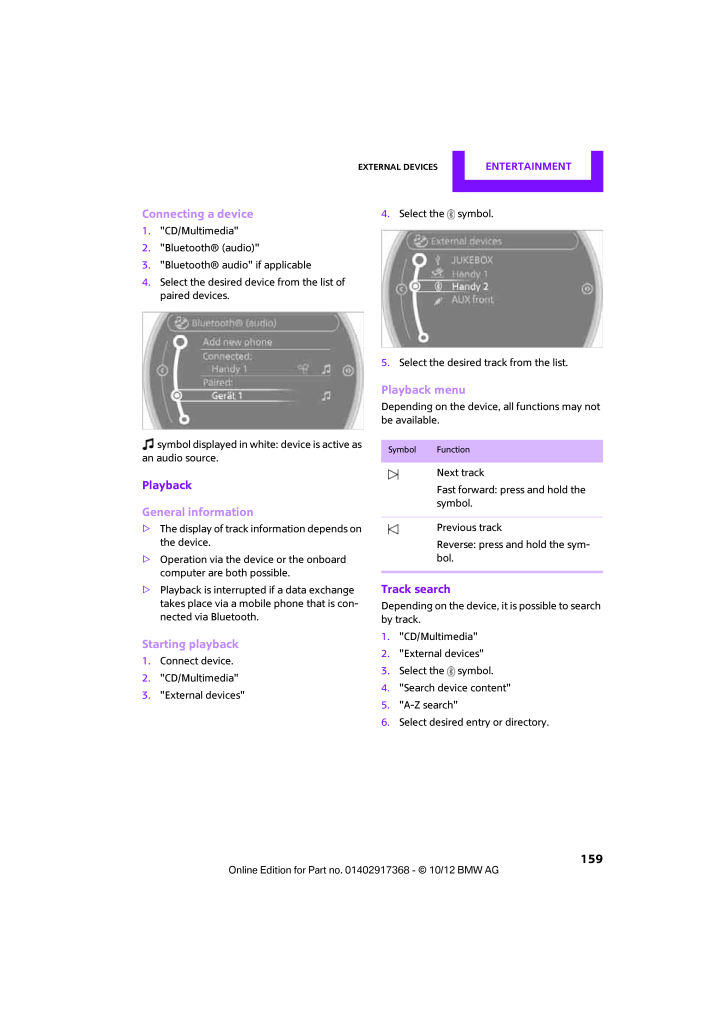

External devices Entertainment 159Connecting a device1."CD/Multimedia"2."Bluetooth(R) (audio)"3."Bluetooth(R) audio" if applicable4.Select the desired device from the list of paired devices.symbol displayed in white: device is active as an audio source.PlaybackGeneral information>The display of track in formation depends on the device.>Operation via the device or the onboard computer are both possible.>Playback is interrupted if a data exchange takes place via a mobile phone that is con-nected via Bluetooth.Starting playback1.Connect device.2."CD/Multimedia"3."External devices"4.Select the symbol.5.Select the desired track from the list.Playback menuDepending on the device, all functions may not be available.Track searchDepending on the device, it is possible to search by track.1."CD/Multimedia"2."External devices"3.Select the symbol.4."Search device content"5."A-Z search"6.Select desired entry or directory.Symbol FunctionNext trackFast forward: press and hold the symbol.Previous trackReverse: press and hold the sym-bol.
