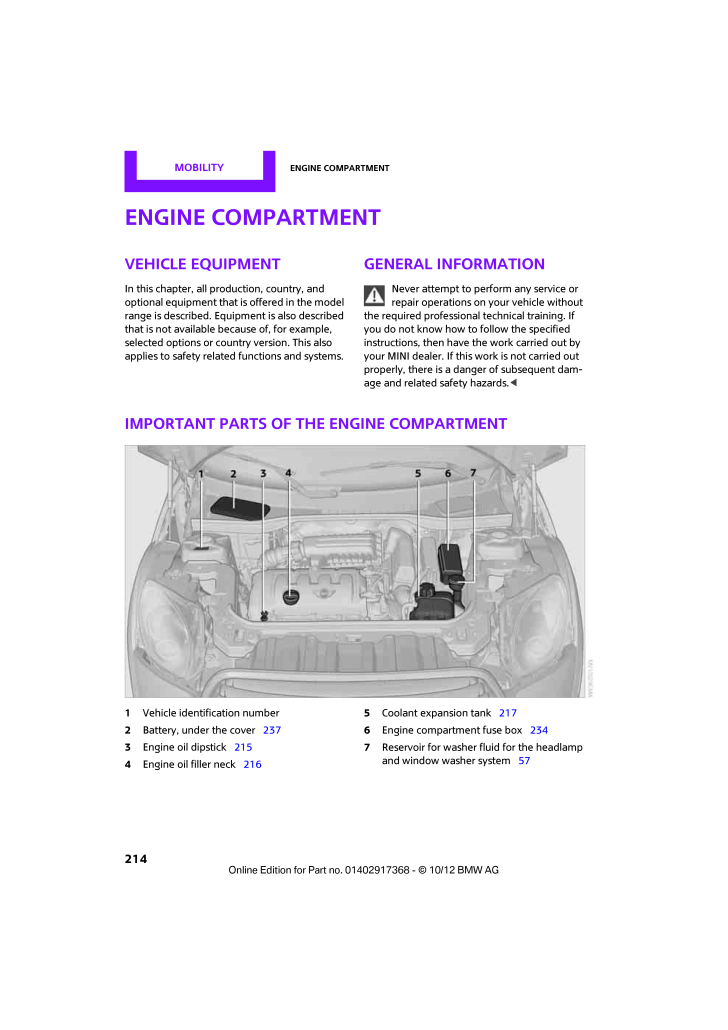

MOBILITY Engine compartment214Engine compartmentVehicle equipmentIn this chapter, all production, country, and optional equipment that is offered in the model range is described. Equi pment is also described that is not available because of, for example, selected options or coun try version. This also applies to safety relate d functions and systems.General informationNever attempt to perform any service or repair operations on your vehicle without the required professional technical training. If you do not know how to follow the specified instructions, then have the work carried out by your MINI dealer. If this work is not carried out properly, there is a dang er of subsequent dam-age and related safety hazards. <Important parts of the engine compartment1Vehicle identification number2Battery, under the cover 2373Engine oil dipstick 2154Engine oil filler neck 2165Coolant expansion tank 2176Engine compartment fuse box 2347Reservoir for washer fluid for the headlamp and window washer system 57
