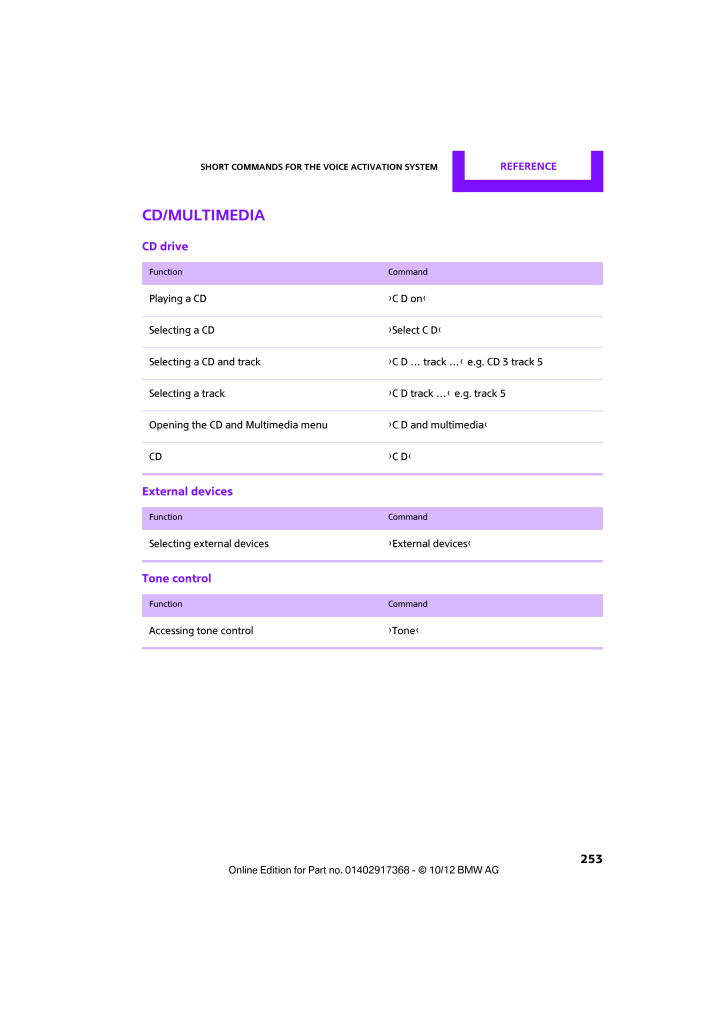

Short commands for the voice activation system REFERENCE 253CD/MultimediaCD driveExternal devicesTone controlFunction CommandPlaying a CD {C D on}Selecting a CD {Select C D}Selecting a CD and track {C D ﾁc track ﾁc} e.g. CD 3 track 5Selecting a track {C D track ﾁc} e.g. track 5Opening the CD and Multimedia menu {C D and multimedia }CD {C D}Function CommandSelecting external devices {External devices}Function CommandAccessing tone control {Tone}
