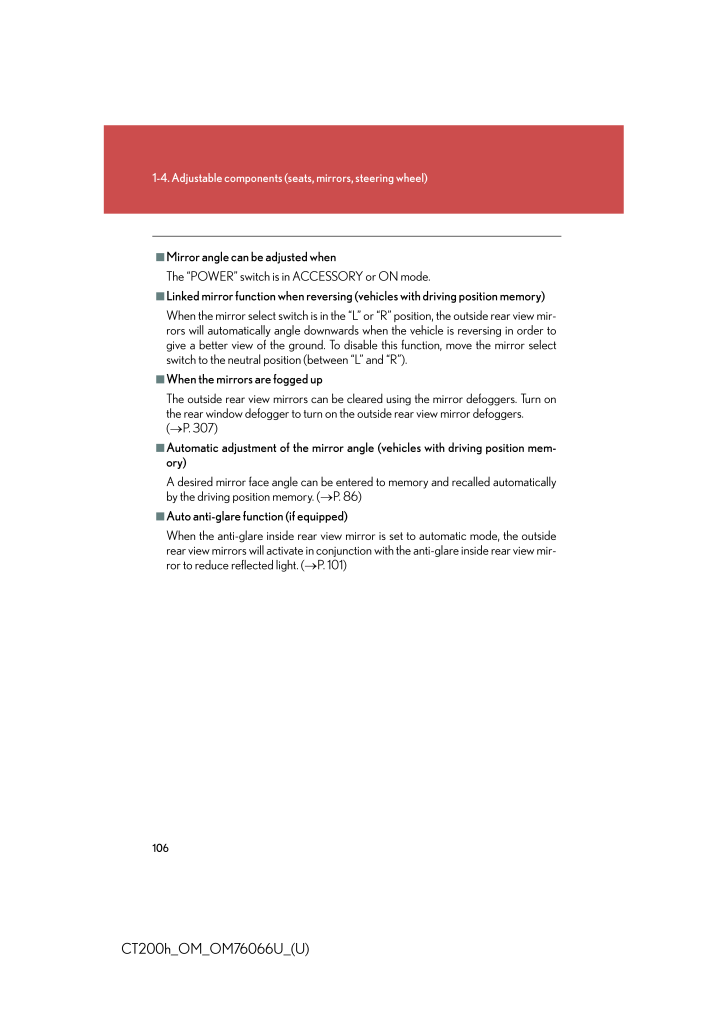

1061-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)■Mirror angle can be adjusted whenThe "POWER" switch is in ACCESSORY or ON mode.■Linked mirror function when reversing (vehicles with driving position memory)When the mirror select switch is in the "L " or "R" position, the outside rear view mir-rors will automatically angle downwards when the vehicle is reversing in order togive a better view of the ground. To disable this function, move the mirror selectswitch to the neutral position (between "L" and "R").■When the mirrors are fogged upThe outside rear view mirrors can be cleared using the mirror defoggers. Turn onthe rear window defogger to turn on the outside rear view mirror defoggers. (→P. 307)■Automatic adjustment of the mirror angle (vehicles with driving position mem-ory)A desired mirror face angle can be entered to memory and recalled automaticallyby the driving position memory. ( →P. 86)■Auto anti-glare function (if equipped)When the anti-glare inside rear view mirr or is set to automatic mode, the outsiderear view mirrors will activate in conjunction with the anti-glare inside rear view mir-ror to reduce reflected light. ( →P. 101)
