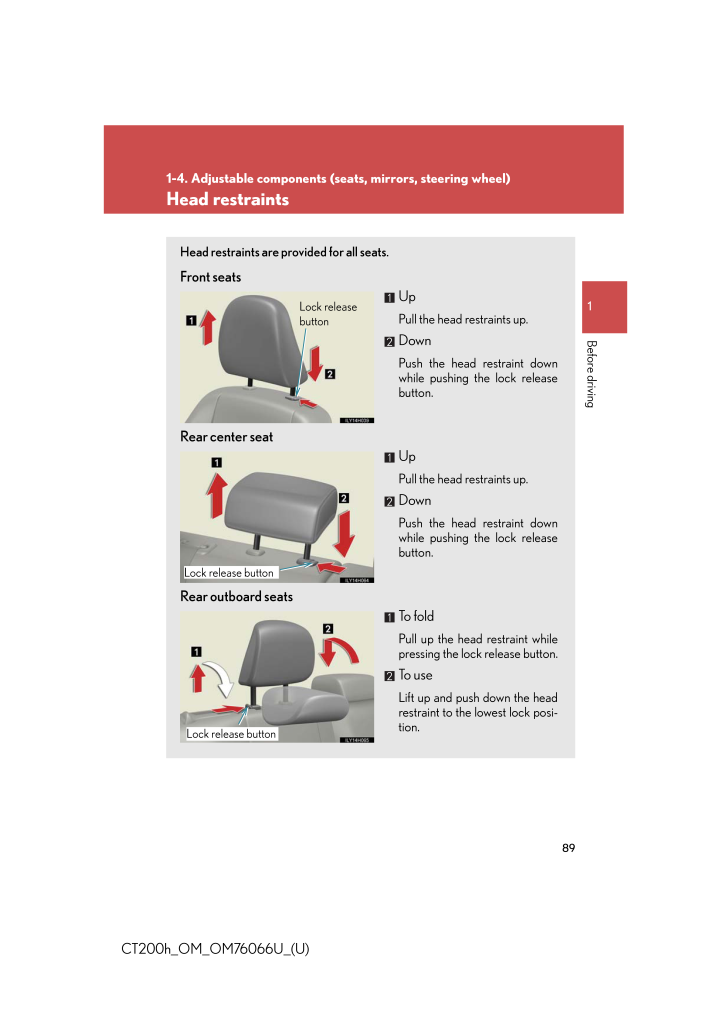

8911-4. Adjustable components (s eats, mirrors, steering wheel)Before drivingCT200h_OM_OM76066U_(U)Head restraintsHead restraints are provided for all seats.Front seatsUpPull the head restraints up.DownPush the head restraint downwhile pushing the lock releasebutton.Rear center seatUpPull the head restraints up.DownPush the head restraint downwhile pushing the lock releasebutton.Rear outboard seatsTo foldPull up the head restraint whilepressing the lock release button.To useLift up and push down the headrestraint to the lowest lock posi-tion.Lock release buttonLock release buttonLock release button
参考になったと評価
4人が参考になったと評価しています。
このマニュアルの目次
-
1 .82CT200h_OM_OM76066U_(U)1...82CT200h_OM_OM76066U_(U)1-4. Adjustable components (s eats, mirrors, steering wheel)Front seatsPower seat (for driver's side, and if equipped for passenger's side)Seat position adjustmentswitchSeat cushion (front) angleadjustment switch (fordriver's side)V...
-
2 .831-4. Adjustable compone...831-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)CAUTION■Seat adjustment●To reduce the risk of sliding under the lap belt during a collision, do not recline theseat more than necessary.If the seat is too r...
-
3 .841-4. Adjustable compone...841-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Rear seatsReturning the seatbacksTo avoid trapping the seat beltbetween the seat and the inside ofthe vehicle, pass the seat beltinside the seat belt guide and thenreturn t...
-
4 .851-4. Adjustable compone...851-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)CAUTION■When folding the rear seatbacks downObserve the following precautions. Failure to do so may result in death or seriousinjury.●Do not fold the seatba...
-
5 .861-4. Adjustable compone...861-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Driving position memory∗∗: If equippedYour preferred driving position (the position of the driver's seat and outsiderear view mirrors) can be memorized and recalled with t...
-
6 .871-4. Adjustable compone...871-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)Linking driving position memory with door unlock operation (driver'sseat only)Record your driving position to button 1, 2 or 3 before performing the fol-low...
-
7 .881-4. Adjustable compone...881-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)■Operating the driving position memory after turning the "POWER" switch offMemorized positions can be activated up to 180 seconds after the driver's door isopened and anot...
-
8 .8911-4. Adjustable compon...8911-4. Adjustable components (s eats, mirrors, steering wheel)Before drivingCT200h_OM_OM76066U_(U)Head restraintsHead restraints are provided for all seats.Front seatsUpPull the head restraints up.DownPush the head restraint downwhile pushing the lock rel...
-
9 .901-4. Adjustable compone...901-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)■Removing the head restraintsFront and rear center seatsRear outboard seats■Installing the head restraintsFront and rear center seatsRear outboard seatsPull the head restra...
-
10 .911-4. Adjustable compone...911-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)■Adjusting the height of the head restraints (front seats)■Adjusting the rear center seat head restraintAlways raise the head restraint one level from the st...
-
11 .921-4. Adjustable compone...921-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Seat beltsMake sure that all occupants are wearing their seat belts before driving thevehicle. ■Correct use of the seat belts●Extend the shoulder belt sothat it comes fully...
-
12 .931-4. Adjustable compone...931-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)Seat belt pretensioners (front seats)The pretensioner helps the seatbelt to quickly restrain the occu-pant by retracting the seat beltwhen the vehicle is sub...
-
13 .941-4. Adjustable compone...941-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Pre-collision seat belts (front seats of vehicles with pre-collision system)If the system determines that a collision is unavoidable, the front seat beltswill retract befo...
-
14 .951-4. Adjustable compone...951-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)■Child seat belt usageThe seat belts of your vehicle were princi pally designed for persons of adult size. ●Use a child restraint system appropriate for the ...
-
15 .961-4. Adjustable compone...961-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)CAUTIONObserve the following precautions to reduce the risk of injury in the event of suddenbraking, sudden swerving or an accident.Failing to do so may cause death or seri...
-
16 .971-4. Adjustable compone...971-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)CAUTION■Pregnant women■People suffering illnessObtain medical advice and wear the seat belt in the proper way. ( →P. 92)■When children are in the vehicleDo n...
-
17 .981-4. Adjustable compone...981-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)CAUTION■Seat belt pretensioners●Do not place anything, such as a cushion, on the front passenger's seat. Doing sowill disperse the passenger's weight, wh ich prevents the s...
-
18 .991-4. Adjustable compone...991-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)CAUTION■Using a seat belt extender●Do not wear the seat belt extender if you can fasten the seat belt without theextender.●Do not use the seat belt extender...
-
19 .1001-4. Adjustable compon...1001-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Steering wheelCAUTION■While drivingDo not adjust the steering wheel while driving.Doing so may cause the driver to mishandle the vehicle and cause an accident,resulting in...
-
20 .10111-4. Adjustable compo...10111-4. Adjustable components (s eats, mirrors, steering wheel)Before drivingCT200h_OM_OM76066U_(U)Inside rear view mirrorGlare from the headlights of vehicles behind can be reduced by using thefollowing functions:Manual anti-glare inside rear view mirro...
-
21 .1021-4. Adjustable compon...1021-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)Type BTurns automatic mode on/offOnOffThe indicator comes on whenautomatic mode is turned on. The mirror will revert to auto-matic mode each time the"POWER" switch is turn...
-
22 .1031-4. Adjustable compon...1031-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)Adjusting the height of rear view mirrorAdjust the height of the rear viewmirror by moving it up and down.■To prevent sensor error (vehicles with auto anti-...
-
23 .1041-4. Adjustable compon...1041-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)CAUTION■While drivingDo not adjust the position of the mirror while driving.Doing so may lead to mishandling of the vehicle and cause an accident, resulting indeath or se...
-
24 .10511-4. Adjustable compo...10511-4. Adjustable components (s eats, mirrors, steering wheel)Before drivingCT200h_OM_OM76066U_(U)Outside rear view mirrorsFolding the mirrorsPush the mirror back in the direc-tion of the vehicle's rear. Mirror angle can be adjusted using the switch.To s...
-
25 .1061-4. Adjustable compon...1061-4. Adjustable components (s eats, mirrors, steering wheel)CT200h_OM_OM76066U_(U)■Mirror angle can be adjusted whenThe "POWER" switch is in ACCESSORY or ON mode.■Linked mirror function when reversing (vehicles with driving position memory)When the mirr...
-
26 .1071-4. Adjustable compon...1071-4. Adjustable components (s eats, mirrors, steering wheel)1Before drivingCT200h_OM_OM76066U_(U)CAUTION■When driving the vehicleObserve the following precautions while driving.Failing to do so may result in loss of control of the vehicle and cause an a...
