CTの取扱説明書・マニュアル [全25ページ 1.01MB]

1 .

372CT200h_U (OM76040U)3-3. Using the Bluetooth(R) audio systemBluetooth(R) audio system■Conditions under which the system will not operate●If using a portable player that does not support Bluetooth(R)●If the portable player is switched off●If the portable ...

2 .

3733-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)■When transferring ownership of the vehicleBe sure to initialize the system to prevent personal data from being improperlyaccessed. (→P. 426)■About Bluetooth(R)■Compatible mode...

3 .

3743-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)CAUTION■FCC WARNINGAlteration or modifications carried ou t without appropriate authorization mayinvalidate the user's right to operate the equipment.This equipment complies with FCC/IC radiatio...

4 .

3753-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Using the Bluetooth(R) audio system■Audio unitType ADisplay A message, name, number,etc. is displayed.Lower-case characters andspecial characters cannot bedisplayed.Displays in...

5 .

3763-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)■Steering wheel switchesTalk switchTurns the voice command sys-tem on (press)/turns the voicecommand system off (press andhold)■Microphone

6 .

3773-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Operating the system using voice commandsBy following voice guidance instructio ns output from the speaker, voicecommands enable to the operation of the Bluetooth(R) audio syst...

7 .

3783-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Using the Bluetooth(R) audio system for the first timeBefore using the Bluetooth(R) audio system, it is necessary to register aBluetooth(R) enabled portable player in the system. Follow the proc...

8 .

3793-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Select "Confirm" using a voice command or .A passkey is displayed and heard, an d a voice guidance instruction forinputting the passkey into the portable player is heard.Input...

9 .

3803-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Menu list of the Bluetooth(R) audio system■Normal operationFirst menuSecond menuThird menu Operation detail"BTA MENU""BTA Setup""Pair Audio" Registering a portable player"Connect"Selecting a por...

10 .

3813-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)■When using a voice commandFor numbers, say a combination of si ngle digits from zero to nine.Say the command correctly and clearly.■Situations that the system may not recogniz...

11 .

3823-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Operating a Bluetooth(R) enabled portable playerType AVolumeDisplaying text messageSearch playSelecting a trackPowerRepeat playPlayback/pausePlaybackSelecting an albumBT⋅A menu knobRandom playba...

12 .

3833-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Type BDisplaying text messageSelecting a trackPower VolumeRepeat playPlayback/pauseSearch playPlaybackSelecting an albumBT⋅A menu knobRandom playback

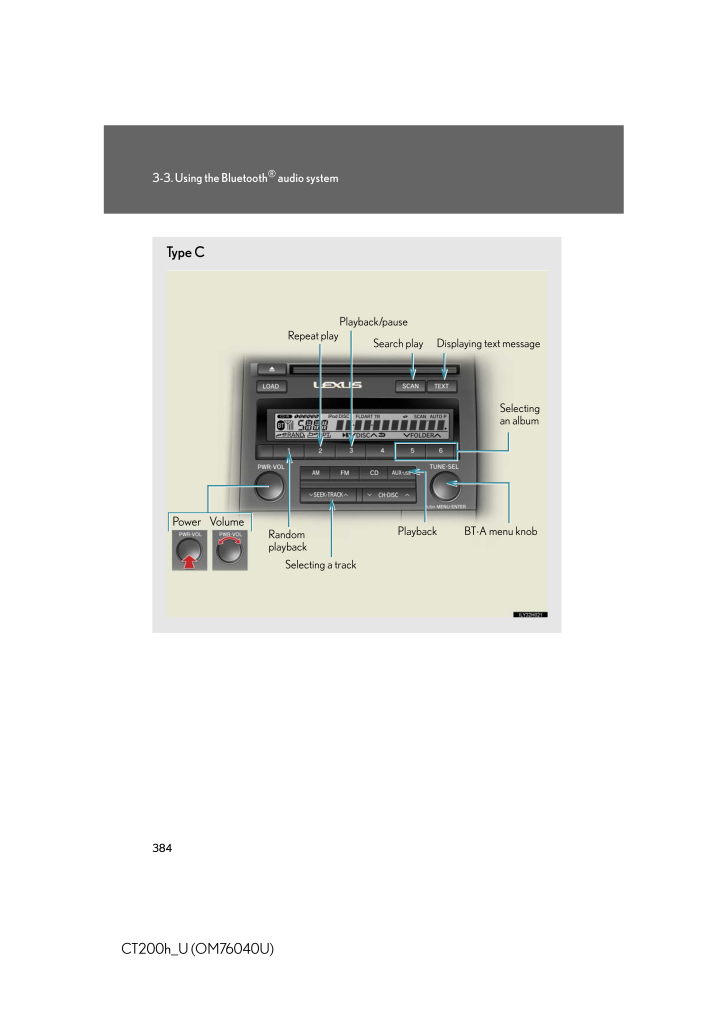

13 .

3843-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Type CDisplaying text messageSelecting a trackPower VolumeRepeat playPlayback/pauseSearch playSelecting an albumPlayback BT⋅A menu knobRandom playback

14 .

3853-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Selecting an albumType APress "∧" or "∨" on to select the desired album.Type B and CTo select the desired album, press or .Selecting tracksPress "∧" or "∨" on to select ...

15 .

3863-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Repeat playPress .To cancel, press again.Scanning tracksPress .To cancel, press again.Switching the displayPress .Each time the button is pressed, the display changes in the following orde...

16 .

3873-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Setting up a Bluetooth(R) enabled portable playerRegistering a portable player in the Bluetooth(R) audio system allows thesystem to function. The following functions can be use...

17 .

3883-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Pattern BPress (type A and B) or (type C) and select"BTA MENU" using .Press the talk switch or select "BTA Setup" using .Select one of the following functions using a voice commandor .●Reg...

18 .

3893-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Registering a portable playerSelect "Pair Audio Player (Pair Audio)" using a voice command or, and perform the procedure for registering a portable player.(→P. 378)Selecting ...

19 .

3903-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Pattern APress the talk switch and say "From Car" or "From Audio player",and select "Confirm" by using a voice command or .Pattern BSelect "From Car" or "From Audio", using .If "From Car" is s...

20 .

3913-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Changing the registered name of a portable playerSelect "Change Name" using a voice command or .Pattern ASelect the name of the portable player to be changed by either ofthe ...

21 .

3923-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Listing the registered portable playersSelect "List Audio Players (List Audios)" using a voice command or. The list of registered portable players will be read aloud.When listing is complete, t...

22 .

3933-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Changing the passkeySelect "Set Passkey" using a voice command or .Pattern APress the talk switch, say a 4 to 8-digit number, and select"Confirm" using a voice command or .T...

23 .

3943-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Deleting a registered portable playerSelect "Delete Audio Player (D elete Audio)" using a voice com-mand or .Pattern ASelect the portable player to be deleted by either of the followingmethods ...

24 .

3953-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)■The number of portable players that can be registeredUp to 2 portable players can be registered in the system.

25 .

3963-3. Using the Bluetooth(R) audio systemCT200h_U (OM76040U)Bluetooth(R) audio system setup■System setup items and operation proceduresTo enter the menu for each function , follow the steps below using avoice command or : (→P. 422)●Setting voice guidanc...
