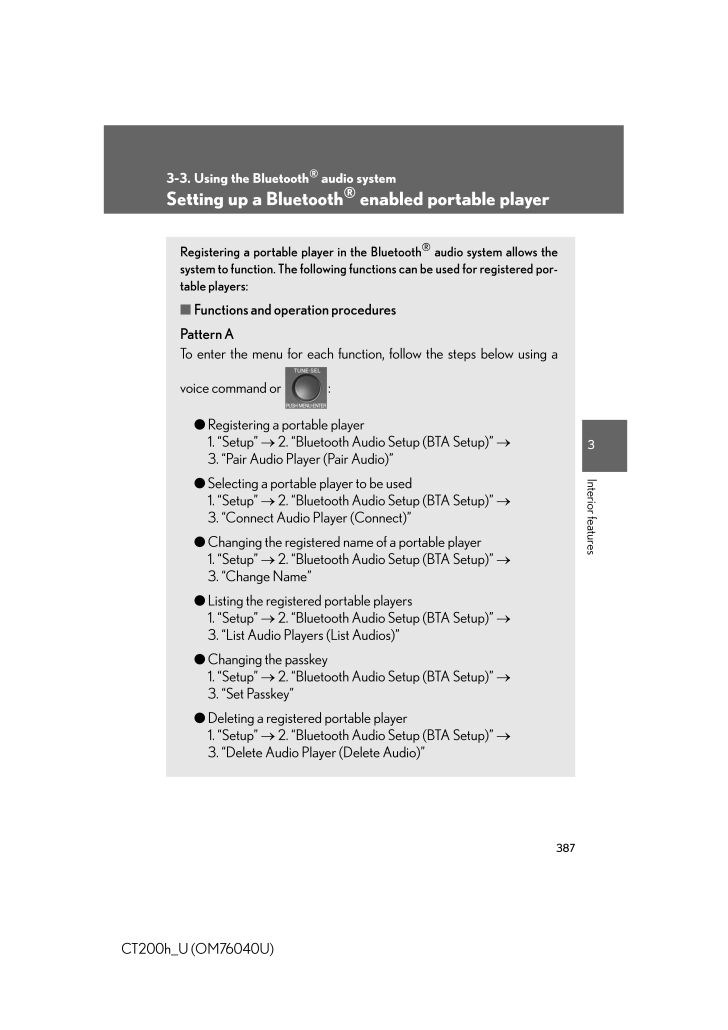

3873-3. Using the Bluetooth(R) audio system3Interior featuresCT200h_U (OM76040U)Setting up a Bluetooth(R) enabled portable playerRegistering a portable player in the Bluetooth(R) audio system allows thesystem to function. The following functions can be used for registered por-table players:■Functions and operation proceduresPattern ATo enter the menu for each function , follow the steps below using avoice command or :●Registering a portable player 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "Pair Audio Player (Pair Audio)"●Selecting a portable player to be used 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "Connect Audio Player (Connect)"●Changing the registered name of a portable player 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "Change Name"●Listing the registered portable players 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "List Audio Players (List Audios)"●Changing the passkey 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "Set Passkey"●Deleting a registered portable player 1. "Setup" → 2. "Bluetooth Audio Setup (BTA Setup)" → 3. "Delete Audio Player (Delete Audio)"
