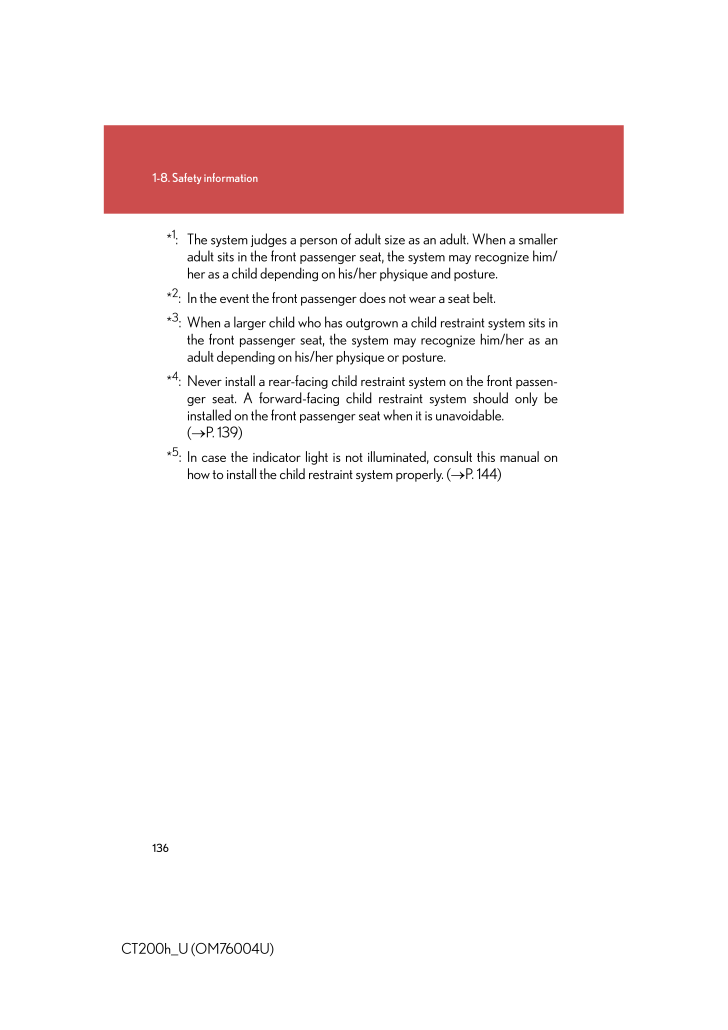

1361-8. Safety informationCT200h_U (OM76004U)*1: The system judges a person of adul t size as an adult. When a smaller adult sits in the front passenger se at, the system may recognize him/her as a child depending on his/her physique and posture.*2: In the event the front passenger does not wear a seat belt.*3: When a larger child who has outgrow n a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her physique or posture.*4: Never install a rear-facing child re straint system on the front passen-ger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (→P. 139)*5: In case the indicator light is not illuminated, consult this manual on how to install the child restraint system properly. ( →P. 144)
