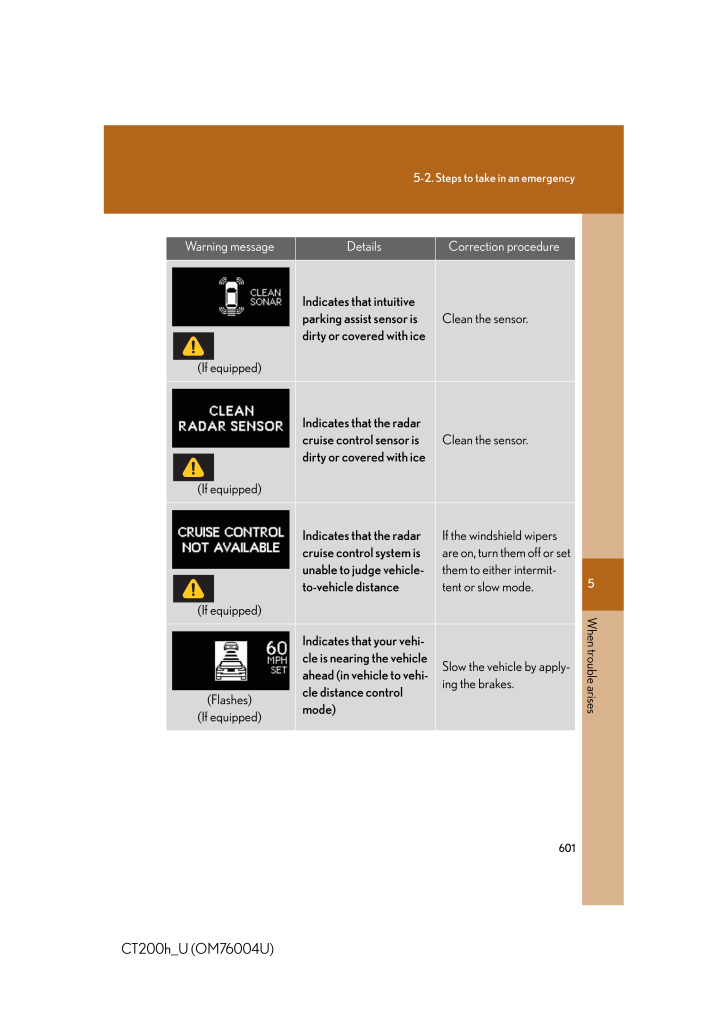

5When trouble arises6015-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(If equipped)Indicates that intuitive parking assist sensor is dirty or covered with iceClean the sensor.(If equipped)Indicates that the radar cruise control sensor is dirty or covered with iceClean the sensor.(If equipped)Indicates that the radar cruise control system is unable to judge vehicle-to-vehicle distanceIf the windshield wipers are on, turn them off or set them to either intermit-tent or slow mode.(Flashes)(If equipped)Indicates that your vehi-cle is nearing the vehicle ahead (in vehicle to vehi-cle distance control mode)Slow the vehicle by apply-ing the brakes.
