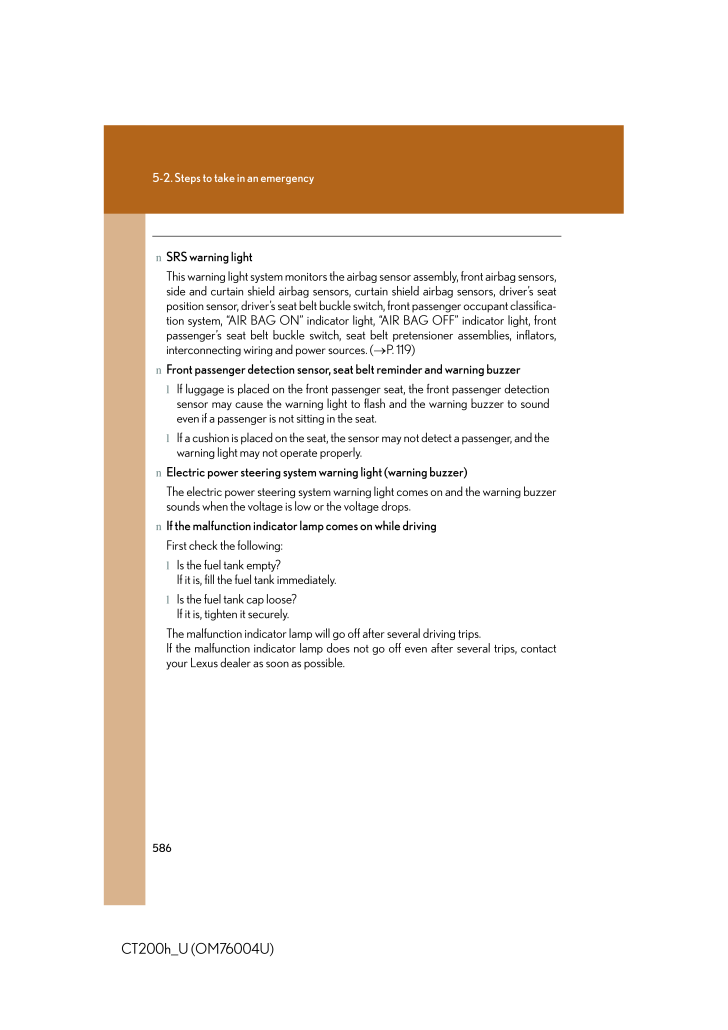

5865-2. Steps to take in an emergencyCT200h_U (OM76004U)nSRS warning lightThis warning light system monitors the airb ag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, curt ain shield airbag sensors, driver's seat position sensor, driver's seat belt buckle switch, front passenger occupant classifica-tion system, "AIR BAG ON" indicator ligh t, "AIR BAG OFF" indicator light, front passenger's seat belt buckle switch, seat belt pretensioner assemblies, inflators, interconnecting wiring and power sources. ( →P. 119)nFront passenger detection sensor, seat belt reminder and warning buzzerlIf luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash and the warning buzzer to sound even if a passenger is not sitting in the seat.lIf a cushion is placed on the seat, the sensor may not detect a passenger, and the warning light may not operate properly.nElectric power steering system warning light (warning buzzer)The electric power steering system warnin g light comes on and the warning buzzer sounds when the voltage is low or the voltage drops.nIf the malfunction indicator lamp comes on while drivingFirst check the following:lIs the fuel tank empty? If it is, fill the fuel tank immediately.lIs the fuel tank cap loose? If it is, tighten it securely.The malfunction indicator lamp will go off after several driving trips. If the malfunction indicator lamp does not go off even after several trips, contact your Lexus dealer as soon as possible.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .580CT200h_U (OM76004U)5-2...580CT200h_U (OM76004U)5-2. Steps to take in an emergencyIf a warning light turns on or a warning buzzer soundsStop the vehicle immediately. Continuing to drive the vehicle may be dangerous.The following warning indicates a possible problem in the brake sy...
-
2 .5When trouble arises5815-...5When trouble arises5815-2. Steps to take in an emergencyCT200h_U (OM76004U)Stop the vehicle immediately.The following warning indicates the po ssibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place an...
-
3 .5825-2. Steps to take in ...5825-2. Steps to take in an emergencyCT200h_U (OM76004U)Have the vehicle inspected by y our Lexus dealer immediately.Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have...
-
4 .5When trouble arises5835-...5When trouble arises5835-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning light Warning light/Details(Flashes)Pre-collision system warning light (if equipped)Indicates a malfunction in the pre-collision systemSlip indicator light Indicates a malf...
-
5 .5845-2. Steps to take in ...5845-2. Steps to take in an emergencyCT200h_U (OM76004U)Follow the correction procedures.After taking the specified steps to co rrect the suspected problem, check that the warning light goes off.Warning light Warning light/Details Correction procedureOpen ...
-
6 .5When trouble arises5855-...5When trouble arises5855-2. Steps to take in an emergencyCT200h_U (OM76004U)*1: Open door warning buzzer:→P. 597*2:Driver's seat belt buzzer:The driver's seat belt buzzer sounds to aler t the driver that his or her seat belt is not fastened. Once the "POWE...
-
7 .5865-2. Steps to take in ...5865-2. Steps to take in an emergencyCT200h_U (OM76004U)nSRS warning lightThis warning light system monitors the airb ag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, curt ain shield airbag sensors, driver's seat position s...
-
8 .5When trouble arises5875-...5When trouble arises5875-2. Steps to take in an emergencyCT200h_U (OM76004U)nChanging the engine oil (U.S.A. only)Make sure to reset the oil change system. ( →P. 502)nWhen the tire pressure warning light comes onCheck the tire inflation pressure and adjust...
-
9 .5885-2. Steps to take in ...5885-2. Steps to take in an emergencyCT200h_U (OM76004U)nIf the tire pressure warning system is not functioningThe tire pressure warning system will be disabled in the following conditions:(When the condition becomes normal, the system will work properly.)...
-
10 .5When trouble arises5895-...5When trouble arises5895-2. Steps to take in an emergencyCT200h_U (OM76004U)nIf the tire pressure warning light comes on after flashing frequently for 1 minuteIf the tire pressure warning light comes on after flashing frequently for 1 minute when the "PO...
-
11 .5905-2. Steps to take in ...5905-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnIf both the ABS and the brake system warning lights remain onStop your vehicle in a safe place immediately and contact your Lexus dealer. The vehicle will become extremely unstable during bra...
-
12 .5When trouble arises5915-...5When trouble arises5915-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnMaintenance of the tiresEach tire, including the spare (if provided ), should be checked monthly when cold and inflated to the inflation pressure re commended by the vehicl...
-
13 .5925-2. Steps to take in ...5925-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONTPMS (tire pressure warning system) malfunctions may occur for a variety of rea-sons, including the installation of replacem ent or alternate tires or wheels on the vehicle that prevent the TPM...
-
14 .5When trouble arises5935-...5When trouble arises5935-2. Steps to take in an emergencyCT200h_U (OM76004U)If a warning message is displayedIf a warning is shown on the multi-information display, stay calm and per-form the following actions:Master warning lightThe master warning light a...
-
15 .5945-2. Steps to take in ...5945-2. Steps to take in an emergencyCT200h_U (OM76004U)Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. The following warning ind icates the possibility of damage to the vehicle that may lead ...
-
16 .5When trouble arises5955-...5When trouble arises5955-2. Steps to take in an emergencyCT200h_U (OM76004U)Have the vehicle inspected immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. Failure to investigate the cause of the following warning...
-
17 .5965-2. Steps to take in ...5965-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details(Flashes)(If equipped)Indicates a malfunction in the pre-collision system(If equipped)Indicates a malfunction in the intuitive parking assistThe malfunctioning assist-sensor is ...
-
18 .5When trouble arises5975-...5When trouble arises5975-2. Steps to take in an emergencyCT200h_U (OM76004U)Follow the correction procedures.A buzzer sounds and a warning message is shown on the multi-informa-tion display. After taking the spec ified steps to correct the suspected probl...
-
19 .5985-2. Steps to take in ...5985-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedureIndicates that the hood is not fully closedClose the hood.Indicates that the back door is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/h),...
-
20 .5When trouble arises5995-...5When trouble arises5995-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(Flashes)Indicates that the moon roof is not fully closed (with the "POWER" switch off, and the driver's door open)Close the moon roof.(...
-
21 .6005-2. Steps to take in ...6005-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(U.S.A. only)Indicates that the engine oil is scheduled to be changedComes on approxi-mately 4500 miles (7200 km) after the engine oil is changed. (The indi...
-
22 .5When trouble arises6015-...5When trouble arises6015-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(If equipped)Indicates that intuitive parking assist sensor is dirty or covered with iceClean the sensor.(If equipped)Indicates that the...
-
23 .6025-2. Steps to take in ...6025-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(Flashes)(If equipped)Indicates that there is a high possibility of a fron-tal collision, or that the pre-collision braking function is operatingSlow the ve...
-
24 .5When trouble arises6035-...5When trouble arises6035-2. Steps to take in an emergencyCT200h_U (OM76004U)Warning message Details Correction procedure(Flashes)Indicates that the driver's door was opened with the shift position in any posi-tion other than PShift the shift position to P....
-
25 .6045-2. Steps to take in ...6045-2. Steps to take in an emergencyCT200h_U (OM76004U)*: For the EV drive mode operating conditions ( →P. 174).Warning message Details Correction procedure(Flashes 3 times)Indicates that the EV drive mode has been automatically cancelled*The reason the E...
-
26 .5When trouble arises6055-...5When trouble arises6055-2. Steps to take in an emergencyCT200h_U (OM76004U)Follow the correction procedures.A warning message is shown on the mu lti-information display. After tak-ing the specified steps to correct the suspected problem, check that the w...
-
27 .6065-2. Steps to take in ...6065-2. Steps to take in an emergencyCT200h_U (OM76004U)Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check that the warning message and light go off.Interior buzzerExterior buzzerWarning mess...
-
28 .5When trouble arises6075-...5When trouble arises6075-2. Steps to take in an emergencyCT200h_U (OM76004U)Once 3 times(Flashes)The electronic key was carried out-side the vehicle and a door other than the driver's door was opened and closed while the "POWER" switch was in a mode other ...
-
29 .6085-2. Steps to take in ...6085-2. Steps to take in an emergencyCT200h_U (OM76004U)OnceCon-tinuous(Displayed alternately)(Flashes)An attempt was made to exit the vehicle with the electronic key and lock the doors without first turn-ing the "POWER" switch off.Turn the "POWER" switch ...
-
30 .5When trouble arises6095-...5When trouble arises6095-2. Steps to take in an emergencyCT200h_U (OM76004U)Con-tinuous⎯(Flashes)The driver's door was opened while any shift position other than P was selected without turning off the "POWER" switch.Shift the shift posi-tion to P.Con-tinuo...
-
31 .6105-2. Steps to take in ...6105-2. Steps to take in an emergencyCT200h_U (OM76004U)OnceCon-tinuous(Flashes)*An attempt was made to lock the doors using the smart access system with push-button start while the electronic key was still inside the vehicle.*An attempt was made to lock e...
-
32 .5When trouble arises6115-...5When trouble arises6115-2. Steps to take in an emergencyCT200h_U (OM76004U)Once ⎯(Flashes)*When the doors were unlocked with the mechanical key and then the "POWER" switch was pressed, the electronic key could not be detected in the vehicle. *The electron...
-
33 .6125-2. Steps to take in ...6125-2. Steps to take in an emergencyCT200h_U (OM76004U)⎯ ⎯Power was turned off due to the automatic power off function.Next time when starting the hybrid system, increase the engine speed slightly and main-tain that level for approximately 5 minutes to re...
-
34 .5When trouble arises6135-...5When trouble arises6135-2. Steps to take in an emergencyCT200h_U (OM76004U)Once ⎯(Flashes)The driver's door was opened and closed with the "POWER" switch turned off and then the "POWER" switch was put in ACCESSORY mode twice with-out the hybrid sys-tem be...
-
35 .6145-2. Steps to take in ...6145-2. Steps to take in an emergencyCT200h_U (OM76004U)nWarning message in radar cruise modeIn the following cases, the warning message may not be displayed even if vehicle-to-vehicle distance decreases:lWhen your vehicle and the vehicle ahead are traveli...
-
36 .5When trouble arises6155-...5When trouble arises6155-2. Steps to take in an emergencyCT200h_U (OM76004U)If you have a flat tireRemove the flat tire and replace it with the spare tire provided.nBefore jacking up the vehiclelStop the vehicle on a hard, flat surface.lSet the parking bra...
-
37 .6165-2. Steps to take in ...6165-2. Steps to take in an emergencyCT200h_U (OM76004U)Taking out the jackRemove the center deck board.Remove the center auxiliary box.Take out the jack.For looseningFor tighteningSTEP 1STEP 2STEP 3
-
38 .5When trouble arises6175-...5When trouble arises6175-2. Steps to take in an emergencyCT200h_U (OM76004U)Taking out the spare tireRemove the center deck board and center auxiliary box. (See "Taking out the jack" for details.)Loosen the center fastener that secures the spare tire.STEP ...
-
39 .6185-2. Steps to take in ...6185-2. Steps to take in an emergencyCT200h_U (OM76004U)Replacing a flat tireChock the tires.For vehicles with 15 inch wheels, remove the wheel ornament using the wrench.To protect the wheel ornament, place a rag between the wrench and the wheel ornament.S...
-
40 .5When trouble arises6195-...5When trouble arises6195-2. Steps to take in an emergencyCT200h_U (OM76004U)Turn the tire jack portion "A" by hand until the notch of the jack is in contact with the jack point.The jack point guides are located under the rocker panel. They indi-cate the ja...
-
41 .6205-2. Steps to take in ...6205-2. Steps to take in an emergencyCT200h_U (OM76004U)Installing the spare tireRemove any dirt or foreign matter from the wheel contact surface.If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, c...
-
42 .5When trouble arises6215-...5When trouble arises6215-2. Steps to take in an emergencyCT200h_U (OM76004U)Firmly tighten each wheel nut two or three times in the order shown in the illustration.Tightening torque: 76 ft*lbf (103 N*m, 10.5 kgf*m)Stow the flat tire, tire jack and all tool...
-
43 .6225-2. Steps to take in ...6225-2. Steps to take in an emergencyCT200h_U (OM76004U)Pass the belt through the lower-left cargo hook.Pass the belt through the buckle and secure the tire firmly. Check that the belt is securely held by the buckle.The belt cannot be fastened securely if ...
-
44 .5When trouble arises6235-...5When trouble arises6235-2. Steps to take in an emergencyCT200h_U (OM76004U)nWhen using the compact spare tireAs the compact spare tire is not equipped with a tire pressure warning valve and transmitter, low inflation pressure of the spare tire will not be...
-
45 .6245-2. Steps to take in ...6245-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnWhen the compact spare tire is attachedThe vehicle speed may not be correctly detected, and the following systems may not operate correctly:lABS & Brake assistlVSClTRAClCruise control (if equi...
-
46 .5When trouble arises6255-...5When trouble arises6255-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnSpeed limit when using the compact spare tireDo not drive at speeds in excess of 50 mp h (80 km/h) when a compact spare tire is installed on the vehicle.The compact spare t...
-
47 .6265-2. Steps to take in ...6265-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnReplacing a flat tireObserve the following precautions to reduce the risk of death or serious injury:lDo not touch the disc wheels or the area around the brakes immediately after the vehicle ...
-
48 .5When trouble arises6275-...5When trouble arises6275-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnAfter using the tools and jackBefore driving, make sure all the tools and jack are securely in place in their storage location to reduce the possibility of personal injury...
-
49 .6285-2. Steps to take in ...6285-2. Steps to take in an emergencyCT200h_U (OM76004U)NOTICEnDo not drive the vehicle with a flat tire.Do not continue driving with a flat tire. Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair.nBe careful w...
-
50 .5When trouble arises6295-...5When trouble arises6295-2. Steps to take in an emergencyCT200h_U (OM76004U)If the hybrid system will not startReasons for the hybrid system not starting vary depending on the situation. Check the following and perform the appropriate procedure: nThe hybri...
-
51 .6305-2. Steps to take in ...6305-2. Steps to take in an emergencyCT200h_U (OM76004U)Emergency start functionWhen the hybrid system does not start, the following steps can be used as an interim measure to start the hybr id system if the "POWER" switch is functioning normally:Set the ...
-
52 .5When trouble arises6315-...5When trouble arises6315-2. Steps to take in an emergencyCT200h_U (OM76004U)If you lose your keysNew genuine keys can be made by yo ur Lexus dealer using the other key and the key number stamped on your key number plate.
-
53 .6325-2. Steps to take in ...6325-2. Steps to take in an emergencyCT200h_U (OM76004U)If the electronic key does not operate properlyLocking and unlocking the doors and key linked functionsUse the mechanical key (→P. 44) in order to perform the following operations:Locks all the doorsC...
-
54 .5When trouble arises6335-...5When trouble arises6335-2. Steps to take in an emergencyCT200h_U (OM76004U)Changing "POWER" switch modes and starting the hybrid systemDepress the brake pedal.Touch the Lexus emblem side of the electronic key to the "POWER" switch.If any of the doors is ...
-
55 .6345-2. Steps to take in ...6345-2. Steps to take in an emergencyCT200h_U (OM76004U)nStopping the hybrid systemSet the parking brake, shift the shift position to P and press the "POWER" switch as you normally do when stopping the hybrid system.nReplacing the key batteryAs the above p...
-
56 .5When trouble arises6355-...5When trouble arises6355-2. Steps to take in an emergencyCT200h_U (OM76004U)If the 12-volt battery is dischargedThe following procedures may be used to start the hybrid system if the vehi-cle's 12-volt battery is discharged. You can also call your Lexus d...
-
57 .6365-2. Steps to take in ...6365-2. Steps to take in an emergencyCT200h_U (OM76004U)Connect the jumper cables accord ing to the following procedure:Connect a positive jumper cable clam p to the exclusive jump start-ing terminal on your vehicle.Connect the clamp on the other end of t...
-
58 .5When trouble arises6375-...5When trouble arises6375-2. Steps to take in an emergencyCT200h_U (OM76004U)Start the engine of the second vehicle. Increase the engine speed slightly and maintain at that level for approximately 5 minutes to recharge the battery of your vehicle.Open and...
-
59 .6385-2. Steps to take in ...6385-2. Steps to take in an emergencyCT200h_U (OM76004U)nStarting the hybrid system when the 12-volt battery is dischargedThe hybrid system cannot be started by push-starting.nTo prevent 12-volt battery dischargelTurn off the headlights and the audio sy st...
-
60 .5When trouble arises6395-...5When trouble arises6395-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONn12-volt battery precautionsThe 12-volt battery contains poisonous and corrosive acidic electrolyte, while related parts contain lead and lead comp ounds. Observe the follo...
-
61 .6405-2. Steps to take in ...6405-2. Steps to take in an emergencyCT200h_U (OM76004U)If your vehicle overheatsCorrection proceduresnIf the high coolant temperature warning light comes on or flashesStop the vehicle in a safe place an d turn off the air conditioning system.Check to see ...
-
62 .5When trouble arises6415-...5When trouble arises6415-2. Steps to take in an emergencyCT200h_U (OM76004U)After the hybrid system has cooled down sufficiently, check the engine coolant level and inspect the cool-ing system for leaks.If the engine compartment cover needs to be removed: ...
-
63 .6425-2. Steps to take in ...6425-2. Steps to take in an emergencyCT200h_U (OM76004U)nIf "HYBRID SYSTEM OVERHEAT" is shown on the multi-informa-tion displayStop the vehicle in a safe place an d turn off the air conditioning system.Leave the hybrid system operating and carefully lift ...
-
64 .5When trouble arises6435-...5When trouble arises6435-2. Steps to take in an emergencyCT200h_U (OM76004U)Add power control unit coolant if necessary.Water can be used in an emer-gency if power control unit coolant is unavailable. (→P. 657)Have the vehicle inspected at the ne arest Lex...
-
65 .6445-2. Steps to take in ...6445-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnTo prevent an accident or injury when in specting under the hood of your vehiclelIf steam is seen coming from under the hood, do not open the hood until the steam has subsided. The engine comp...
-
66 .5When trouble arises6455-...5When trouble arises6455-2. Steps to take in an emergencyCT200h_U (OM76004U)If the vehicle becomes stuckCAUTIONnWhen attempting to free a stuck vehicleIf you choose to push the vehicle back and forth to free it, make sure the surround-ing area is clear to ...
-
67 .6465-2. Steps to take in ...6465-2. Steps to take in an emergencyCT200h_U (OM76004U)NOTICEnTo avoid damage to the hybrid transmission and other componentslAvoid spinning the wheels and depressing the accelerator pedal more than nec-essary.lIf the vehicle remains stuck even after the...
-
68 .5When trouble arises6475-...5When trouble arises6475-2. Steps to take in an emergencyCT200h_U (OM76004U)If your vehicle has to be stopped in an emergencyOnly in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following...
-
69 .6485-2. Steps to take in ...6485-2. Steps to take in an emergencyCT200h_U (OM76004U)CAUTIONnIf the hybrid system has to be turned off while drivingPower assist for the brakes and steering wh eel will be lost, making the brake pedal harder to depress and the steering wheel heavier to ...
