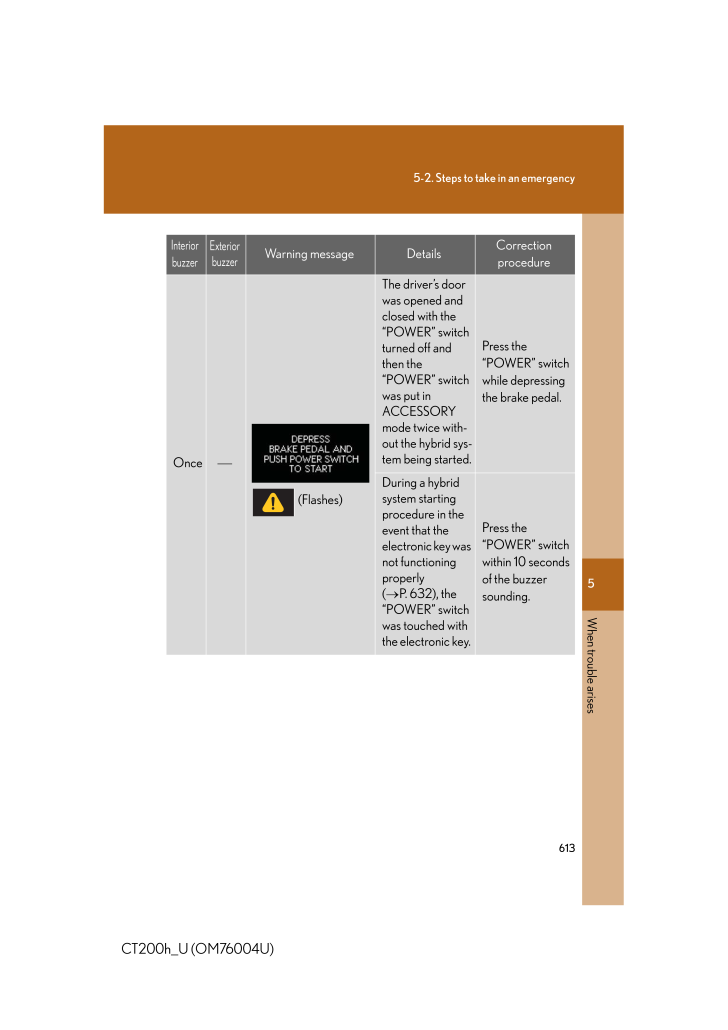

5When trouble arises6135-2. Steps to take in an emergencyCT200h_U (OM76004U)Once ⎯(Flashes)The driver's door was opened and closed with the "POWER" switch turned off and then the "POWER" switch was put in ACCESSORY mode twice with-out the hybrid sys-tem being started.Press the "POWER" switch while depressing the brake pedal.During a hybrid system starting procedure in the event that the electronic key was not functioning properly (→P. 632), the "POWER" switch was touched with the electronic key. Press the "POWER" switch within 10 seconds of the buzzer sounding.Interior buzzerExterior buzzerWarning message DetailsCorrection procedure
