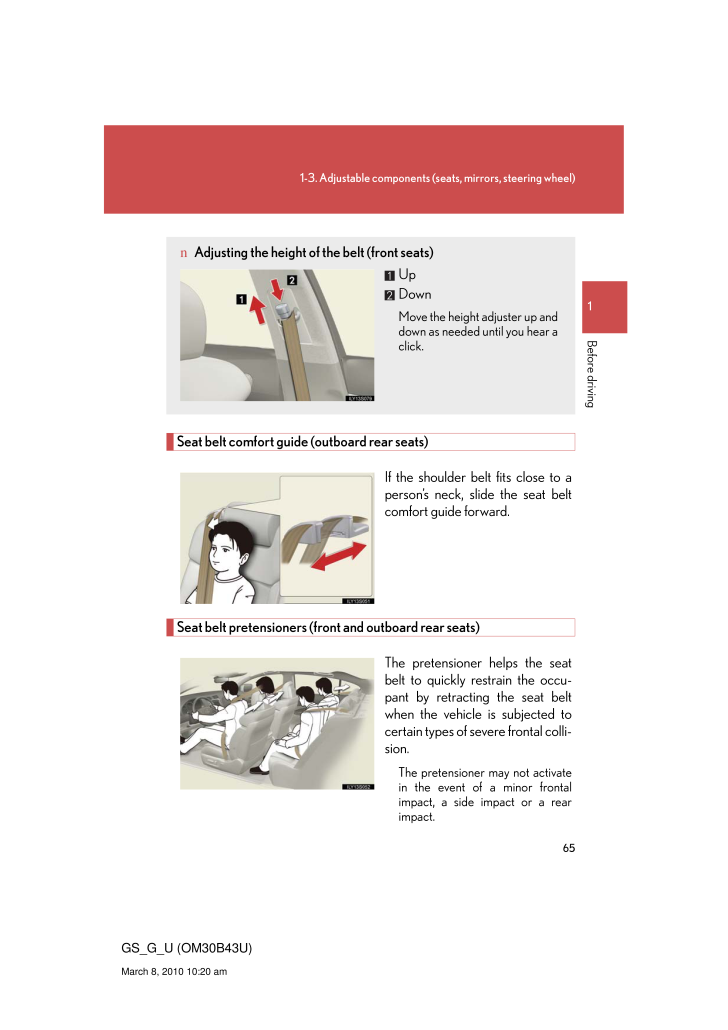

651-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amSeat belt comfort guide (outboard rear seats)If the shoulder belt fits close to a person's neck, slide the seat belt comfort guide forward.Seat belt pretensioners (front and outboard rear seats)The pretensioner helps the seat belt to quickly restrain the occu-pant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal colli-sion.The pretensioner may not activate in the event of a minor frontal impact, a side impact or a rear impact.n Adjusting the height of the belt (front seats)UpDownMove the height adjuster up and down as needed until you hear a click.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .54GS_G_U (OM30B43U)March ...54GS_G_U (OM30B43U)March 8, 2010 10:20 am1-3. Adjustable components (s eats, mirrors, steering wheel)Front seatsSeat position fore/aft control switchFor driver's seat only: Height of the head restraint also moves upward or downward with the seat movement.S...
-
2 .551-3. Adjustable compone...551-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnReclining adjustmentDo not recline the seat more than necessary when the vehicle is in motion, to reduce the risk of sliding under th...
-
3 .561-3. Adjustable compone...561-3. Adjustable components (seats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amDriving position memory system∗∗: If equippedYour preferred driving position (the po sition of the driver's seat, steering wheel and outside rear view mirro...
-
4 .571-3. Adjustable compone...571-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amLinking driving position memory with door unlock operationRecord your driving position to butto n "1", "2" or "3" before performing the follo...
-
5 .581-3. Adjustable compone...581-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amOpen one of the doors.If a door is not opened within 60 seconds after is pushed, the doors will be locked again and the alarm will automatically be set. ...
-
6 .591-3. Adjustable compone...591-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amnCanceling the linked door unlock operationClose the driver's door with the "ENGINE START STOP" switch set to the OFF.Push the "SET" button a...
-
7 .601-3. Adjustable compone...601-3. Adjustable components (seats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amHead restraintsHead restraints are provided for all seats. n Vertical adjustmentDriver's seatHead restraint height can be adjusted automatically along with ...
-
8 .611-3. Adjustable compone...611-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amCenter rear seatUpPull the head restraint up.DownPush the head restraint down while pressing the lock release button.n Horizontal adjustment ...
-
9 .621-3. Adjustable compone...621-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amnAdjusting the height of the driver's head restraint manuallynAdjusting the height of the head restraintsnAdjusting the center rear seat head restraintAlwa...
-
10 .631-3. Adjustable compone...631-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amnRemoving and installing the driver's seat head restraintFor removal and installation , ask your Lexus dealer.nRemoving the head restraints (...
-
11 .641-3. Adjustable compone...641-3. Adjustable components (seats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amSeat beltsMake sure that all occupants are wearing their seat belts before driving the vehicle. n Correct use of the seat beltsExtend the shoulder belt so t...
-
12 .651-3. Adjustable compone...651-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amSeat belt comfort guide (outboard rear seats)If the shoulder belt fits close to a person's neck, slide the seat belt comfort guide forward.Se...
-
13 .661-3. Adjustable compone...661-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amPre-collision seat belts (front seats of vehicles with pre-collision system)If the pre-collision sensor detects that a collision is unavoidable, the pre-co...
-
14 .671-3. Adjustable compone...671-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amnPeople suffering illnessObtain medical advice and wear the seat belt in the proper way. (→ P. 64)nChild seat belt usageThe seat belts of you...
-
15 .681-3. Adjustable compone...681-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONObserve the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may ...
-
16 .691-3. Adjustable compone...691-3. Adjustable components (seats, mirrors, steering wheel)1Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnChild restraint lock function belt precautionDo not allow children to play with the child restraint lock function belt. If the belt ...
-
17 .701-3. Adjustable compone...701-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amNOTICEnWhen using a seat belt extenderWhen releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps pr...
-
18 .7111-3. Adjustable compon...7111-3. Adjustable components (seats, mirrors, steering wheel)Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amSteering wheelAuto tilt away and auto returnWhen the "ENGINE START STOP" switch is turned OFF, the steering wheel returns to its stowed posit...
-
19 .721-3. Adjustable compone...721-3. Adjustable components (seats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amInside rear view mirrornTo prevent sensor errorCAUTIONnWhile drivingDo not adjust the position of the mirror. Doing so may lead to mishandling of the ve hi...
-
20 .7311-3. Adjustable compon...7311-3. Adjustable components (seats, mirrors, steering wheel)Before drivingGS_G_U (OM30B43U)March 8, 2010 10:20 amOutside rear view mirrorsFolding and extending the mirrorsPress the switchPressing again will extend the mir-rors.Mirror angle can be adjuste...
-
21 .741-3. Adjustable compone...741-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amnLinked mirror function when reversingThe outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a bet...
