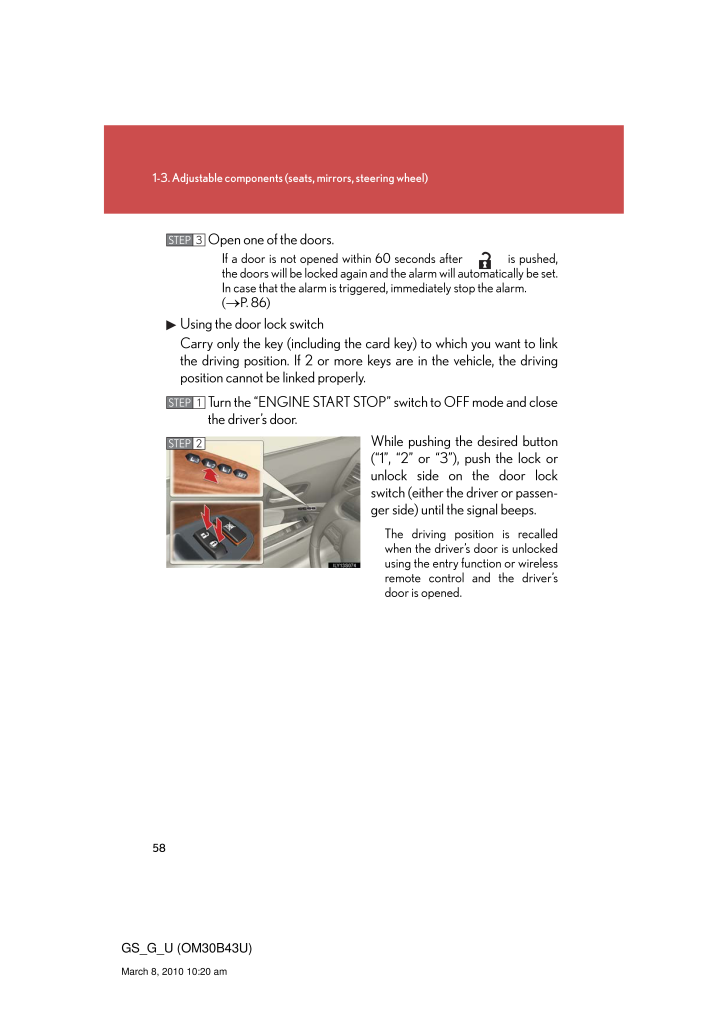

581-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amOpen one of the doors.If a door is not opened within 60 seconds after is pushed, the doors will be locked again and the alarm will automatically be set. In case that the alarm is triggered, immediately stop the alarm. (→ P. 86)Using the door lock switchCarry only the key (including the ca rd key) to which you want to link the driving position. If 2 or more ke ys are in the vehicle, the driving position cannot be linked properly.Turn the "ENGINE START STOP" switch to OFF mode and close the driver's door.While pushing the desired button ("1", "2" or "3"), push the lock or unlock side on the door lock switch (either the driver or passen-ger side) until the signal beeps.The driving position is recalled when the driver's door is unlocked using the entry function or wireless remote control and the driver's door is opened.STEP 3STEP 1STEP 2
