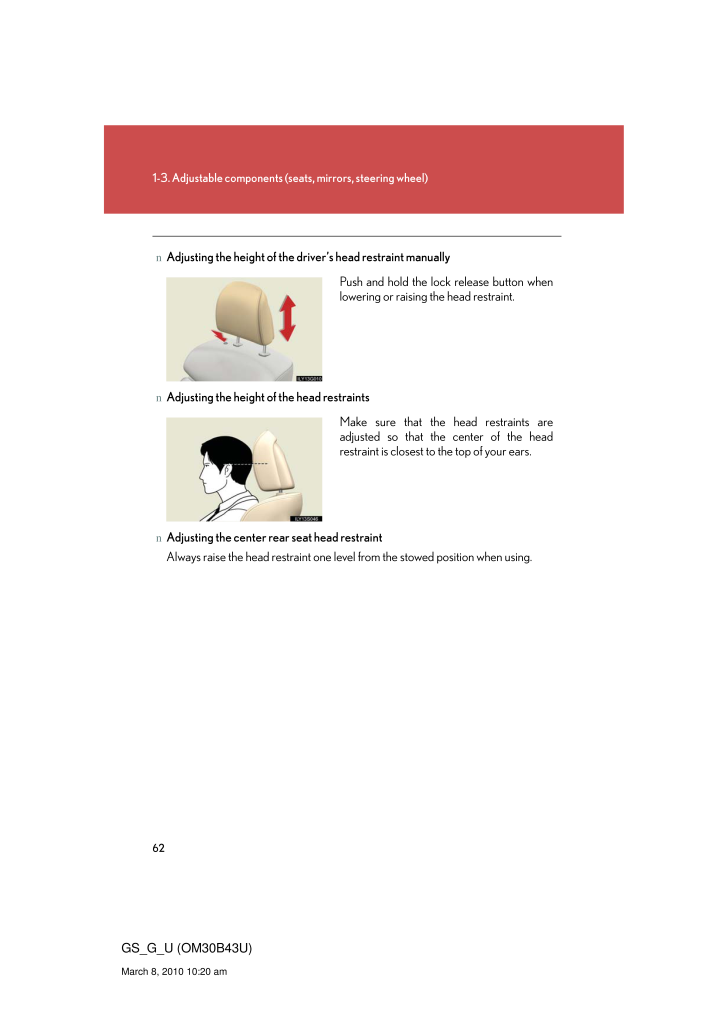

621-3. Adjustable components (s eats, mirrors, steering wheel)GS_G_U (OM30B43U)March 8, 2010 10:20 amnAdjusting the height of the driver's head restraint manuallynAdjusting the height of the head restraintsnAdjusting the center rear seat head restraintAlways raise the head restraint one level from the stowed position when using. Push and hold the lock release button when lowering or raising the head restraint.Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.
