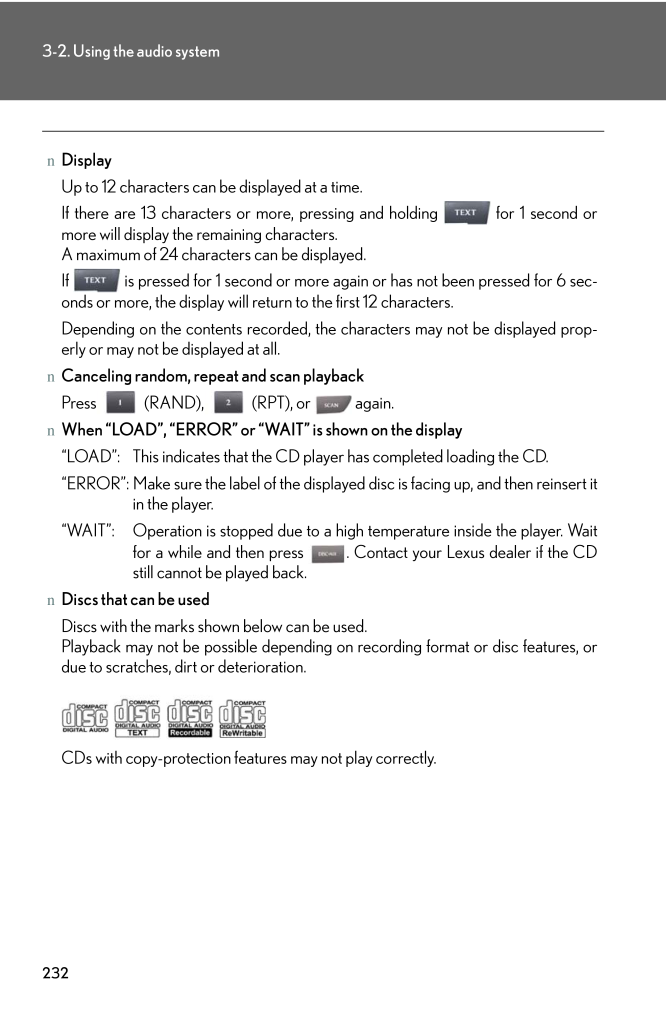

2323-2. Using the audio systemnDisplayUp to 12 characters can be displayed at a time.If there are 13 characters or more, pressing and holding for 1 second ormore will display the remaining characters.A maximum of 24 characters can be displayed.If is pressed for 1 second or more again or has not been pressed for 6 sec-onds or more, the display will return to the first 12 characters.Depending on the contents recorded, the characters may not be displayed prop-erly or may not be displayed at all.nCanceling random, repeat and scan playbackPress (RAND), (RPT), or again.nWhen "LOAD", "ERROR" or "WAIT" is shown on the display"LOAD": This indicates that the CD pl ayer has completed loading the CD."ERROR":Make sure the label of the displayed disc is facing up, and then reinsert itin the player."WAIT": Operation is stopped due to a hi gh temperature inside the player. Waitfor a while and then press . Contact your Lexus dealer if the CDstill cannot be played back.nDiscs that can be usedDiscs with the marks shown below can be used.Playback may not be possible depending on recording format or disc features, ordue to scratches, dirt or deterioration.CDs with copy-protection features may not play correctly.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .2193Interior features3-2....2193Interior features3-2. Using the audio systemAudio system typeWith navigation systemOwners of models equipped with a navigation system should refer tothe "Navigation System Owner's Manual".Without navigation system (type A)CD player with changer and AM/...
-
2 .2203-2. Using the audio s...2203-2. Using the audio systemnUsing cellular phonesInterference may be heard through the audio system's speakers if a cellular phone isbeing used inside or close to the vehi cle while the audio system is operating.CAUTIONnFor vehicles sold in U.S.A. and C...
-
3 .2213-2. Using the audio s...2213-2. Using the audio system3Interior featuresNOTICEnTo prevent battery dischargeDo not leave the audio system on longer than necessary with the engine off.nTo avoid damaging the audio systemTake care not to spill drinks or other fluids over the audio s...
-
4 .2223-2. Using the audio s...2223-2. Using the audio systemUsing the radioSetting station presets (excluding XM(R) Satellite Radio)Search for desired stations by turning or pressing "∧" or"∨" on .Press and hold the button (from to ) the station is tobe set to until you hear a beep.S...
-
5 .2233-2. Using the audio s...2233-2. Using the audio system3Interior featuresnScanning all radio stations within rangePress .All stations with reception will be played for 5 seconds each.When the desired station is reached, press once again.RDS (Radio Data System) This feature allow...
-
6 .2243-2. Using the audio s...2243-2. Using the audio systemnDisplaying radio station namesPress .nDisplaying radio text messagesPress twice.If MSG shows in the display, a text message will be displayed.If the text continues past the end of the display, is displayed. Press andhold ...
-
7 .2253-2. Using the audio s...2253-2. Using the audio system3Interior featuresnScanning XM(R) Satellite Radio channelslScanning channels in the current categoryPress .When the desired channel is reached, press again.lScanning preset channelsPress and hold until you hear a beep.Whe...
-
8 .2263-2. Using the audio s...2263-2. Using the audio systemnWhen the battery is disconnectedStations presets are erased.nReception sensitivitylMaintaining perfect radio reception at all times is difficult due to the continuallychanging position of the antenna, differ ences in signal s...
-
9 .2273-2. Using the audio s...2273-2. Using the audio system3Interior featuresnIf the satellite radio does not operate normallyIf a problem occurs with the XM(R) tuner, a message will appear on the display. Referto the table below to identify the problem, and take the suggested correc...
-
10 .2283-2. Using the audio s...2283-2. Using the audio systemContact the XM(R) Listener Care Center at 1-877-515-3987 (U.S.A.) or 1-877-438-9677 (Canada).nCertifications for the radio tunerThis equipment has been tested and found to comply with the limits for a class Bdigital device, pu...
-
11 .2293-2. Using the audio s...2293-2. Using the audio system3Interior featuresUsing the CD playerLoading CDsnLoading a CDPush ."WAIT" is shown on the display.Insert a CD when the indicator on the slot turns from amber togreen.The display changes from "WAIT" to "LOAD".nLoading multiple...
-
12 .2303-2. Using the audio s...2303-2. Using the audio systemInsert the next CD when the indicator on the slot turns fromamber to green again.Repeat the procedure for the remaining CDs.To stop the operation, press .Ejecting CDsnEjecting a CDTo select the CD to be ejected,press "∧" or ...
-
13 .2313-2. Using the audio s...2313-2. Using the audio system3Interior featuresSelecting a CDnTo select a CD to playTo select the desired CD, press " ∧" or "∨" on .nTo scan loaded CDsPress and hold until you hear a beep.The first ten seconds of the first track on each CD will be pla...
-
14 .2323-2. Using the audio s...2323-2. Using the audio systemnDisplayUp to 12 characters can be displayed at a time.If there are 13 characters or more, pressing and holding for 1 second ormore will display the remaining characters.A maximum of 24 characters can be displayed.If is pr...
-
15 .2333-2. Using the audio s...2333-2. Using the audio system3Interior featuresnCD player protection featureTo protect the internal components, play back is automatically stopped when aproblem is detected.nIf CDs are left inside the CD player or in the ejected position for extended peri...
-
16 .2343-2. Using the audio s...2343-2. Using the audio systemNOTICEnCD player precautionsFailure to follow the precautions below ma y result in serious damage to the CDs orthe player itself.lDo not insert anything other than CDs into the CD slot.lDo not apply oil to the CD player.lStor...
-
17 .2353-2. Using the audio s...2353-2. Using the audio system3Interior featuresPlaying back MP3 and WMA discsLoading, ejecting and selecting MP3 and WMA discs→P. 229Selecting a foldernSelecting folders one at a timePress (∧) or (∨) to select the desired folder.nSelecting the desired fol...
-
18 .2363-2. Using the audio s...2363-2. Using the audio systemSelecting filesnSelecting one file at a timeTurn or press "∧" or "∨" on to select the desired file.nSelecting the desired file by cueing the files in the folderPress .When the desired file is reached, press once again.Re...
-
19 .2373-2. Using the audio s...2373-2. Using the audio system3Interior featuresnDisplayUp to 12 characters can be displayed at a time.If there are 13 characters or more, pressing and holding for 1 second ormore will display the remaining characters.A maximum of 24 characters can be di...
-
20 .2383-2. Using the audio s...2383-2. Using the audio systemnLens cleanersDo not use lens cleaners. Doing so may damage the CD player.nMP3 and WMA filesMP3 (MPEG Audio LAYER 3) is a standard audio compression format.Files can be compressed to approximately 1/10 of their original size b...
-
21 .2393-2. Using the audio s...2393-2. Using the audio system3Interior featureslCompatible mediaMedia that can be used for MP3 and WMA playback are CD-Rs and CD-RWs.Playback in some instances may not be po ssible, depending on the status of theCD-R or CD-RW. Playback may not be po ssibl...
-
22 .2403-2. Using the audio s...2403-2. Using the audio systemlMP3 and WMA playbackWhen a disc containing MP3 or WMA files is inserted, all files on the disc are firstchecked. Once the file check is finished, the first MP3 or WMA file is played. Tomake the file check finish more quickly,...
-
23 .2413-2. Using the audio s...2413-2. Using the audio system3Interior featuresOptimal use of the audio systemType AType BAdjusting the sound qualityChanging the sound quality modesChanging the listening positionAdjusting the ASLAdjusting the sound qualityChanging the sound quality mode...
-
24 .2423-2. Using the audio s...2423-2. Using the audio systemAdjusting the Automatic Sound Levelizer (ASL)Press .The ASL switches between on and off modes each time ispressed.ASL automatically adjusts the volume an d tone quality according to the noiselevel as you drive your vehicle.C...
-
25 .2433-2. Using the audio s...2433-2. Using the audio system3Interior featuresnAdjusting sound qualityPress or to adjust the level.*1: The sound quality level is adjusted indi vidually in each AM, FM or CD mode.*2: Type B onlynSurround sound system (type B only)When the surround mode i...
-
26 .2443-2. Using the audio s...2443-2. Using the audio systemUsing the AUX adapternOperating portable audio devices connected to the audio systemThe volume can be adjusted using the vehicle's audio controls. All other adjust-ments must be made on the portable audio device itself.nWhen u...
-
27 .2453-2. Using the audio s...2453-2. Using the audio system3Interior featuresUsing the steering wheel audio switchesTurning on the powerPress when the audio system is turned off.The audio system can be turned off by holding down for 1 second ormore.Changing the audio sourcePress ...
-
28 .2463-2. Using the audio s...2463-2. Using the audio systemSelecting a radio stationPress to select the radio mode.Press "∧" or "∨" on to select a radio station.To scan for receivable stations, press and hold until you hear abeep.Selecting a track/filePress to select the CD mo...
