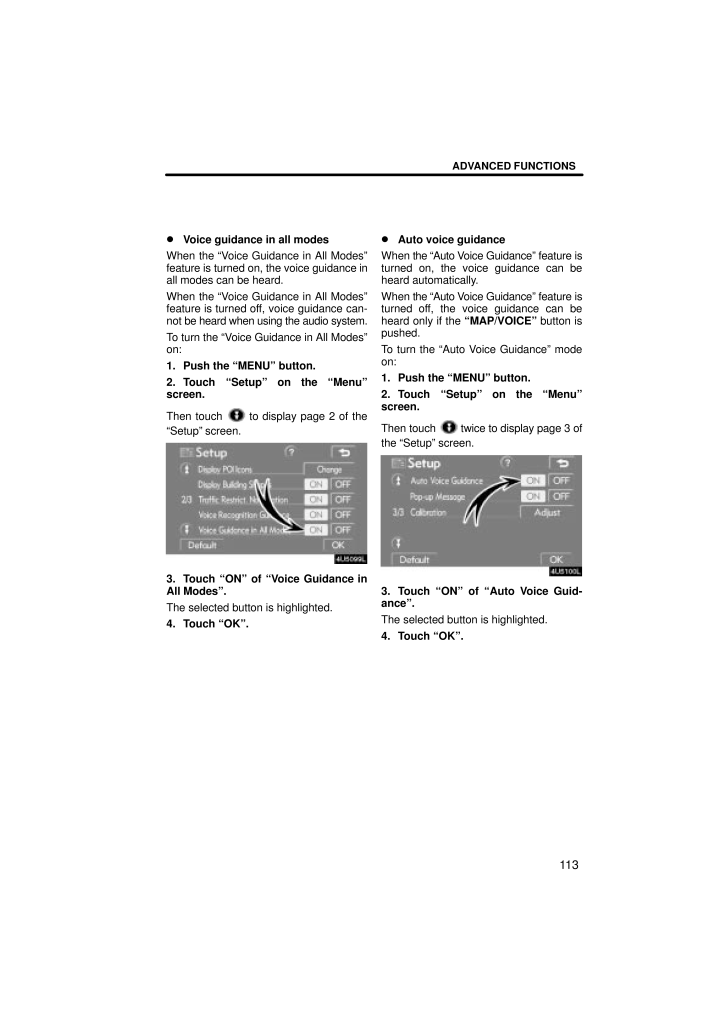

ADVANCED FUNCTIONS113Voice guidance in all modesWhen the "Voice Guidance in All Modes"feature is turned on, the voice guidance inall modes can be heard.When the "Voice Guidance in All Modes"feature is turned off, voice guidance can-not be heard when using the audio system.To turn the "Voice Guidance in All Modes"on:1. Push the "MENU" button.2. Touch "Setup" on the "Menu"screen.Then touch to display page 2 of the"Setup" screen.3. Touch "ON" of "Voice Guidance inAll Modes".The selected button is highlighted.4. Touch "OK". Auto voice guidanceWhen the "Auto Voice Guidance" feature isturned on, the voice guidance can beheard automatically.When the "Auto Voice Guidance" feature isturned off, the voice guidance can beheard only if the "MAP/VOICE" button ispushed.To turn the "Auto Voice Guidance" modeon:1. Push the "MENU" button.2. Touch "Setup" on the "Menu"screen.Then touch twice to display page 3 ofthe "Setup" screen.3. Touch "ON" of "Auto Voice Guid-ance".The selected button is highlighted.4. Touch "OK".
