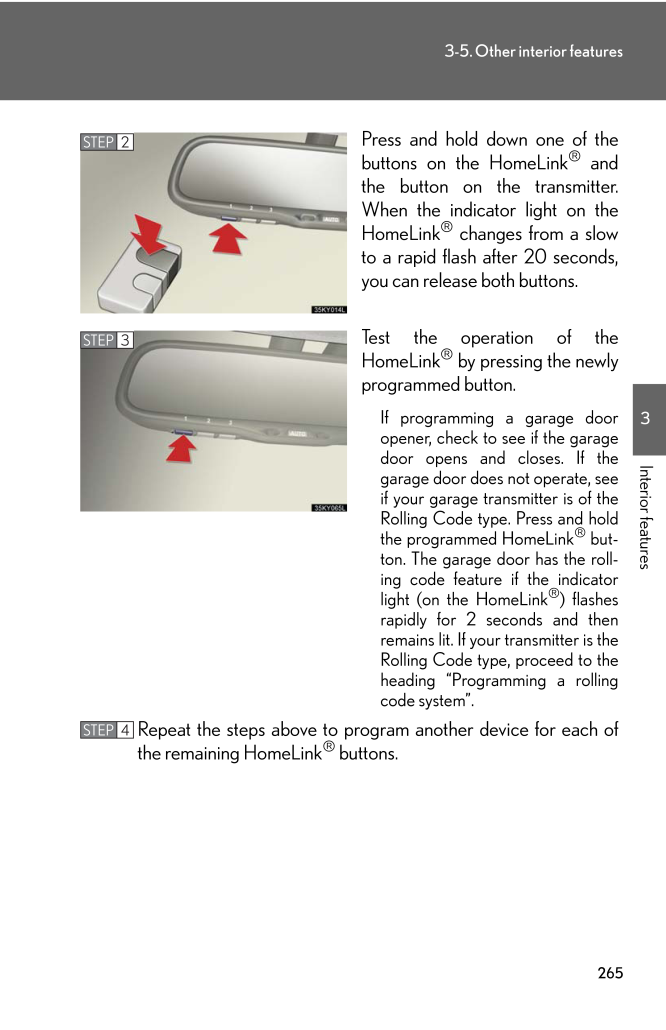

2653-5. Other interior features3Interior featuresPress and hold down one of thebuttons on the HomeLink® andthe button on the transmitter.When the indicator light on theHomeLink® changes from a slowto a rapid flash after 20 seconds,you can release both buttons.Test the operation of theHomeLink® by pressing the newlyprogrammed button.If programming a garage dooropener, check to see if the garagedoor opens and closes. If thegarage door does not operate, seeif your garage transmitter is of theRolling Code type. Press and holdthe programmed HomeLink® but-ton. The garage door has the roll-ing code feature if the indicatorlight (on the HomeLink®) flashesrapidly for 2 seconds and thenremains lit. If your transmitter is theRolling Code type, proceed to theheading "Programming a rollingcode system".Repeat the steps above to program another device for each ofthe remaining HomeLink® buttons.STEP 2STEP 3STEP 4
