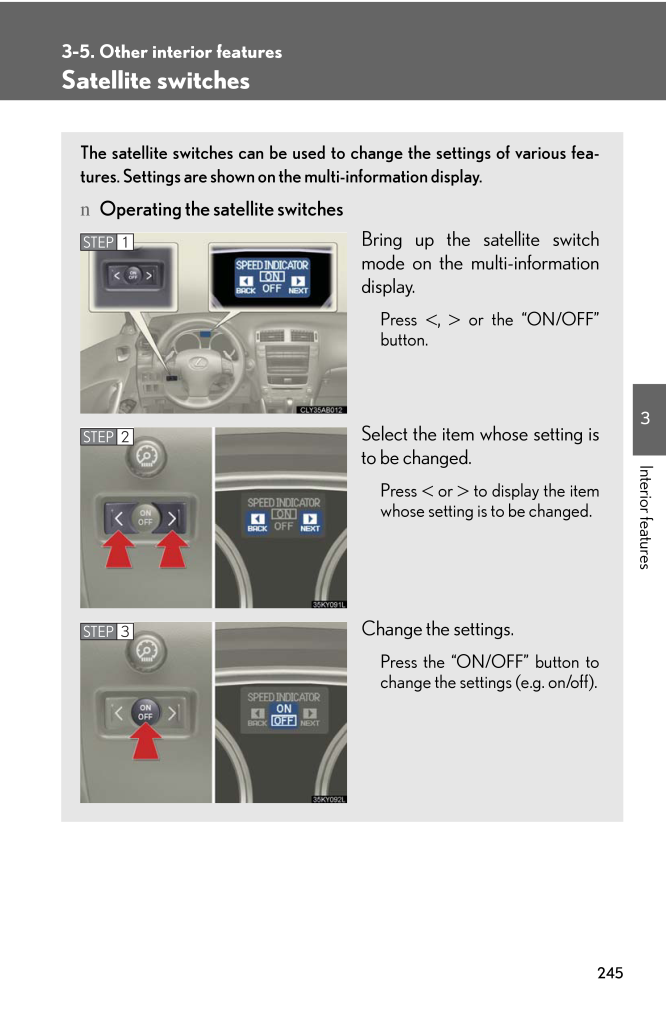

2453-5. Other interior features3Interior featuresSatellite switchesThe satellite switches can be used to change the settings of various fea-tures. Settings are shown on the multi-information display.nOperating the satellite switchesBring up the satellite switchmode on the multi-informationdisplay.Press <, > or the "ON/OFF"button.Select the item whose setting isto be changed.Press < or > to display the itemwhose setting is to be changed.Change the settings.Press the "ON/OFF" button tochange the settings (e.g. on/off).STEP 1STEP 2STEP 3
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .2423-5. Other interior fe...2423-5. Other interior featuresSun visorsForward position: Flip down.Side position: Flip down, unhook, and swingto the side.
-
2 .2433-5. Other interior fe...2433-5. Other interior features3Interior featuresVanity mirrorSlide the cover.The light turns on when thecover is opened.
-
3 .2443-5. Other interior fe...2443-5. Other interior featuresClocknThe clock is displayed whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.Adjusts the hour.Adjusts the minutes.Rounds to the nearest hour.**: e.g.1:00 to 1:29 → 1:001:30 to 1:59 → 2:00
-
4 .2453-5. Other interior fe...2453-5. Other interior features3Interior featuresSatellite switchesThe satellite switches can be used to change the settings of various fea-tures. Settings are shown on the multi-information display.nOperating the satellite switchesBring up the satellite...
-
5 .2463-5. Other interior fe...2463-5. Other interior featuresnItems that can be set using the satellite switchesIntuitive parking assist (→P. 164) on/off (ifequipped)Tire pressure warning system initialization (→P. 308)ID code selection for tire air pressure system (→P. 310)AFS (Adapti...
-
6 .2473-5. Other interior fe...2473-5. Other interior features3Interior featuresnChanging the settingsEach item is displayed and its setting can be changed only in the following condi-tions:lIntuitive parking assist: When the "ENGINE START STOP" switch is in IGNI-TION ON mode.lItems oth...
-
7 .2483-5. Other interior fe...2483-5. Other interior featuresAshtraysCAUTIONnWhen not in useKeep the ashtray closed.Injuries may result in the event of an accident or sudden braking.nTo prevent firelFully extinguish matches and cigarettes be fore putting them in the ashtray, thenmake ...
-
8 .2493-5. Other interior fe...2493-5. Other interior features3Interior featuresCigarette lighternThe cigarette lighter can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.CAUTIONnTo avoid burns or fireslDo not touch the metal parts of the cigarette lighte...
-
9 .2503-5. Other interior fe...2503-5. Other interior featuresPower outletnThe power outlet can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.NOTICEnTo avoid damaging the power outletClose the power outlet lid when the power outlet is not in use. Foreign...
-
10 .2513-5. Other interior fe...2513-5. Other interior features3Interior featuresSeat heaters (if equipped)nThe seat heaters can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen not in useSet the dial to "0". The indicator light turns off.Vehicles with an automatic...
-
11 .2523-5. Other interior fe...2523-5. Other interior featuresCAUTIONnBurnslUse caution when seating the following pers ons in a seat with the seat heater onto avoid the possibility of burns:* Babies, small children, the elderly, the sick and the disabled* Persons with sensitive skin* P...
-
12 .2533-5. Other interior fe...2533-5. Other interior features3Interior featuresSeat heaters and ventilators (if equipped)nThe seat heaters and ventilators can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen not in useSet the dial to "0". The indicator light turn...
-
13 .2543-5. Other interior fe...2543-5. Other interior featuresCAUTIONnBurnslUse caution when seating the following pers ons in a seat with the seat heater onto avoid the possibility of burns:* Babies, small children, the elderly, the sick and the disabled* Persons with sensitive skin* P...
-
14 .2553-5. Other interior fe...2553-5. Other interior features3Interior featuresArmrestNOTICEnTo prevent damage to the armrestDo not place too much strain on the armrest.Pull the armrest down for use.
-
15 .2563-5. Other interior fe...2563-5. Other interior featuresRear sunshade (if equipped)nReverse operation featureTo ensure adequate rear visibility, the sunshade automatically lowers when the gearis shifted to R.However, the rear sunshade is raised again if either of the following occ...
-
16 .2573-5. Other interior fe...2573-5. Other interior features3Interior featuresCAUTIONnWhen the rear sunshade is being raised or loweredDo not place fingers or other objects in the fastener section or in the opening.They may get caught, causing injury.NOTICEnTo prevent the battery fro...
-
17 .2583-5. Other interior fe...2583-5. Other interior featuresTrunk storage extensionCAUTIONnWhen not in useEnsure that the inside trunk door is closed.In the event of sudden braking, items stor ed in the trunk may be thrown forward intothe cabin, resulting in injury.Long objects can be...
-
18 .2593-5. Other interior fe...2593-5. Other interior features3Interior featuresCoat hooksCAUTIONnItems that must not be hung on the hook Do not hang a coat hanger or other hard or sharp object on the hook. If the SRScurtain shield airbags deploy, these items may become projectiles tha...
-
19 .2603-5. Other interior fe...2603-5. Other interior featuresFloor matCAUTIONnWhen inserting the floor mat Observe the following precautions.Failure to do so may result in the floor mat slipping and interfering with the move-ment of the pedals during driving, resulting in an accident.l...
-
20 .2613-5. Other interior fe...2613-5. Other interior features3Interior featuresTrunk featuresnCargo hooksCargo hooks are provided forsecuring loose items.nShopping bag hooksnFirst-aid kit storage beltLoosenTighten
-
21 .2623-5. Other interior fe...2623-5. Other interior featuresCAUTIONnWhen the cargo hooks are not in useTo avoid injury, always return the cargo ho oks to their positions when they are not inuse.nWarning triangle storage beltLoosenTightennLuggage matPull the lever upwards when lift-ing...
-
22 .2633-5. Other interior fe...2633-5. Other interior features3Interior featuresNOTICEnWhen closing the trunkDo not leave the luggage mat lever hooked on the edge of the trunk.The luggage mat may get damaged.
-
23 .2643-5. Other interior fe...2643-5. Other interior featuresGarage door openerThe garage door opener (HomeLink® Universal Transceiver) is manufacturedunder license from HomeLink®.Programming the HomeLink® (for U.S.A. owners)The HomeLink® compatible transceiver in your vehicle has 3 bu...
-
24 .2653-5. Other interior fe...2653-5. Other interior features3Interior featuresPress and hold down one of thebuttons on the HomeLink® andthe button on the transmitter.When the indicator light on theHomeLink® changes from a slowto a rapid flash after 20 seconds,you can release both butt...
-
25 .2663-5. Other interior fe...2663-5. Other interior featuresnProgramming a Rolling Code system (for U.S.A. owners)If your device is Rolling Code eq uipped, follow the steps under theheading "Programming the HomeLink®" before proceeding with thesteps listed below.Locate the training bu...
-
26 .2673-5. Other interior fe...2673-5. Other interior features3Interior featuresTest the operation of the HomeLink® by pressing the newly pro-grammed button. Check to see if the gate/device operates cor-rectly.Repeat the steps above to program another device for each ofthe remaining Ho...
-
27 .2683-5. Other interior fe...2683-5. Other interior featuresnBefore programminglInstall a new battery in the transmitter.lThe battery side of the transmitter must be pointed away from the HomeLink®.nCertification for the garage door openerThis device complies with Part 15 of the FCC ...
-
28 .2693-5. Other interior fe...2693-5. Other interior features3Interior featuresCompassThe compass on the inside rear view mi rror indicates the direction in whichthe vehicle is heading.nOperationTo turn the compass on or off,push "AUTO" for longer than3 seconds.Push and hold the button...
-
29 .2703-5. Other interior fe...2703-5. Other interior featuresCalibrating the compassThe direction display deviates from the true direction determined by theearth's magnetic field. The amount of deviation varies according to thegeographic position of the vehicle.If you cross over a ma...
-
30 .2713-5. Other interior fe...2713-5. Other interior features3Interior featuresPress "AUTO" again.If the direction is displayed severa l seconds after adjustment, the cali-bration is complete.nCircling calibrationIf "CAL" appears on the display,drive the vehicle at 5 mph (8 km/h)or les...
-
31 .2723-5. Other interior fe...2723-5. Other interior featuresCAUTIONnWhile driving the vehicleDo not adjust the display. Be sure to adjust the display only when the vehicle isstopped.nWhen doing the circling calibrationBe sure to secure a wide space, and watch out for people and vehicl...
