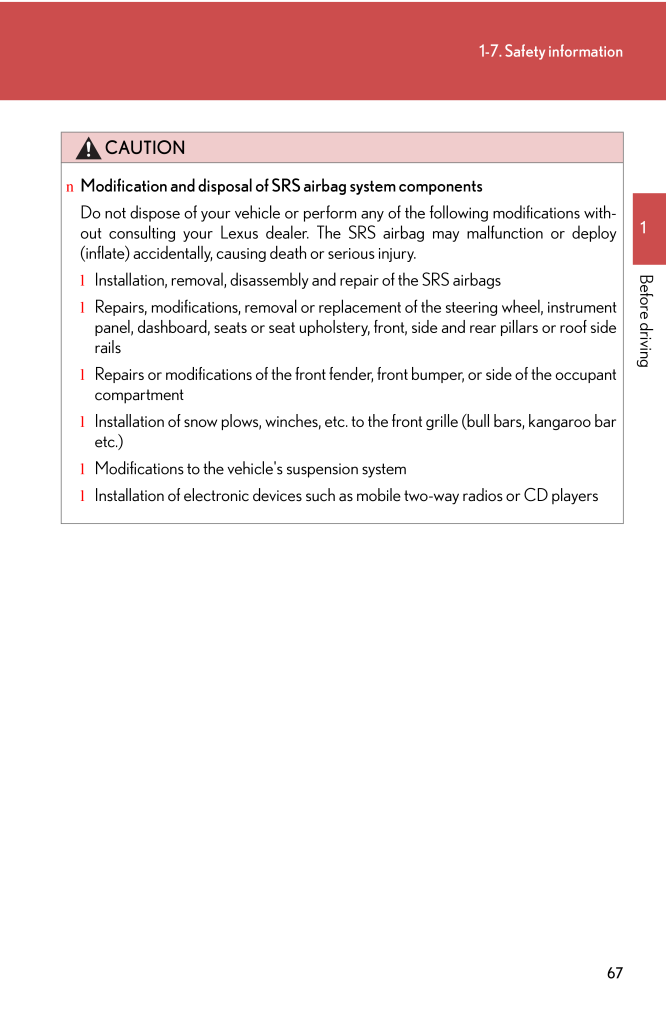

671-7. Safety information1Before drivingCAUTIONnModification and disposal of SRS airbag system componentsDo not dispose of your vehicle or perform any of the following modifications with-out consulting your Lexus dealer. The SRS airbag may malfunction or deploy(inflate) accidentally, causing death or serious injury.lInstallation, removal, disassembly and repair of the SRS airbagslRepairs, modifications, removal or replacement of the steering wheel, instrumentpanel, dashboard, seats or seat upholstery, front, side and rear pillars or roof siderailslRepairs or modifications of the front fender, front bumper, or side of the occupantcompartmentlInstallation of snow plows, winches, etc. to the front grille (bull bars, kangaroo baretc.)lModifications to the vehi cle's suspension systemlInstallation of electronic devices such as mobile two-way radios or CD players
