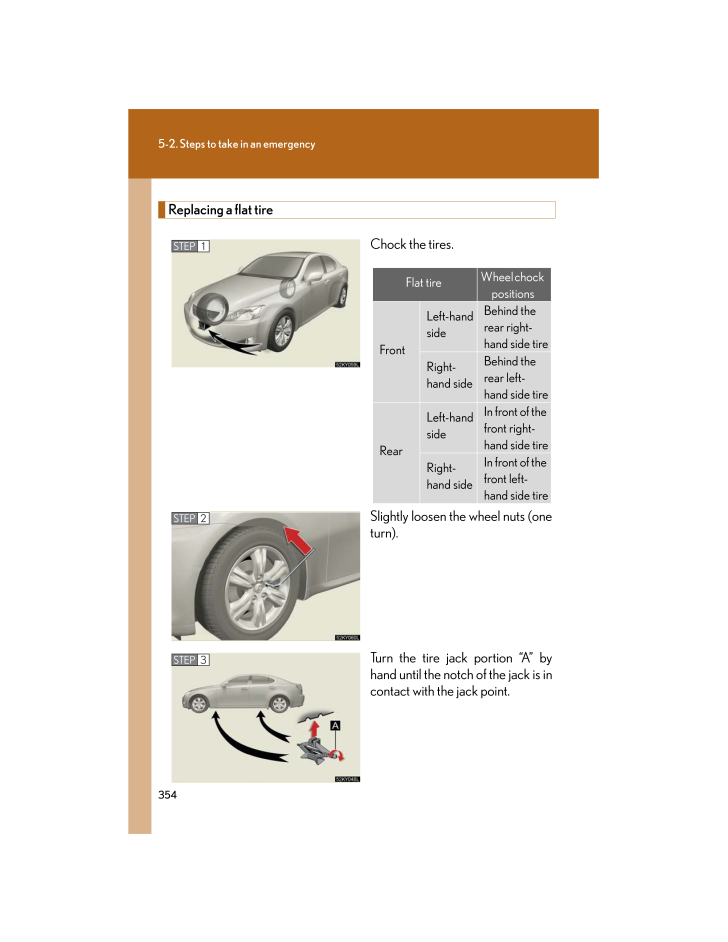

3545-2. Steps to take in an emergencyReplacing a flat tireChock the tires.Slightly loosen the wheel nuts (oneturn).Turn the tire jack portion "A" byhand until the notch of the jack is incontact with the jack point.STEP 1Flat tireWheel chock positionsFrontLeft-hand sideBehind the rear right-hand side tireRight-hand sideBehind the rear left-hand side tireRearLeft-hand sideIn front of the front right-hand side tireRight-hand sideIn front of the front left-hand side tireSTEP 2STEP 3
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .5When trouble arises3335-...5When trouble arises3335-2. Steps to take in an emergencyIf a warning light turns on or a warning buzzer sounds...Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.The following warning indicates a possible problem in the brak...
-
2 .3345-2. Steps to take in ...3345-2. Steps to take in an emergencyStop the vehicle immediately.The following warnings indicate the po ssibility of damage to the vehiclethat may lead to an accident. Immediately stop the vehicle in a safe placeand contact your Lexus dealer.Have the vehi...
-
3 .5When trouble arises3355-...5When trouble arises3355-2. Steps to take in an emergencyHave the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, checkthat the warning light turns off.Warning light Warning light/Details (U.S.A.) (Canad...
-
4 .3365-2. Steps to take in ...3365-2. Steps to take in an emergency*1:Open door warning buzzer:→P. 343*2:Driver's and front passenger's seat belt reminders:The driver's and front passenger's seat belts reminder sounds to alert the driverand front passenger that his or her sear belt is...
-
5 .5When trouble arises3375-...5When trouble arises3375-2. Steps to take in an emergencynIf the electronic engine control system warning light comes on while drivingFirst check the following:lIs the fuel empty?If it is, fill the fuel tank immediately.lIs the fuel tank cap loose?If it is...
-
6 .3385-2. Steps to take in ...3385-2. Steps to take in an emergencyIf a warning message is displayedStop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. The following warnings indicate the possibility of damage tothe vehicle t...
-
7 .5When trouble arises3395-...5When trouble arises3395-2. Steps to take in an emergencyHave the vehicle inspected by your Lexus dealer immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. Failing to investigate the cause of the following warni...
-
8 .3405-2. Steps to take in ...3405-2. Steps to take in an emergencyWarning message Details(If equipped)Indicates a malfunction in the pre-collision system.(If equipped)Indicates Lexus parking assist-sensor malfunction.The malfunctioning assist-sensor is shown flashing on the display.(I...
-
9 .5When trouble arises3415-...5When trouble arises3415-2. Steps to take in an emergencynIf the tire pressure warning system is inoperativeThe tire pressure warning system may beco me inoperative in the following circum-stances:lThe vehicle's wheels have not been equipped with tire pres...
-
10 .3425-2. Steps to take in ...3425-2. Steps to take in an emergencyHave the vehicle inspected by y our Lexus dealer immediately.Failing to investigate the cause of th e following warning may lead to thesystem operating abnormally and possibly cause an accident. Have thevehicle inspecte...
-
11 .5When trouble arises3435-...5When trouble arises3435-2. Steps to take in an emergencyHave the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-tion display. After taking the spec ified steps to correct the suspectedproblem, check t...
-
12 .3445-2. Steps to take in ...3445-2. Steps to take in an emergencyWarning message Details Correction procedureIndicates that the trunk is not fully closed. flashes and a buzzer sounds to indi-cate that trunk is not fully closed (with the vehicle having reached a speed of 3mph [5km/h])...
-
13 .5When trouble arises3455-...5When trouble arises3455-2. Steps to take in an emergencyWarning message Details Correction procedureIndicates that engine oil level is low.Check the level of engine oil, and add if necessary.(U.S.A. only)Indicates that the engine oil is scheduled to be ch...
-
14 .3465-2. Steps to take in ...3465-2. Steps to take in an emergencyWarning message Details Correction procedureIndicates low tire pres-sure.Check the tire pressure, and adjust to the appropri-ate level.(Flashing)(If equipped)Indicates that the pre-collision system is not currently func...
-
15 .5When trouble arises3475-...5When trouble arises3475-2. Steps to take in an emergencyWarning message Details Correction procedure(Flashing and then con-tinuously on)(If equipped)(Flashing)Indicates that the radar cruise control system is unable to judge vehicle-to-vehicle distance.*S...
-
16 .3485-2. Steps to take in ...3485-2. Steps to take in an emergencyCAUTIONnMaintenance of the tiresEach tire, including the spare (if provided ), should be checked monthly when coldand inflated to the inflation pressure re commended by the vehicle manufacturer onthe vehicle placard or ...
-
17 .5When trouble arises3495-...5When trouble arises3495-2. Steps to take in an emergencyHave the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, checkthat the warning light turns off.InteriorbuzzerExteriorbuzzerWarning message Details...
-
18 .3505-2. Steps to take in ...3505-2. Steps to take in an emergencyInteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce 3 times(For vehicles with an automatic transmission)(Flashing)Indicates that the driver's door has been opened or closed with the shift lever i...
-
19 .5When trouble arises3515-...5When trouble arises3515-2. Steps to take in an emergencyInteriorbuzzerExteriorbuzzerWarning message DetailsCorrection procedureOnce ⎯(For vehicles with an automatic transmission)Indicates that a door has been opened or closed and the engine switch has bee...
-
20 .3525-2. Steps to take in ...3525-2. Steps to take in an emergencyIf you have a flat tireRemove the flat tire and replace it with the spare provided.nBefore jacking up the vehiclelStop the vehicle on a hard, flat surface.lSet the parking brake.lShift the shift lever to P (automatic) o...
-
21 .5When trouble arises3535-...5When trouble arises3535-2. Steps to take in an emergencyTaking out the spare tireLift up the hook of the panel on thetrunk floor.Secure the panel using the hookprovided.Loosen the center fastener thatsecures the spare tire.STEP 1STEP 2STEP 3
-
22 .3545-2. Steps to take in ...3545-2. Steps to take in an emergencyReplacing a flat tireChock the tires.Slightly loosen the wheel nuts (oneturn).Turn the tire jack portion "A" byhand until the notch of the jack is incontact with the jack point.STEP 1Flat tireWheel chock positionsFrontL...
-
23 .5When trouble arises3555-...5When trouble arises3555-2. Steps to take in an emergencyRaise the vehicle until the tire isslightly raised off the ground.Remove all the wheel nuts and thetire.When resting the tire on theground, place the tire so that thewheel design faces up to avoidscr...
-
24 .3565-2. Steps to take in ...3565-2. Steps to take in an emergencyInstall the spare tire and looselytighten each nut by hand toapproximately the same amount.Tighten the wheel nuts until thetapered portion comes into loosecontact with the disc wheel sheet.Lower the vehicle.Firmly tight...
-
25 .5When trouble arises3575-...5When trouble arises3575-2. Steps to take in an emergencynThe compact spare tirelThe compact spare tire is identified by the label TEMPORARY USE ONLY onthe tire sidewall.Use the compact spare tire temporarily only in an emergency.lMake sure to check the t...
-
26 .3585-2. Steps to take in ...3585-2. Steps to take in an emergencyCAUTIONnUsing the tire jackImproper use of the tire jack may lead to death or injuries due to the vehicle sud-denly falling off the jack.lDo not use the tire jack for any purpose ot her than replacing tires or installin...
-
27 .5When trouble arises3595-...5When trouble arises3595-2. Steps to take in an emergencyCAUTIONnWhen using the spare tirelRemember that your spare tire is specifically designed for use with your vehicle.Do not use your spare tire on another vehicle.lDo not use two spare tires simultaneo...
-
28 .3605-2. Steps to take in ...3605-2. Steps to take in an emergencyIf the engine will not startIf the engine will not start, even th ough correct starting procedures arebeing followed (→ P. 94), consider each of the following points.nThe engine will not start even when the starter mot...
-
29 .5When trouble arises3615-...5When trouble arises3615-2. Steps to take in an emergencyIf the shift lever cannot be shifted from PIf the shift lever cannot be shifted with your foot on the brake, there may bea problem with the shift lock system (a system to prevent accidental opera-t...
-
30 .3625-2. Steps to take in ...3625-2. Steps to take in an emergencyIf you lose your keysNew genuine Lexus keys can be made by your Lexus dealer using one ofthe other keys or the key number stamped on your key number plate.
-
31 .5When trouble arises3635-...5When trouble arises3635-2. Steps to take in an emergencyWhen the electronic key battery is dischargedLocking and unlocking the doors, unlocking the trunk and key linked functionsDoorsRemove the cover on the driver'sdoor handle using the mechanicalkey in o...
-
32 .3645-2. Steps to take in ...3645-2. Steps to take in an emergencyStarting the engineFor vehicles with an automatic tr ansmission: Put the shift lever in Pand apply the brakes.For vehicles with a manual transmission: Depress the clutchpedal.Hold the electronic key close tothe engine s...
-
33 .5When trouble arises3655-...5When trouble arises3655-2. Steps to take in an emergencynReplacing the key batteryAs this procedure is the temporary measure, it is recommended that the electronicbattery be replaced immediately. ( →P. 297)
-
34 .3665-2. Steps to take in ...3665-2. Steps to take in an emergencyIf the vehicle battery is dischargedThe following procedures may be used to start the engine if the vehicle'sbattery is discharged.You can call your Lexus dealer, Roadside Assistance or Lexus CustomerService Assistance....
-
35 .5When trouble arises3675-...5When trouble arises3675-2. Steps to take in an emergencynAvoiding a discharged batterylTurn off the headlights and the audio sy stem while the engine is turned off.lTurn off any unnecessary electrical compon ents when the vehicle is running at alow speed ...
-
36 .3685-2. Steps to take in ...3685-2. Steps to take in an emergencyCAUTIONnBattery precautionsThe battery contains poisonous and corrosive acidic electrolyte, while related partscontain lead and lead compounds. Observe the following precautions when han-dling the battery.lWhen working ...
-
37 .5When trouble arises3695-...5When trouble arises3695-2. Steps to take in an emergencyIf your vehicle overheatsIf your engine overheats:Stop the vehicle in a safe place and turn off the automatic airconditioning system.Check to see if steam is coming out from under the hood.If you se...
-
38 .3705-2. Steps to take in ...3705-2. Steps to take in an emergencynOverheatingIf you observe the following, your vehicle may be overheating.lThe engine coolant temperat ure gauge enters the red zone or a loss of power isexperienced.lSteam is coming from under the hood.CAUTIONnTo preve...
-
39 .5When trouble arises3715-...5When trouble arises3715-2. Steps to take in an emergencyIf the vehicle becomes stuckCAUTIONnWhen attempting to free a stuck vehicleIf you choose to rock the vehicle back and forth to free it, make sure the surround-ing area is clear, to avoid striking oth...
