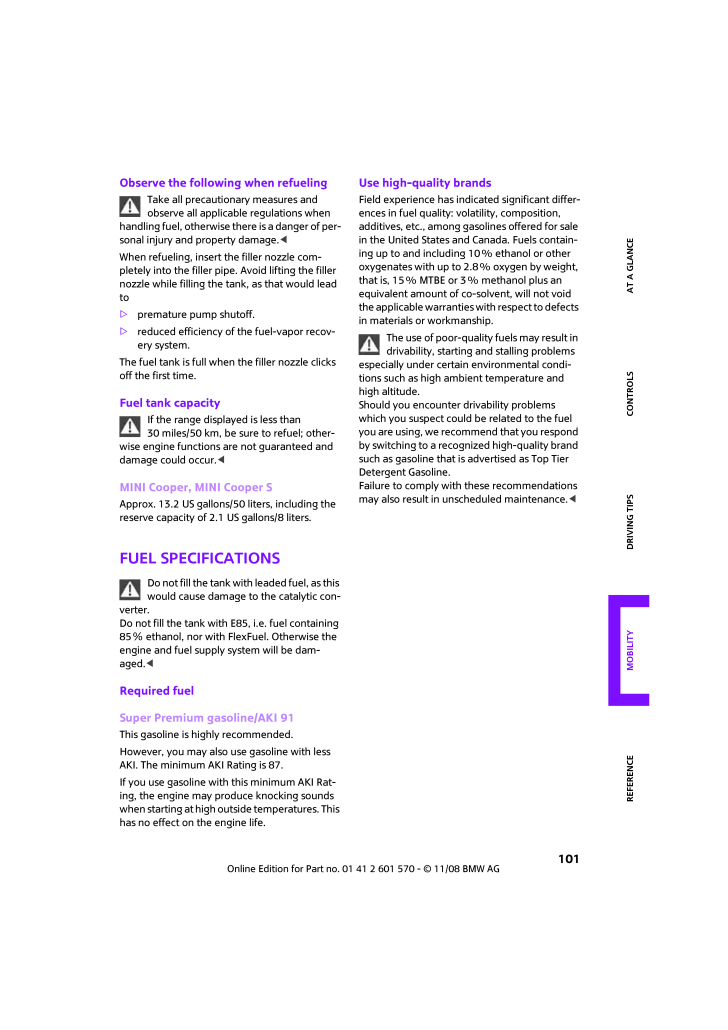

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 101Observe the following when refuelingTake all precautionary measures and observe all applicable regulations when handling fuel, otherwise there is a danger of per-sonal injury and property damage.<When refueling, insert the filler nozzle com-pletely into the filler pipe. Avoid lifting the filler nozzle while filling the tank, as that would lead to>premature pump shutoff.>reduced efficiency of the fuel-vapor recov-ery system.The fuel tank is full when the filler nozzle clicks off the first time.Fuel tank capacityIf the range displayed is less than 30 miles/50 km, be sure to refuel; other-wise engine functions are not guaranteed and damage could occur. <MINI Cooper, MINI Cooper SApprox. 13.2 US gallons/50 liters, including the reserve capacity of 2.1 US gallons/8 liters.Fuel specificationsDo not fill the tank with leaded fuel, as this would cause damage to the catalytic con-verter.Do not fill the tank with E85, i.e. fuel containing 85 % ethanol, nor with FlexFuel. Otherwise the engine and fuel supply system will be dam-aged. <Required fuelSuper Premium gasoline/AKI 91This gasoline is highly recommended.However, you may also use gasoline with less AKI. The minimum AK I Rating is 87.If you use gasoline with this minimum AKI Rat-ing, the engine may produce knocking sounds when starting at high outside temperatures. This has no effect on the engine life.Use high-quality brandsField experience has indicated significant differ-ences in fuel quality: volatility, composition, additives, etc., among ga solines offered for sale in the United States an d Canada. Fuels contain-ing up to and including 10% ethanol or other oxygenates with up to 2.8% oxygen by weight, that is, 15% MTBE or 3% methanol plus an equivalent amount of co-solvent, will not void the applicable warranties with respect to defects in materials or workmanship.The use of poor-quality fuels may result in drivability, starting and stalling problems especially under certain environmental condi-tions such as high ambient temperature and high altitude. Should you encounter drivability problems which you suspect could be related to the fuel you are using, we recommend that you respond by switching to a recognized high-quality brand such as gasoline that is advertised as Top Tier Detergent Gasoline. Failure to comply with these recommendations may also result in unscheduled maintenance.<
参考になったと評価
5人が参考になったと評価しています。
このマニュアルの目次
-
2 .2 ページ目のマニュアル
-
3 .CooperCooper SJohn Cooper...CooperCooper SJohn CooperWorksCongratulations on your new MINIThis Owner's Manual should be co nsidered a permanent part of this vehicle. It should stay with the vehicle when sold to provide the next owner with important operating, safety and mainte-nance ...
-
4 .(C) 2008 Bayerische Motor...(C) 2008 Bayerische Motoren WerkeAktiengesellschaft Munich, GermanyReprinting, including excerpts, only with thewritten consent ofBMW AG, Munich.US English XI/08Printed on environmentally friendly paper,bleached without chlorine , suitable for recycling.
-
5 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 3CONTENTSThe fastest way to find information on a particu-lar topic or item is by using the index, refer to page158 .Using this Owner's Manual4Notes6Reporting safety defectsAT A GLANCE10 CockpitCONTROLS...
-
6 .Notes4NotesUsing this Own...Notes4NotesUsing this Owner's ManualWe have tried to make all the information in this Owner's Manual easy to find. The fastest way to find specific topics is to refer to the detailed index at the back of the manual. If you wish to gain an initial overview ...
-
7 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 5is not carried out properly, there is a danger of subsequent damage and related safety haz-ards.8 .Notes6Reporting safety de...Notes6Reporting safety defectsFor US customersThe following applies only to vehicles owned and operated in the US.If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the Nati...10 .10 ページ目のマニュアル12 .Cockpit10CockpitAround th...Cockpit10CockpitAround the steering wheel: Controls and displays1Adjusting the exterior mirrors, folding them in and out* 382Parking lamps 73Low beams 73Automatic headlamp control* 73Turn signals 47High beams 75Headlamp flasher 47Roadside parking lamps* 75...13 .REFERENCEAT A GLANCE CONT...REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY 113Always Open Timer * 547Ignition lock438Buttons* on steering wheel9Horn: the entire surface10 Adjusting the steering wheel 3911 Releasing the bonnet 1134Tachometer 12Instrument lighting 76Resetting the...14 .Cockpit12Displays1Tachome...Cockpit12Displays1Tachometer52with indicator and warning lamps132Display for>Clock 52>Outside temperature52>Current vehicle speed52>Indicator and warning lamps 133Resetting the trip odometer 524Display for>Position of automatic transmission* 45>Computer* 5...15 .REFERENCEAT A GLANCE CONT...REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY 13Indicator and warning lampsThe conceptIndicator and warning lamps can light up in var-ious combinations and colors in indicator area 1 or2 .Some lamps are checked for proper functioning and thus come o...17 .REFERENCEAT A GLANCE CONT...REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY 151MINI: Microphone for voice processing sys-tem* and for hands-free telephone *MINI Convertible: Microphone in the steering column2Indicator/warning lamp* for front passen-ger airbags 714Hazard warning...18 .18 ページ目のマニュアル20 .Opening and closing18Open...Opening and closing18Opening and closingKeys/remote controlsRemote controlEach remote control co ntains a rechargeable battery that is recharged when it is in the igni-tion lock while the car is being driven. You should therefore use each remote control a...21 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 19Personal Profile settingsFor more information on specific settings, refer to the specified pages.>Response of the cent ral locking system when the car is being unlocked19>Automatic locking of the vehic...22 .Opening and closing201. S...Opening and closing201. Switch on the ignition, refer to page 43 .2. Briefly press the button in the turn indicator lever repeatedly until "SET/INFO" is displayed.3. Press and hold the button until the display changes.4. Briefly press the button repeatedly...23 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 213. Press and hold the button until the display changes.4. Briefly press the button repeatedly until the symbol and "SET" are displayed.5. Press and hold the button until the display changes.6. Briefly ...24 .Opening and closing22Any ...Opening and closing22Any unauthorized modifications or changes to these devices could void the user's authority to operate this equipment.25 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 23Automatic lockingYou can also set the situations in which the car locks. The setting is st ored for the remote con-trol in use.1. Switch on the ignition, refer to page43 .2. Briefly press the button in...26 .Opening and closing24MINI...Opening and closing24MINI ConvertibleThe maximum load that may be placed on the open trunk lid is 175 lbs/80 kg.27 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 25On certain national-market versions, unlocking via the door lock triggers off the alarm.28 .Opening and closing26Conv...Opening and closing26Convenient access*Convenient access enables you to enter your vehicle without having to hold the remote con-trol in your hand. All you need to do is wear the remote control close to your body, e.g. in your jacket pocket. The vehicle au...29 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 27Switching on radio readinessSwitch on radio readiness by briefly pressing the start/stop button, page 43 .Do not depress the brake or the clutch, otherwise the engine will start.30 .Opening and closing28Rais...Opening and closing28Raising>Press the switch backward to the resistance point and hold it there.Both glass sunroofs are raised.Releasing the switch stops the movement.>With the ignition switched on, press the switch backward beyond the resistance point.B...31 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 29Electric power windowsinitializingIf the battery was disconnected, e.g. for changing batteries or vehicle storage, reinitialize the power window switch, otherwise the windows will not be lowered . MINI...32 .Opening and closing30Open...Opening and closing30Opening and closing the sliding sunroofTo open:Press the switch backward until the desired posi-tion or the end position is reached.To close:Press the switch forward.The sliding sunroof can be operated up to a road speed of 74 mph / 1...33 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 31Opening and closing the convertible topTo open:Press the switch backward in order to open the sliding/tilting sunroof. Pressing the button again opens the convertible top.To close:Press the switch forw...34 .Opening and closing32Manu...Opening and closing32Manual closing in the event of an electrical malfunctionOnly close the convertible top manually if it is absolutely necessary. Never open it manually. Improper handling of the convertible top can result in damage . The closing procedur...35 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 33To lock the convertible topTurn hexagon wrench in the opposite direction of arrow 2 until the convertible top is securely locked.Please contact your MINI Dealer to have the electrical malfunction rep...36 .Adjustments34AdjustmentsS...Adjustments34AdjustmentsSitting safelyThe ideal sitting position can make a vital contri-bution to relaxed, fatigue-free driving. In con-junction with the safety belts, the head restraints and the airbags, the seated position has a major influence on your ...37 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 35vehicle is being driven, otherwise there is a dan-ger in the event of an accident of sliding under the safety belt, eliminating the protection nor-mally provided by the belt.38 .Adjustments361. Pull up t...Adjustments361. Pull up the lever on the seat backrest, arrow 1 .The backrest folds forward.2. Move the seat forward by pushing on the backrest, arrow 2 .Previous position1. Push the seat back into its previous position.Do not fold the backrest up until th...39 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 37Rear1. Pull up as far as it will go.2. Press button 1 and pull the head restraint out completely.Seat heating*Switching onPress once for each temperature level. Three LEDs indicate the highest temper...40 .Adjustments38reminder is ...Adjustments38reminder is also activated at road speeds above approx. 5 mph or 8 km/h if the front passenger's safety belt has not been fastened, if objects are placed on the front passenger seat, or if driver or front passenger unfasten their safety belts...41 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 39In order to ensure that the system functions cor-rectly, keep the photo cells clean, do not cover the area between the interior rearview mirror and windshield, and do not affix adhesive labels or stick...42 .Transporting children saf...Transporting children safely40Transporting children safelyThe right place for childrenDo not leave children unattended in the vehicle, otherwise they could endanger themselves and/or other persons by opening the doors, for example.43 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 41LATCH child-restraint fixing systemLATCH: Lower Anchors and Tethers for CHildren.To install and use the LATCH child-restraint system, follow the operating and safety instructions provided by the manufa...44 .Transporting children saf...Transporting children safely42MINI Convertible1Direction of travel2Head restraint3Rollover protection system4Tether strap hook5Cargo bay floor6Anchor7Seat backrest8Tether strap of the child-restraint system1. Push the head restraint upward.2. Unlock backre...45 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 43DrivingIgnition lockInserting the key into the ignition lockInsert the key all the way into the ignition lock.Radio readinessIndividual electrical consumers can operate.Removing the key from the igniti...46 .Driving44Starting the eng...Driving44Starting the engineDo not allow the engine to run in enclosed spaces; otherwise inhalation of the nox-ious exhaust gases can lead to unconsciousness and death. Exhaust gases contain carbon mon-oxide, an odorless and colo rless, but highly toxic ga...47 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 45Parking brakeThe parking brake is primarily intended to pre-vent the vehicle from rolling while parked; it brakes the rear wheels.ApplyingThe lever locks in position automatically.ReleasingPull slightl...48 .Driving46Changing selecto...Driving46Changing selector lever positions>The selector lever can only be moved out of position P if the ignition is switched on or the engine is running: interlock.>Before moving the lever away from P or N with the vehicle stationary, first depress the b...49 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 47If you do not shift gears with the shift paddles or accelerate for a certain amount of time, the transmission automatically returns to D, auto-matic drive.>Pull one of the shift paddles.Transmission ...50 .Driving481. Switch on the...Driving481. Switch on the ignition, refer to page 43 .2. Briefly press the button in the turn indicator lever repeatedly until "SET/INFO" is dis-played.3. Press and hold the button until the display changes.4. Briefly press the button repeatedly until the ...51 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 49Intermittent wipe or rain sensor*If the car is not equipped with a rain sensor, the intermittent-wipe time is preset.If the car is equipped with a rain sensor, the time between wipes is controlled aut...52 .Driving50Window washer no...Driving50Window washer nozzlesThe window washer nozzles are heated auto-matically* while the engine is running or the ignition is switched on.MINI: Rear window wiper0Rear wipers parked1To switch on intermittent wipe :Turn the cap to level1 .Operation is c...53 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 51Activating1Resuming cruise control2Activating/deactivating cruise control3Maintaining, storing and increasing speed4Maintaining, storing and decreasing speedIndicator lamp in the speedometer lights up....54 .Everything under control5...Everything under control52Everything under controlOdometer, outside temperature display, clock1Outside temperature display and clock or current speed2Odometer and trip odometer3Resetting the trip odometerUnits of measureSelect the respective units of measu...55 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 53Fuel gaugeFuel tank capacityYou can find information on refueling on page101 .If the tilt of the vehicle varies for a longer period, when you are driving in mountainous areas, for example, the indicato...56 .Everything under control5...Everything under control54Current fuel consumptionDisplays the current fuel consumption to allow you to see whether your current driving style is conducive to fuel economy with minimum exhaust emissions.Average speedPeriods with the vehicle parked and the ...57 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 55Settings and informationOperating principleCertain settings and information are only avail-able when the ignition is switched on, the vehi-cle is at a standstill and the doors are closed.1Button for:>...58 .Everything under control5...Everything under control56Exiting displays1. Briefly press the button in the turn indicator lever repeatedly until "HOME" is displayed.2. Press the button for a longer period.The display again shows the outside tempera-ture and the time.Displays are also e...59 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 578. Press the button briefly to change the for-mat or unit of measure.9. Press and hold the button until the display changes.The settings are stored.Resetting to factory settingsThe settings for formats...60 .Everything under control5...Everything under control581. Switch on the ignition, refer to page 43 .2. Briefly press the button in the turn indicator lever repeatedly until "SET/INFO" is dis-played.3. Press and hold the button until the display changes.4. Briefly press the button repe...61 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 59More information on the MINI Maintenance Sys-tem can be found on page117 .ClockSetting the timeTo set the 12h/24h mode, refer to Formats and units of measure on page56 .1. Briefly press the button in t...62 .Everything under control6Everything under control606. Wait for the display to change to month.7. Set the month and year in the same way.8. Wait for the display to change.The settings are stored.Check ControlThe conceptThe Check Control monitors vehicle functions and alerts you to ...63 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 613. Press the button repeatedly until the display shows the corresponding symbol and "CHECK INFO".4. Hold the button down."CHECK OK" appears if there are no Check Control messages.If a Check Control mes...64 .Technology for driving co...Technology for driving comfort and safety62Technology for driving comfort and safetyPark Distance Control PDC*The conceptPDC assists you with parking backwards. Acous-tic signals warn you of the presence of an object behind the vehicle. To measure the dist...65 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 63Antilock Brake System ABSABS prevents locking of the wheels during brak-ing. Safe steering respon se is maintained even during full braking. Active safety is thus increased.Braking safely, refer to pag...66 .Technology for driving co...Technology for driving comfort and safety64In the following exceptional situations, it can be useful to briefly activate DTC:>when driving on snow-covered inclines, in slush, or on uncleared snowy roads>when rocking the vehicle free, driving out of deep sn...67 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 65Activating the systemPress the SPORT button.The LED lights up.SPORT is briefly displayed in the tachometer.Deactivating the system>Press the SPORT button again.>Switch off the engine.Flat Tire Monitor ...68 .Technology for driving co...Technology for driving comfort and safety665. Press and hold the button until the display changes.6. Start driving.Initialization is completed while the car is on the move, without any feedback.Indication of a flat tireThe warning lamps come on in yellow a...69 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 67Functional requirementIn order to assure the rel iable reporting of a flat tire, the system must be reset while all tire infla-tion pressures are correct.Always use wheels with TPM electronics. Other-w...70 .Technology for driving co...Technology for driving comfort and safety681. Reduce speed and stop the vehicle with cau-tion. Avoid sudden braking and steering maneuvers.2. Check whether your vehicle is equipped with normal tires or Run-Flat Tires.The symbol identifying Run-Flat Tires i...71 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 69Declaration according to NHTSA/FMVSS 138 Tire Pressure Monitoring SystemsEach tire, including the spare, should be checked monthly when cold and inflated to the inflation pressure recommended by the ve...72 .Technology for driving co...Technology for driving comfort and safety70AirbagsThe following airbags are located under the marked covers:MINI:1Front airbags2Side airbags in backrests3Head airbags at the front and rearMINI Convertible:1Front airbags2Side/head airbags in the backrestsPr...73 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 71Automatic deactivation of the front passenger airbagsAn analysis of the impression in the front pas-senger seat cushion de termines whether and how the seat is occupied. The front and side air-bags for...74 .Technology for driving co...Technology for driving comfort and safety72Operational readiness of airbag systemAs of radio readiness, page43 , the warning lamp comes on briefly to indicate that the entire airbag system and the belt tensioners are oper-ational.Airbag system malfunction>...75 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 73LampsParking lamps/low beams0Lamps off and daytime running lamps1Parking lamps and daytime running lamps2Low-beam headlamps and welcome lamps3Automatic headlamp control*, daytime run-ning lamps and wel...76 .Lamps74Setting the durati...Lamps74Setting the duration or deactivating the function1. Switch on the ignition, refer to page 43 .2. Briefly press the button in the turn indicator lever repeatedly until "SET/INFO" is dis-played.3. Press and hold the button until the display changes.4....77 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 754. Briefly press the button repeatedly until the symbol and "SET" are displayed.5. Press and hold the button until the display changes.6. Briefly press the button repeatedly until the display shows the...78 .Lamps76Fog lamps*MINI1Fog...Lamps76Fog lamps*MINI1Fog lamps *2Rear fog lamp *Press the respective swit ch to turn the lamps on/off.MINI Convertible>Turn on fog lamps:Press the button upwards.>Turn on rear fog lamp:Press the button downwards.When turning the lamps off, push the respec...79 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 77Switching interior lamps on/off manuallyTo switch the interior lamps on/off.Press the switch.To switch off the interior lamps permanently, press the button for about 3 seconds.Reading lamps*To switch t...80 .Climate78ClimateEquipment...Climate78ClimateEquipment versionsDepending on your vehicle's equipment, your MINI contains an air conditioner or an automatic climate control*.1Air conditioner2Automatic climate control*Air vents3Airflow directed toward the windshield and side windows4Air...81 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 79Air conditioner1Air flow rate2Cooling function3Recirculated-air mode4Temperature5Rear window defroster6Air distribution7Windshield heating*Air flow rateAdjust the air flow rate. The higher the rate, th...82 .Climate80Air distribution...Climate80Air distributionDirect the flow of air to the win-dows , to the upper body area or to the footwell . Interme-diate settings are possible.Windshield heating*The windshield heating is switched off automatically after a short time.Defrosting windo...83 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 81Air flow rate, manualPress the - button to reduce air flow. Press the + button to increase it.You can reactivate the automatic mode for the air flow rate with the AUTO button.The air flow rate is lower...84 .Climate82TemperatureSet t...Climate82TemperatureSet the desired temperature individually.The automatic climate control achieves this temperature as quickly as possible regardless of the season, using maximum cooling or heating power if necessary, and then maintains it.If you switch ...85 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 83Practical interior accessoriesIntegrated universal remote control*The conceptThe integrated universa l remote control can replace as many as three hand-held transmitters for various remote-controlled d...86 .Practical interior access...Practical interior accessories84The corresponding memory button 1 is now programmed with the signal of the original hand-held transmitter.You can operate the system with the engine running or with the ignition switched on.If the system fails to function...87 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 85Glove compartmentOpeningPress the button to open the cover. The light in the glove compartment comes on.ClosingFold cover up.To prevent injury in the event of an acci-dent, close the glove compartment ...88 .Practical interior access...Practical interior accessories86Connecting via the USB audio interface1Connection for audio playback:TRS connector 1/8 in/3.5 mm2USB interface*iPod/iPhoneTo connect the iPod/iPhone, use the cable adapter for the Apple iPod.For additional informatio n, cont...89 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 87Clothes hooksThere are clothes hooks on the grab handles in the rear passenger compartment.Items of clothing hung from the hooks must not obstruct the driver's view. Do not hang heavy objects from the ...90 .90 ページ目のマニュアル92 .Things to remember when d...Things to remember when driving90Things to remember when drivingBreak-in periodMoving parts need breaking-in time to adjust to each other. Please follow the instructions below in order to achieve the optimal service life and economy of operation for your v...93 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 91The risk of hydroplaning increases with declining tread depth on the tires, refer also to Tread depth on page 110 .Driving through waterDrive through water on the road only if it is not deeper than 1 f...94 .Things to remember when d...Things to remember when driving92With convenient access and automatic transmissionInsert the key into the ignition lock.The engine can be switched off when the selec-tor lever is in position N. Refer also to page 27 .Cargo loadingTo avoid loading the tire...95 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 93MINI Convertible: Luggage compartmentDo not place any objects on the luggage compartment roll-up cover, as it may damage the cover or the convertible top.96 .Things to remember when d...Things to remember when driving94Determining cargo limit1. Locate the following statement on your vehicle's placard*:The combined weight of occupants and cargo should never exceed XXX kg or YYY lbs. Otherwise, overloading can result in damage to the vehicl...97 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 95MINI ConvertibleSecuring cargo>Secure smaller and lighter items using retaining or draw straps*.>Heavy-duty cargo straps* for securing larger and heavier objects are available at your MINI Dealer. Fou...98 .Things to remember when d...Things to remember when driving96Rear luggage rack*A specially designed rear luggage rack is avail-able for your MINI/MINI C onvertible as optional accessory. Please read the in info rmation pro-vided in the assembly instructions.Mounting pointsThe mountin...99 .REFERENCE AT A GLANCE CON...REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 97Switch off the engine during lengthy stopsSwitch off the engine when stopping for lengthy periods, e.g. at traffic li ghts, railroad crossings or in traffic congestions.Have the vehicle servicedHave yo...100 .100 ページ目のマニュアルログイン
