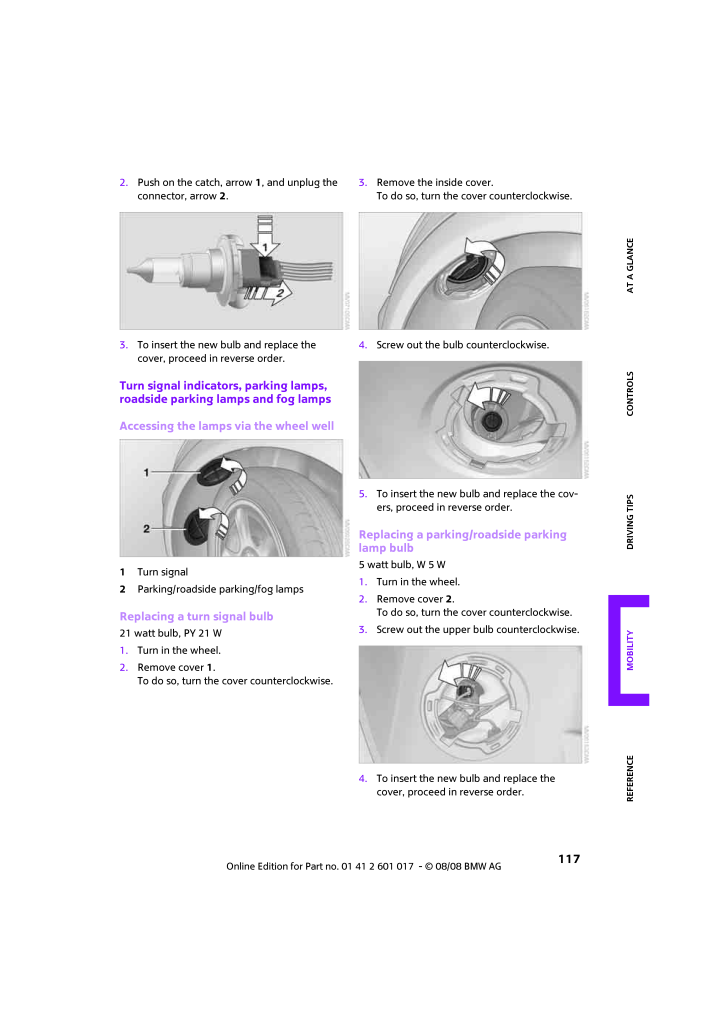

REFERENCE AT A GLANCE CONTROLS DRIVING TIPS MOBILITY 1172.Push on the catch, arrow 1, and unplug the connector, arrow2.3.To insert the new bulb and replace the cover, proceed in reverse order.Turn signal indicators, parking lamps, roadside parking lamps and fog lampsAccessing the lamps via the wheel well1Turn signal2Parking/roadside parking/fog lampsReplacing a turn signal bulb21 watt bulb, PY 21 W1.Turn in the wheel.2.Remove cover 1.To do so, turn the cover counterclockwise.3.Remove the inside cover.To do so, turn the cover counterclockwise.4.Screw out the bulb counterclockwise.5.To insert the new bulb and replace the cov-ers, proceed in reverse order.Replacing a parking/roadside parking lamp bulb5watt bulb, W5W1.Turn in the wheel.2.Remove cover 2.To do so, turn the cover counterclockwise.3.Screw out the upper bulb counterclockwise.4.To insert the new bulb and replace the cover, proceed in reverse order.
