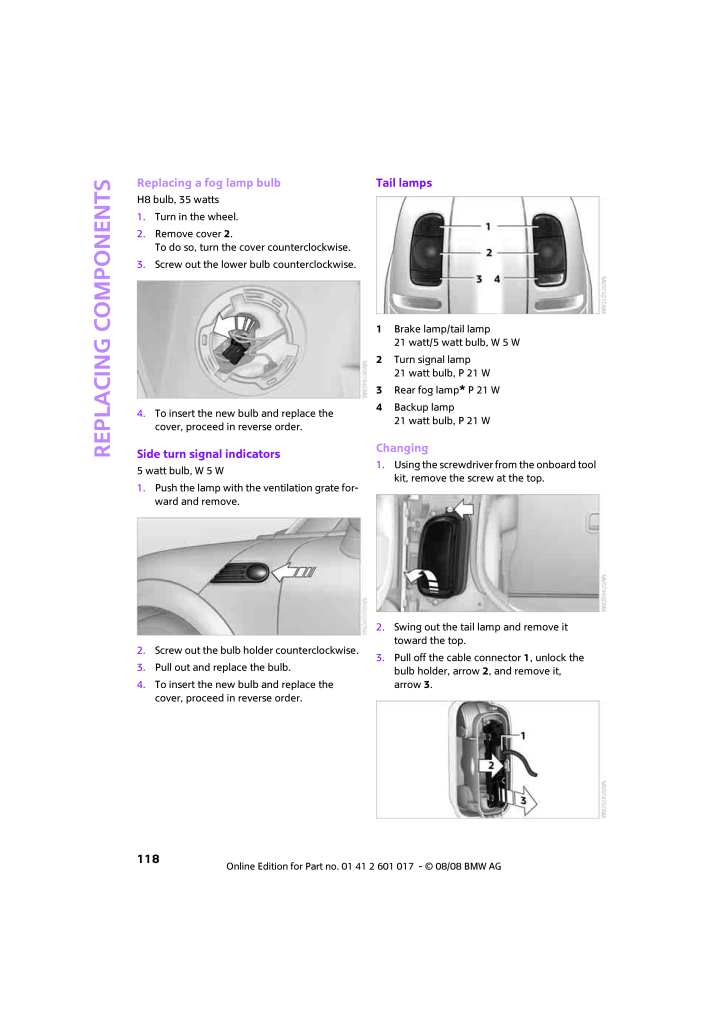

Replacing components118Replacing a fog lamp bulbH8 bulb, 35 watts1.Turn in the wheel.2.Remove cover 2.To do so, turn the cover counterclockwise.3.Screw out the lower bulb counterclockwise.4.To insert the new bulb and replace the cover, proceed in reverse order.Side turn signal indicators5 watt bulb, W 5 W1.Push the lamp with the ventilation grate for-ward and remove.2.Screw out the bulb holder counterclockwise.3.Pull out and replace the bulb.4.To insert the new bulb and replace the cover, proceed in reverse order.Tail lamps1Brake lamp/tail lamp21 watt/5 watt bulb, W 5 W2Turn signal lamp21 watt bulb, P 21 W3Rear fog lamp* P 21 W4Backup lamp21 watt bulb, P 21 WChanging1.Using the screwdriver from the onboard tool kit, remove the screw at the top.2.Swing out the tail lamp and remove it toward the top.3.Pull off the cable connector 1, unlock the bulb holder, arrow 2, and remove it, arrow3.
