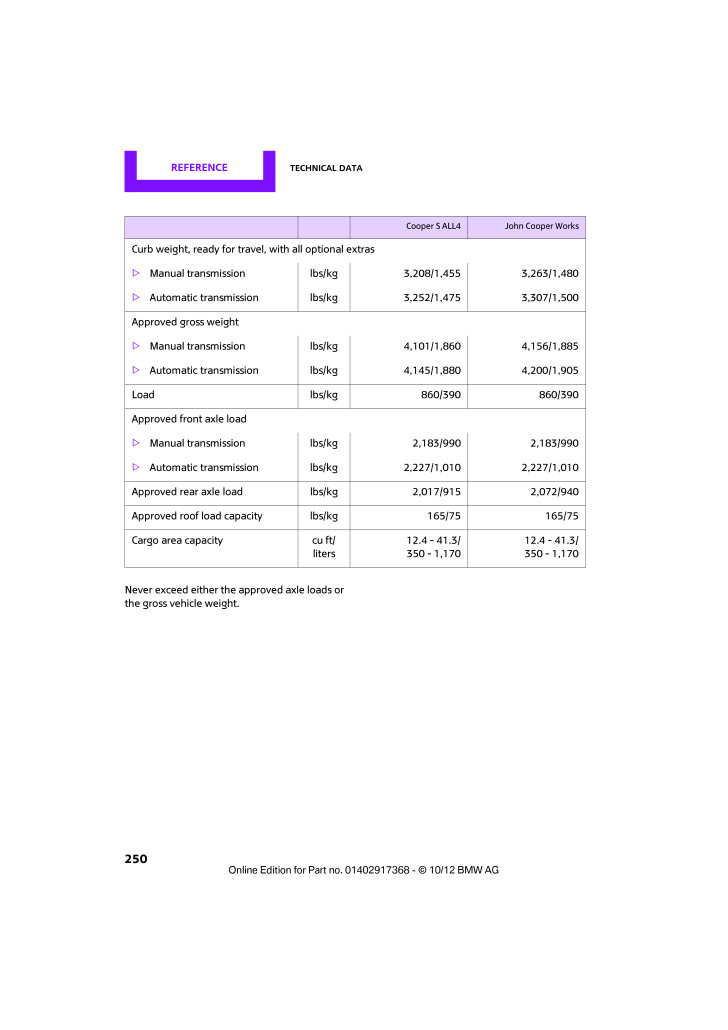

REFERENCE Technical data250Never exceed either the approved axle loads or the gross vehicle weight.Cooper S ALL4 John Cooper WorksCurb weight, ready for travel , with all optional extras>Manual transmission lbs/kg 3,208/1,455 3,263/1,480>Automatic transmission lbs/kg 3,252/1,475 3,307/1,500Approved gross weight>Manual transmission lbs/kg 4,101/1,860 4,156/1,885>Automatic transmission lbs/kg 4,145/1,880 4,200/1,905Load lbs/kg 860/390 860/390Approved front axle load >Manual transmission lbs/kg 2,183/990 2,183/990>Automatic transmission lbs/kg 2,227/1,010 2,227/1,010Approved rear axle load lbs/kg 2,017/915 2,072/940Approved roof load ca pacity lbs/kg 165/75 165/75Cargo area capacity cu ft/liters12.4 - 41.3/350 - 1,17012.4 - 41.3/350 - 1,170
