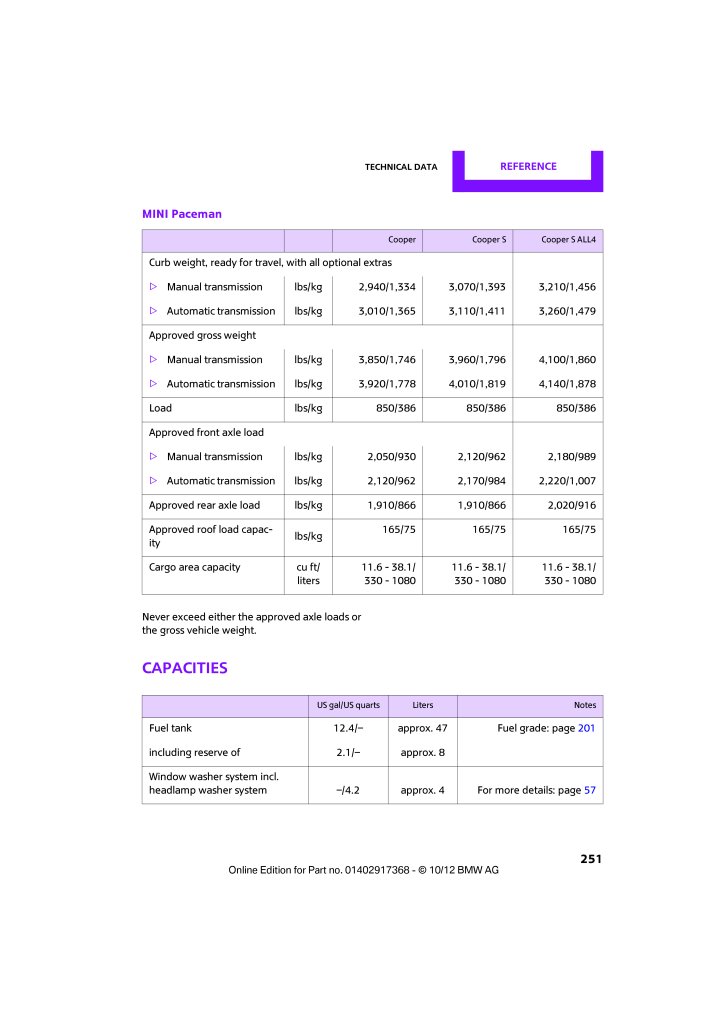

Technical data REFERENCE 251MINI PacemanNever exceed either the approved axle loads or the gross vehicle weight.CapacitiesCooper Cooper S Cooper S ALL4Curb weight, ready for travel , with all optional extras>Manual transmission lbs/kg 2,940/1,334 3,070/1,393 3,210/1,456>Automatic transmission lbs/ kg 3,010/1,365 3,110/1,411 3,260/1,479Approved gross weight>Manual transmission lbs/kg 3,850/1,746 3,960/1,796 4,100/1,860>Automatic transmission lbs/ kg 3,920/1,778 4,010/1,819 4,140/1,878Load lbs/kg 850/386 850/386 850/386Approved front axle load >Manual transmission lbs/ kg 2,050/930 2,120/962 2,180/989>Automatic transmission lbs/ kg 2,120/962 2,170/984 2,220/1,007Approved rear axle load lbs/kg 1,910/866 1,910/866 2,020/916Approved roof load capac-itylbs/kg165/75 165/75 165/75Cargo area capacity cu ft/liters11.6 - 38.1/330 - 108011.6 - 38.1/330 - 108011.6 - 38.1/330 - 1080US gal/US quarts Liters NotesFuel tank 12.4/- approx. 47 Fuel grade: page 201including reserve of 2.1/- approx. 8Window washer system incl. headlamp washer system -/4.2 approx. 4 For more details: page 57
