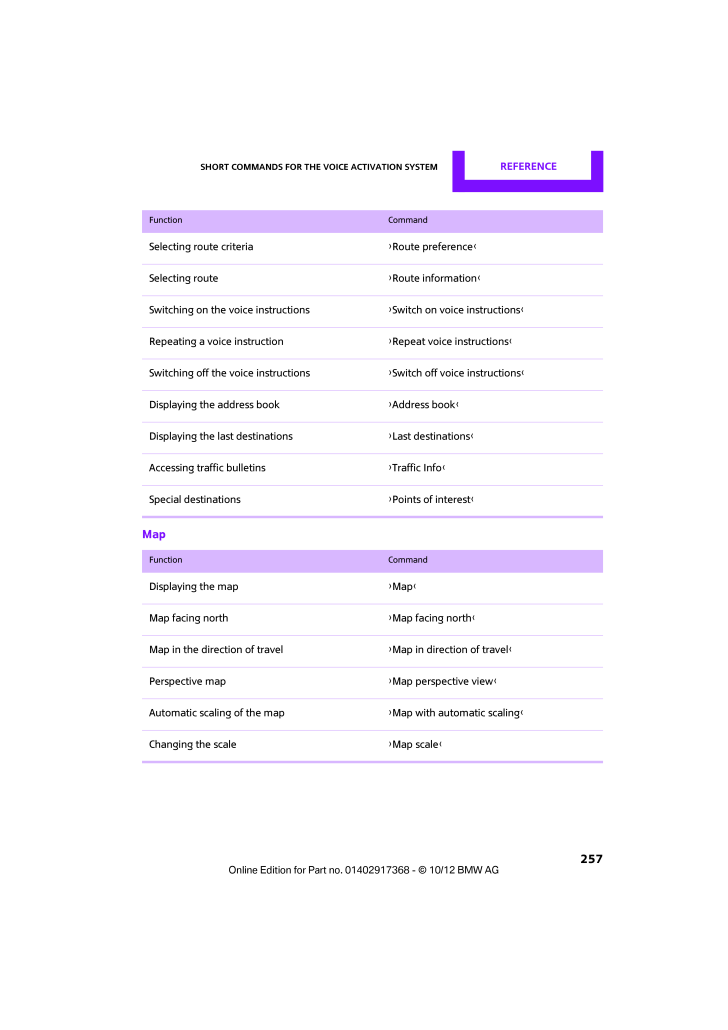

Short commands for the voice activation system REFERENCE 257MapSelecting route criteria {Route preference}Selecting route {Route information}Switching on the voice instructions {Switch on voice instructions }Repeating a voice instruction {Repeat voice instructions }Switching off the voice instructions {Switch off voice instructions }Displaying the address book {Address book}Displaying the last destinations {Last destinations}Accessing traffic bulletins {Traffic Info}Special destinations {Points of interest}Function CommandFunction CommandDisplaying the map {Map}Map facing north {Map facing north}Map in the direction of travel {Map in direction of travel }Perspective map {Map perspective view }Automatic scaling of the map {Map with automatic scaling }Changing the scale {Map scale}
