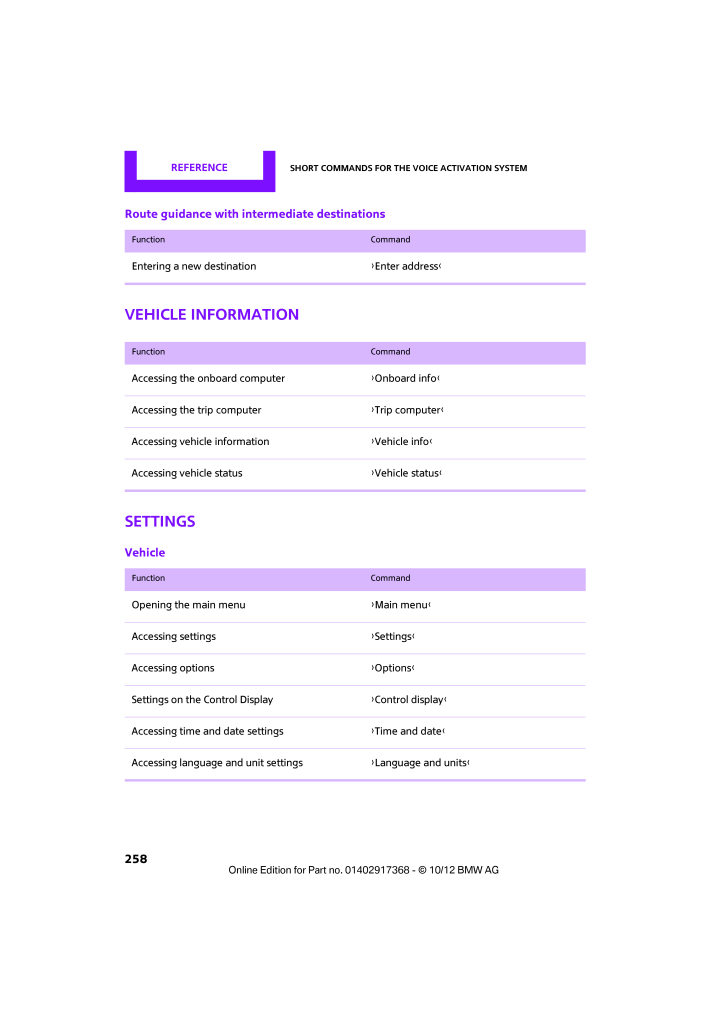

REFERENCE Short commands for the voice activation system258Route guidance with in termediate destinationsVehicle informationSettingsVehicleFunction CommandEntering a new destination {Enter address}Function CommandAccessing the onboard computer {Onboard info}Accessing the trip computer {Trip computer}Accessing vehicle information {Vehicle info}Accessing vehicle status {Vehicle status}Function CommandOpening the main menu {Main menu}Accessing settings {Settings}Accessing options {Options}Settings on the Control Display {Control display}Accessing time and date settings {Time and date}Accessing language and unit settings {Language and units }
